Guang Zhou Jian Xiang Machinery Co. LTD

|
| Place of Origin: | China |
| Brand Name: | Gonghexiang |
| Certification: | ISO |
| Model Number: | WH23-5 |
| Minimum Order Quantity: | 1 |
|---|
| Model: | WH23-5 | Power: | 2.25KW |
|---|---|---|---|
| Compressed Air Pressure: | 0.6MPa | Gas Consumption Of Liquefied Gas: | 10-12kg/h |
| Molds: | 23 | Capacity: | 3000-3500pcs/h |
| Product Specifications: | 110-115mm | Feature: | Stable Performance |
| Material: | Stain Steel | ||
| High Light: | 5000pcs/H Waffle Cone Making Machine,Waffle Cone Making Machine Space Saving |
||
5000pcs/H Crispy Waffle Cone Making Machine Corn Cone Maker Space Saving
Space saving 5000pcs/h Crispy Waffle Cone Making Machine Corn Cone Maker
Full Automatic crispy cone wafer machine corn cone machine

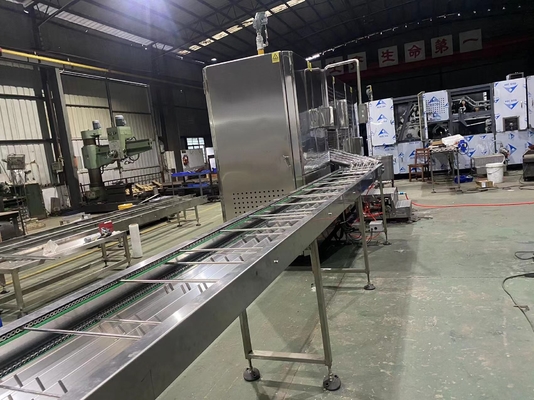

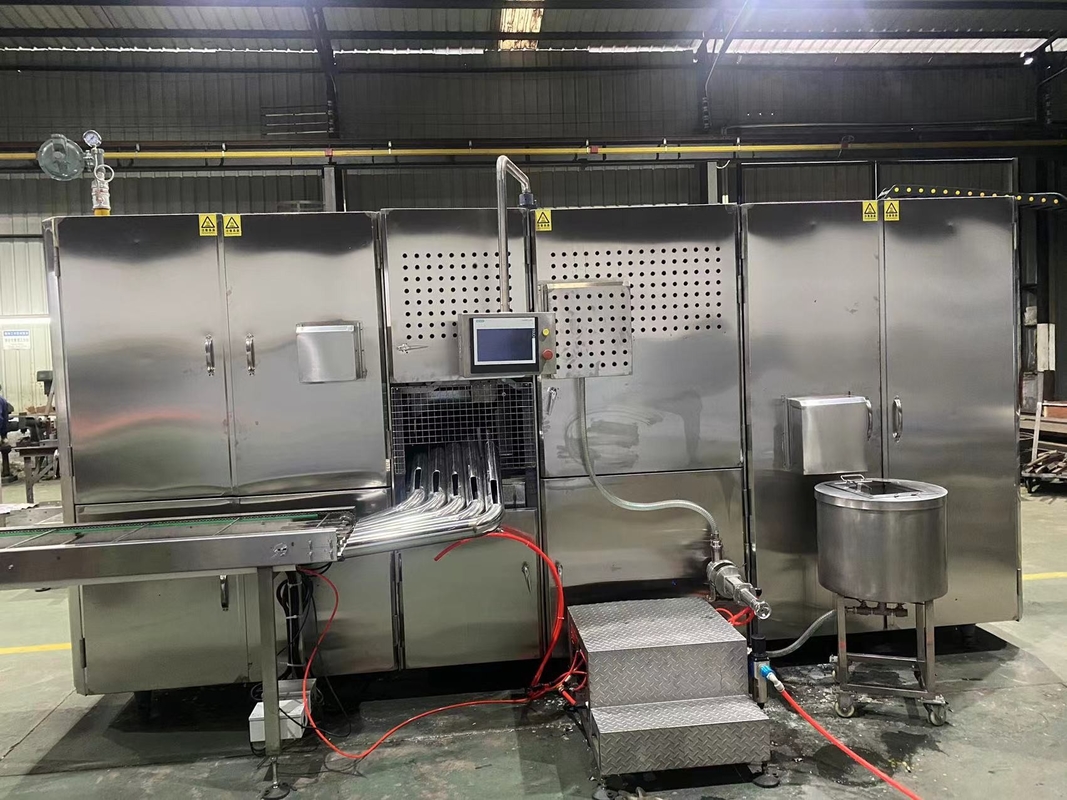

Working principle: Automatic wafer roaster is composed of electric control system, sizing system, automatic opening and closing mold, gas system, etc. It is a kind of food machinery equipment for the production of ice cream wafer, which can be made into different shapes and styles by different molds through continuous operations such as sizing, baking, line, stripping, conveying and stacking.
The machine adopts PLC control, automatic ignition, acceleration and deceleration, automatic demoulding device stacking, greatly reducing the work intensity of personnel, improve the work efficiency
Model: WH23-5
Total power (kw): 2.25
Compressed air pressure (MPa): 0.6
Gas consumption of liquefied gas(kg/h): 10-12
Number of molds (pcs): 23
Product specification (mm): 100-115 as shown
Output (pcs/h): 3000-3500
Conveyor :5 slots
Machines can be customized according to customer product samples
