Guang Zhou Jian Xiang Machinery Co. LTD

|
| Place of Origin: | China |
| Brand Name: | Gonghexiang |
| Certification: | ISO |
| Model Number: | WH23-5 |
| Minimum Order Quantity: | 1 |
|---|
| Product Name: | Waffle Cone Making Machine | Model: | WH23-5 |
|---|---|---|---|
| Power: | 2.25KW | Compressed Air Pressure: | 0.6MPa |
| Gas Consumption Of Liquefied Gas: | 10-12kg/h | Molds: | 23 |
| Capacity: | 3000-3500pcs/h | Product Specifications: | 110-115mm |
| Material: | Stain Steel | Warranty: | 1 Year |
| Feature: | Stable Performance |
5000pcs/H Crispy Waffle Cone Making Machine Corn Cone Maker Space Saving
Space saving 5000pcs/h Crispy Waffle Cone Making Machine Corn Cone Maker
Full Automatic crispy cone wafer machine corn cone machine

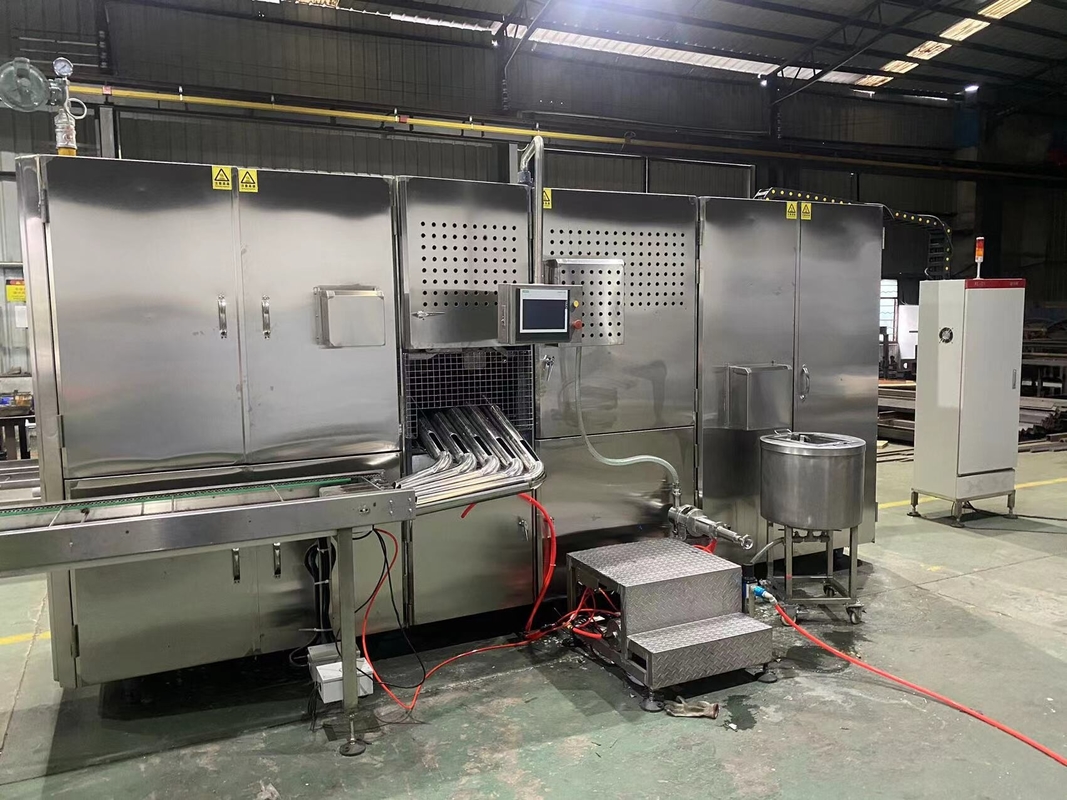

Working principle: The fully automatic wafer cone baking machine is composed of an electrical control system, a sizing system, an automatic opening and closing mold, a gas system, etc. It is a food machinery and equipment for producing ice cream wafer cones. It can be made into different The molds are formed into different shapes and styles through the continuous operations of sizing, baking, forming rows, demoulding, conveying and stacking.
The machine adopts PLC control, automatic ignition, acceleration and deceleration, and automatic stacking of demoulding devices, which greatly reduces the work intensity of personnel and improves work efficiency.
Model: WH23-5
Total power (kw): 2.25
Compressed air pressure (MPa): 0.6
Gas consumption of liquefied gas(kg/h): 10-12
Number of molds (pcs): 23
Product specification (mm): 100-115 as shown
Output (pcs/h): 3000-3500
Conveyor :5 slots
Machines can be customized according to customer product samples
