TT25 Waffle Cone Making Machine L3.2xW2.7xH2.1M With 0.6MPa Compressed Air Pressure

TT25 Waffle Cone Making Machine L3.2xW2.7xH2.1M With 0.6MPa Compressed Air Pressure

  • TT25 Waffle Cone Making Machine L3.2xW2.7xH2.1M With 0.6MPa Compressed Air Pressure
TT25 Waffle Cone Making Machine L3.2xW2.7xH2.1M With 0.6MPa Compressed Air Pressure
Product Details:
Place of Origin: China
Brand Name: 公禾祥
Certification: ISO
Model Number: TT25
Payment & Shipping Terms:
Minimum Order Quantity: 1PS
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Features: Automatic VoltagE: 380V
Dimension: L3.2xW2.7xH2.1M Input Power: 1.5kw
Gas Consumption: 4Kg/h (4.2m³/h) Compressed Air Pressure: 0.6MPa
Net Weight: 3000Kg Raw Material: Milk, Wheat, Water, Flour
Application Fields: Snack Food Factory, Beverage Factory After-sales Service Provided: Field Installation, Commissioning And Training
Application: Snack Food Of Cracker Biscuit, Wafer Bread Warranty: One Year
Power Source: Gas Type: Ice Cone Making Machine And Production Line
Key Words: Ice Cream Cone Machine Manufacturers
High Light:

ice cream waffle cone machine

,

waffle cone roller equipment

TT25 Waffle Cone Making Machine L3.2xW2.7xH2.1M With 0.6MPa Compressed Air Pressure

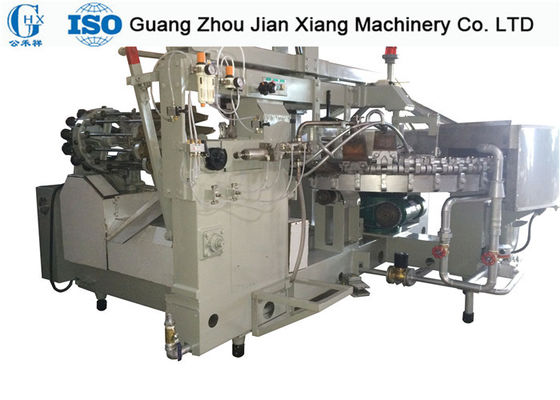

TT25 series automatic baking machine is used for rolling sugar cones.

It offers cones to the next process to be filled with ice cream. First it dispenses batter on the baking plates to prepare the wafers for shaping, and then rolls them up, keep them in shape unload them finally. It is the main device of the production line. Excellent performances have allowed Intentional Standards to be comfortably met.





Model TT25
Voltage 380V
Total Power 1.5Kw
Gas consumption 4Kg/h (4.2m³/h)
Compressed air pressure 0.6MPa
Weight 3000Kg
Dimension of machine (mm) 3200*2700*1900
Product dimension (22.5degree) Diameter 42-48mm
Length 100-115mm
Capacity 2500pieces/h
Product dimension (17.5degree) Diameter 38-44mm
Length 110-125mm
  Capacity 2500pieces/h





Model No.   Gas type
  TT25 TT25-40 TT25-36 TT25-30
Voltage   380V 380V 380V 380V
Power   1.5Kw 1.5Kw 1.5Kw 1.5Kw
Gas consumption   4Kg/h (4.2m³/h) 4Kg/h (4.2m³/h) 5Kg/h (5.5m³/h) 5Kg/h (5.5m³/h)
compressed air pressure   0.6MPa 0.6MPa 0.6MPa 0.6MPa
Total weight   3000Kg 3000Kg 3000Kg 3000Kg
Dimension(mm)   3200x2700x1900 3200x2700x1900 3200*2700*1900 3200x2700x1900
Cone size(22.5°) Capacity 2300-2500pcs/h 2200-2400pcs/h 2000-2200pcs/h 1500-2000pcs/h
Cone size(17.5°) Capacity 2500pcs/h / / /




Our Services
♥. Pre-sale-service:Design and manufacture machines for you as your special requirement, provide you with project, process design and pruchase program.

♥. On-sale-service: Accompany with you to look around our factory, explain the manufacture process of our machines and check the working performance of our machine.

♥. After-sale-service: Engineers are available to install debugging equipments of the whole production line, besides, commissioning and training operators on site.

After Sale Service

1. Warranty policy one year from shipment
2. We will send you the replacement after received the broken part
3. Evaluate the customs rish and choose safest shipping company before shipping.

4. Follow status up time by time until the goods arrived.


Company Profile
TT25 Waffle Cone Making Machine L3.2xW2.7xH2.1M With 0.6MPa Compressed Air Pressure 0
      Guangzhou Jianxiang Machinery Co., Ltd. has more than 20 years of experience in the production of mechanical products. Now the company has strong technical force, advanced equipment and normative management after many years of struggle and technology accumulation. Our business partner Guangzhou GongHeXiang Machinery Co., Ltd, is the most famous automatic sugar cone baking machine manufacturer in China. The sugar cone baking machine and batter mixer we produce for GongHeXiang had been sold to over 20 provinces in China and exported to many oversea countries like Russia, Kyrgyzstan, Uzbekistan, Turkey, Argentina, Vietnam, Syria, French Polynesia, Egypt, Peru, India etc.

In order to meet market needs and customer’s demand, besides the most regular TT25 sugar cone baking machine, we developed new model TT25-40, TT25-36 and TT25-30 of the TT25 series. TT26 series are electric baking machine which include model TT26-45, TT26-40, TT26-36 and TT26-30. SD80 series are the most advanced caterpillar track type baking machine, which include model SD80-37x2 and model SD80-53x2.

Different machine can meet your different requirement for sugar cone size and your demand for production capacity. After so many years of development, our company had truly become the most professional sugar cone baking machine manufacturer in China.

Customer first, quality first and user-oriented is key to our service. Our company always provide customer with high quality product and good service and we will constantly strive for excellence. We believe our reasonable offer and thoughtful after-sales service can allow users achieve a real “buy peace of mind was at ease with”. We warmly welcome both new and current customer to call for further inquiry or to come and discuss cooperation.
