2.25kw 5000pcs/H Waffle Cone Making Machine 5 Slots Conveyor

2.25kw 5000pcs/H Waffle Cone Making Machine 5 Slots Conveyor

2.25kw 5000pcs/H Waffle Cone Making Machine 5 Slots Conveyor
2.25kw 5000pcs/H Waffle Cone Making Machine 5 Slots Conveyor
2.25kw 5000pcs/H Waffle Cone Making Machine 5 Slots Conveyor
Product Details:
Place of Origin: China
Brand Name: Gonghexiang
Certification: ISO
Model Number: WH18-5
Contact Now
Detailed Product Description
Model: WH23-5 Power: 2.25KW
Gas Consumption Of Liquefied Gas: 10-12kg/h Capacity: 3000-3500pcs/h
Material: Stain Steel Feature: Stable Performance
Product Specifications: 110-115mm
High Light:

5000pcs/H Waffle Cone Making Machine

,

2.25kw Waffle Cone Making Machine

,

Waffle Cone Maker Machine

Space Saving Full Automatic Waffle Cone Making Machine Steel Structure



Factory Sale Full Automatic Wafer Cone Machine Steel Structure



2.25kw 5000pcs/H Waffle Cone Making Machine 5 Slots Conveyor 0



Working Principle:

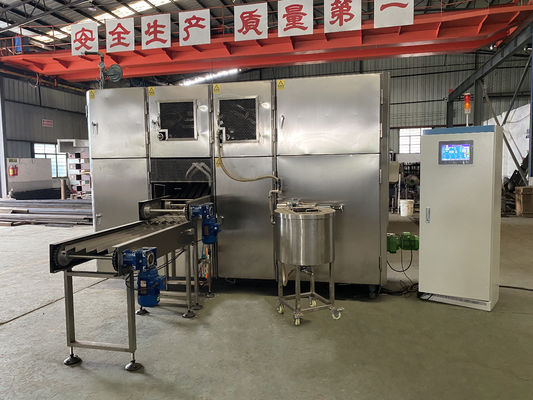

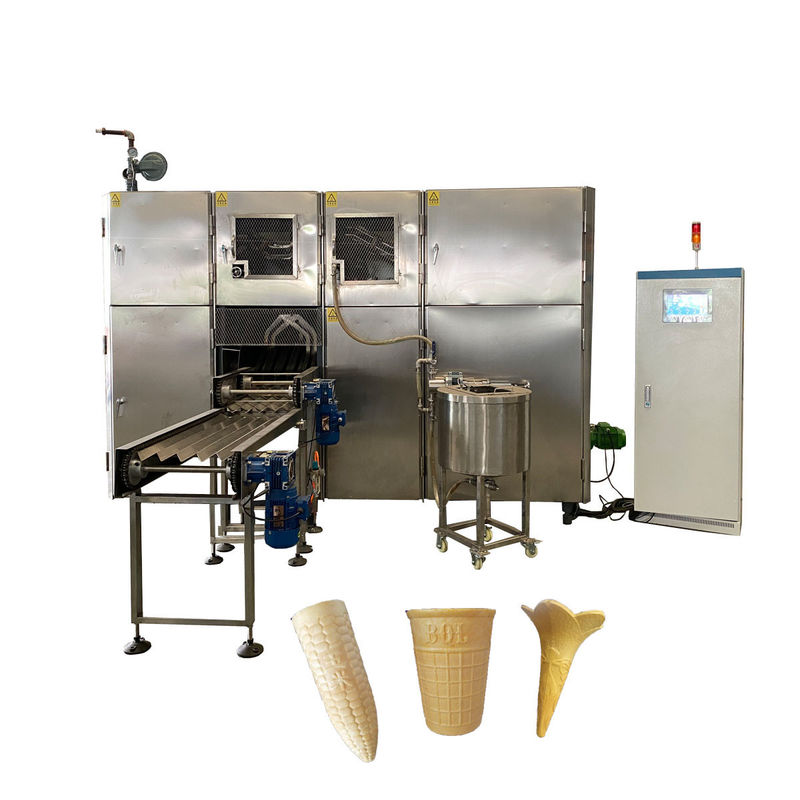

The automatic wafer cone baking machine is composed of electrical control system, battering system, automatic opening and closing moulds, gas system, etc. It is a food machinery and equipment for the production of ice cream wafer cones, which can be made in different shapes and styles by different moulds, through the continuous operation of battering, baking, forming rows, demoulding and conveyor stacking.
The machine is controlled by PLC, with automatic ignition, acceleration and deceleration, and automatic stacking of the demoulding arrangement, which greatly reduces the work intensity of the personnel and increases the working efficiency.



Model: WH23-5
Total power (kw): 2.25
Compressed air pressure (MPa): 0.6
Gas consumption of liquefied gas(kg/h): 10-12

Output (pcs/h): 4000-5000

Number of molds (pcs): 23
Product specification (mm): 100-115 as shown
Conveyor :5 slots





2.25kw 5000pcs/H Waffle Cone Making Machine 5 Slots Conveyor 1





After Sale Service



1. Warranty policy one year from shipment

2. We will send you the replacement after received the broken part

3. Evaluate the customs rish and choose safest shipping company before shipping.

4. Follow status up time by time until the goods arrived.





Customer first, quality first and user-oriented is key to our service. Our company always provide customer with high quality product and good service and we will constantly strive for excellence. We believe our reasonable offer and thoughtful after-sales service can allow users achieve a real “buy peace of mind was at ease with”. We warmly welcome both new and current customer to call for further inquiry or to come and discuss cooperation.



Welcome to contact us with your cone pictures,design,size and capacity then we can talk more and suggest you the suitable ice cream cone machines.
