Guang Zhou Jian Xiang Machinery Co. LTD

|
| Place of Origin: | China |
| Brand Name: | Gonghexiang |
| Certification: | ISO |
| Model Number: | WH23-5 |
| Minimum Order Quantity: | 1 |
|---|
| Model: | WH23-5 | Power: | 2.25KW |
|---|---|---|---|
| Compressed Air Pressure: | 0.6MPa | Gas Consumption Of Liquefied Gas: | 10-12kg/h |
| Molds: | 23 | Capacity: | 3000-3500pcs/h |
| Product Specifications: | 110-115mm | Feature: | Stable Performance |
| Material: | Stain Steel | ||
| High Light: | Crispy Waffle Cone Making Machine,5000pcs/H Waffle Cone Making Machine,Stain Steel Waffle Cone Making Machine |
||
5000pcs/H Crispy Waffle Cone Making Machine Corn Cone Maker Space Saving
Space saving 5000pcs/h Crispy Waffle Cone Making Machine Corn Cone Maker
Full Automatic crispy cone wafer machine corn cone machine

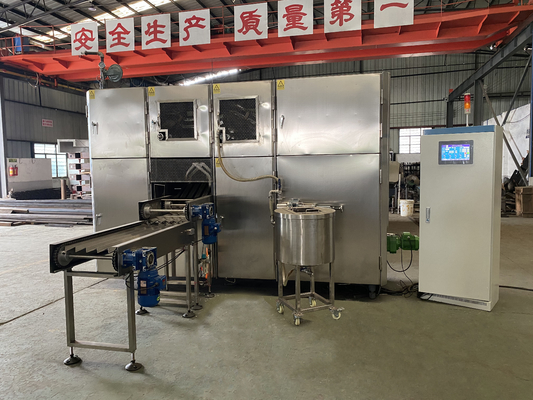

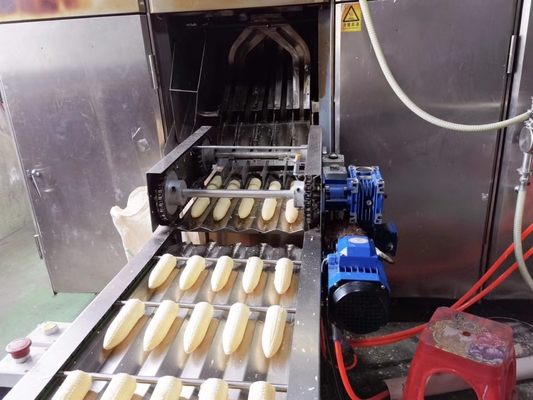

Working Principle: The automatic wafer cone baking machine consists of electrical control system, sizing system, automatic mould opening and closing, gas system, etc. It is a kind of food machinery and equipment for producing ice cream wafer cones, which can be made into different shapes and styles through different moulds by continuous operation of sizing, baking, forming rows, demoulding and conveying and stacking.
The machine adopts PLC control, automatic ignition, acceleration and deceleration, and automatic stacking of the demoulding device, which greatly reduces the work intensity of personnel and improves the working efficiency.
Translated with www.DeepL.com/Translator (free version)
Model: WH23-5
Total power (kw): 2.25
Compressed air pressure (MPa): 0.6
Gas consumption of liquefied gas(kg/h): 10-12
Number of molds (pcs): 23

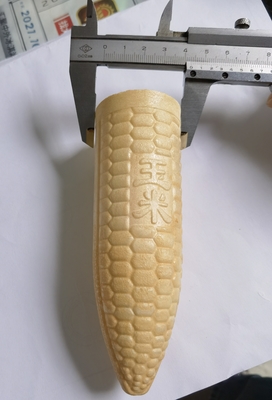

Product specification (mm): 100-115 as shown
Output (pcs/h): 3000-3500
Conveyor :5 slots
Machines can be customized according to customer product samples.
