5000kg Ice Cream Cone Maker Equipment , Wafer Cone Production Line 3.37 Kw 380V

SD80-45x2 automatic ramp small sweet cone baking machine

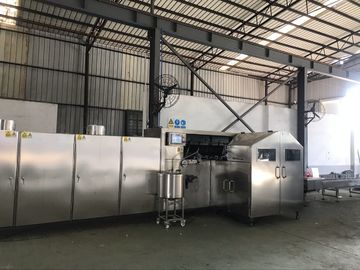

Description of ice cream cones production line:

This ice cream sugar cone making machine is used for rolling sugar cones. it offer cones to the next process to be filled with ice cream. first it dispenses batter on the baking plates to prepare the wafers for shaping,then rolls them up, keep them in shape transfer them on the food grad conveyor. excellent performances have allowed international standards to be comfortably met.

Features of  Ice Cream Cone Making Machine

1.The machine is suitable for making ice cream wafer cones. Cone degree, weight, thickness and pattern spacing customized according to customer demand.

2.The ice cream cone making machine can produce ice cream cones with large production, one hour can make 4000–6250 pcs, other models can meet different customers’ demand.

3.The main part of this machine made by the high quality stainless steel 304, such as top cover, machine shell, etc.

Model:SD80-45x2

Voltage: 380V

Total Power: 3.37 kw

LPG consumption: 8-10kg/h

Capacity: 4000-5000 pcs/h

Dimension: L8.7xW2.1xH1.8m

Net weight: 5000kg

Description of the Electrical accessories

Electrical accessories: Schneider

Controller: Schneider

Working principle:

Feeding the mixed flour paste by feeding pump to the baking plate and automatically close the baking plate, forming as the thickness of the dough, then put into the oven to bake.After baking ,the paste has forming.Using the manipulator to put it in the mould of rolling to make the finished products.after demould conveyor the products.

Working Process of biscuit cone machine
Full automatic filling paste,baking,rolling and conveying-cooling-counting.
The same machine can make different products within round biscuit,sugar rolled cone, egg roll with changing the different forming devices.
The size of the finished cones is within 145mm long can be customized according customer’s requirements, such as angle,width,depth,figure and thickness.
Electric heating and gas heating can be choosen from.

After Sale Service

1. Warranty policy one year from shipment

2. We will send you the replacement after received the broken part

3. Evaluate the customs rish and choose safest shipping company before shipping.

4. Follow status up time by time until the goods arrived.

Packaging & Shipping

1. We always use standard export wooden packing,carton box.

2. You can choose express, by air,by train or by sea.Always we will give our best recommend based on our experience.

3. We cooperate with China best shipping company to get best price and fast delivery.

4. You will get full feedback when your machine is on the way.
