Place of Origin: | China |
Brand Name: | 公禾祥 |
Certification: | ISO |
Model Number: | SD80-45x2 |
Minimum Order Quantity: | 1PS |
---|---|
Price: | Negotiable |
Packaging Details: | RAW PACK |
Delivery Time: | 30-45DAYS |
Payment Terms: | T/T |
Supply Ability: | Sufficient supply |
Raw Material: | Wheat, Wheat Flour | Capacity: | 4000-5000 Pcs/h |
---|---|---|---|
VoltagE: | 380V | Total Power: | 3.37 Kw |
LPG Consumption: | 8-10kg/h | Dimension: | L8.7xW2.1xH1.8m |
Net Weight: | 5000kg | Automatic: | Full-automatic |
Warranty: | One Year | Material: | Stainless Steel |
Certification: | ISO9001 | Application: | Ice Cream,Food |
High Light: | waffle cone maker,ice cream wafer machine |

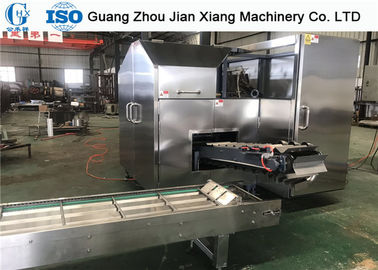

SD80-45x2 automatic ramp sweet cone baking machine/ egg roll baking machine crispy shell production machine
Description of ice cream cones production line:
This ice cream cone production line is fully automatic to make ice cream wafer cone and wafer cups. We can design the different baking machines to make different types of cones as cone required by clients.
The ice cream cone mainly use for filling ice cream and cream.
The ice cream cone production line includes: spare parts and tools for automatic electric waffle cup baking oven, beater, air compressor each one, and supplied with a set of accessories.
Features of ice cream cone production line:
1. Automatic wafer baking oven equipped with Touch-screen and programmed by Siemens. PLC Software,this unit is of natural gas to generate the heat energy to make ice cream cone
2. The equipment is easy to operate which with automatic temperature control,lighting to finish the baking process.
3. From filling flour paste to get a ice cream cone just need 2mins,one time molding.High efficiency.
Model:SD80-45x2
Voltage: 380V
Total Power: 3.37 kw
LPG consumption: 8-10kg/h
Capacity: 4000-5000 pcs/h
Dimension: L8.7xW2.1xH1.8m
Net weight: 5000kg
Description of the Electrical accessories
Electrical accessories: Schneider
Controller: Schneider
Place of Origin: | Guangdong Guangzhou |
Brand Name: | |
Certification: | ISO-9001 |
Model Number: | SD80-45x2 |
Minimum Order Quantity: | 1PS |
Price: | negotiation |
Packaging Details: | RAW PACK |
Delivery Time: | 30-45DAYS |
Payment Terms: | T/T |
Supply Ability: | Sufficient supply |
Working principle:
Feeding the mixed flour paste by feeding pump to the baking plate and automatically close the baking plate, forming as the thickness of the dough, then put into the oven to bake.After baking ,the paste has forming.Using the manipulator to put it in the mould of rolling to make the finished products.after demould conveyor the products.
Working Process of biscuit cone machine
Full automatic filling paste,baking,rolling and conveying-cooling-counting.
The same machine can make different products within round biscuit,sugar rolled cone, egg roll with changing the different forming devices.
The size of the finished cones is within 145mm long can be customized according customer’s requirements, such as angle,width,depth,figure and thickness.
Electric heating and gas heating can be choosen from.
Final Products |
FAQ
1. Ask:What is your guarantee of machine ?
Answer:usually our guarantee is 1 years.
2. Can you arrange your technicians to install the machine for us?
Answer:Yes,We will assign our engineers to go abroad for installing machines for our users.
3. Ask:About the machine voltage or power of machine ?
Answer:Usually in our country is 220v,50hz, single phase,or 380v,50hz,3 phase.if you have the special requirement,pls tell us, we will vetify the voltage according to your requirement.
4. Ask:how to install the machine ?
Answer:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .
Company Profile
Guangzhou Jianxiang Machinery Co., Ltd. has more than 20 years of experience in the production of mechanical products. Now the company has strong technical force, advanced equipment and normative management after many years of struggle and technology accumulation. Our business partner Guangzhou GongHeXiang Machinery Co., Ltd, is the most famous automatic sugar cone baking machine manufacturer in China. The sugar cone baking machine and batter mixer we produce for GongHeXiang had been sold to over 20 provinces in China and exported to many oversea countries like Russia, Kyrgyzstan, Uzbekistan, Turkey, Argentina, Vietnam, Syria, French Polynesia, Egypt, Peru, India etc.
In order to meet market needs and customer’s demand, besides the most regular TT25 sugar cone baking machine, we developed new model TT25-40, TT25-36 and TT25-30 of the TT25 series. TT26 series are electric baking machine which include model TT26-45, TT26-40, TT26-36 and TT26-30. SD80 series are the most advanced caterpillar track type baking machine, which include model SD80-37x2 and model SD80-53x2.
Different machine can meet your different requirement for sugar cone size and your demand for production capacity. After so many years of development, our company had truly become the most professional sugar cone baking machine manufacturer in China.
Customer first, quality first and user-oriented is key to our service. Our company always provide customer with high quality product and good service and we will constantly strive for excellence. We believe our reasonable offer and thoughtful after-sales service can allow users achieve a real “buy peace of mind was at ease with”. We warmly welcome both new and current customer to call for further inquiry or to come and discuss cooperation.
