135mm Ice Cream Cone Making Machine With 3500-4000pcs/H Capacity

135mm Ice Cream Cone Making Machine With 3500-4000pcs/H Capacity

  • 135mm Ice Cream Cone Making Machine With 3500-4000pcs/H Capacity
  • 135mm Ice Cream Cone Making Machine With 3500-4000pcs/H Capacity
  • 135mm Ice Cream Cone Making Machine With 3500-4000pcs/H Capacity
  • 135mm Ice Cream Cone Making Machine With 3500-4000pcs/H Capacity
135mm Ice Cream Cone Making Machine With 3500-4000pcs/H Capacity
Product Details:
Place of Origin: China
Brand Name: 公禾祥
Certification: ISO
Model Number: SD80-L37X2
Payment & Shipping Terms:
Minimum Order Quantity: 1PS
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Capacity: 3500-4000pcs/h LPG Consumption: 7-8kg/h
Total Power: 3.37 Kw Dimension: L8XW2.1XH2M
Net Weight: 4500kg Function: Multifunctional
Raw Material: Wheat, Wheat Flour Application Fields: Snack Food Factory, Beverage Factory
High Light:

waffle cone maker

,

ice cream wafer machine

full-automatic sugar cone baking machine SD80-37x2





Specifications:



Voltage: 380v Product size: length less than 135mm
Total power: 3.37kw Output/hour: 3500-4000pcs/h
LPG consumption: 7-8kg/h Electrical accessories Schneider
Machine dimension: L8XW2.1XH2M PLC controller: Schneider
Net weight: 4500kg Controller: Schneider



Quick Detail



The stirred dough is sent to the baking plate bottom plate by the blanking pump, and the panel of the baking plate is automatically closed, and the dough cake is shaped according to the thickness of the set cake, and then the rotating plate is turned into a baking plate. It is baked in an oven consisting of upper and lower fire nozzles. After baking, the noodle paste has become a dough cake. The robot cake accurately feeds the dough cake into the roll mold and rolls it into a finished product. The finished product is delivered.



Description



1. It can produce machines of different specifications and types according to different specifications of customers;
2. The same cone mainframe oven, with different molding dies, can produce a variety of round cakes, egg rolls, cones and other products.



New generation rolled sugar cone machine for sale



1. Working Principle of the Sugar Cone Baking Machie

The whole machine is controlled by Schneider PLC, operated by the main motor, roller , solenoid valve and air fan, the baking plate of the machine is heated, after it shows about 180℃, the mixed batter will be pumped in a certain adjusted amount to the baking plate by the discharging pump, and automatically close the baking plate. The pastry is adjusted in a certain thickness, then the driving wheel drives baking plate into the oven from the upper and lower fire flame nozzle, after baking, the mixed batter has become a pastry, the machine hand accurately put the pastry into the roll mold to form finished product, after de-moulding, the finished product is sent out.

2. Advantage of Sugar Cone Baking Machine

1. Easy Operation
2. Advanced heating system
3. Durable innoxious cone mould as per sanitation standard
4. Temperature adjustable
5. High-efficient heating element ensures ideal production ability.
6. Different types of moulds according to your choice.
7. A relay unit controls baking time.



<

Model Input power Machine dimension weight LPG consumption Baking plate quantity/machine Product size(mm) Output/hour
SD80-37x2 3.37kw L8XW2.1XH2M 4500kg 7-8kg/h 37 135mm 3500-4000pcs/h
SD80-37A 3.37kw L6.6xW2.1xH2m 3800kg 5-6kg/h 37 165mm 1800-2000pcs/h
SD80-45x2 3.37kw L8.6XW2.1XH2M 5000kg 10-12kg/h 45 135mm 4500-5000pcs/h
SD80-45A 3.37kw L8xW2.1xH2m 4800kg 7-8kg/h 45 165mm 2200-2500pcs/h
SD80-53x2 3.37kw L10.3xW2.1xH1.8m 5800kg 10-12kg/h 53 135mm 5000-6000pcs/h
SD80-53A 3.37kw L8.5xW2.1xH2m 5300kg 8-10kg/h 53 165mm 2800-3200pcs/h
SD80-61x2 4.07kw L12.2xW2.1xH2M 7000kg 16-18kg/h 61 135mm 6000-7000pcs/h
SD80-61A 4.37kw L9.8xW2.1xH2m 6000kg 10-12kg/h 61 165mm 3400-3800pcs/h
SD80-69x2 4.37kw L13.5xW2.1xH2M 7800kg 18-20kg/h 69 135mm 7000-7500pcs/h
SD80-69A 4.37kw L11xW2.1xH2m 6800kg 14-16kg/h 69 165mm 3800-4200pcs/h

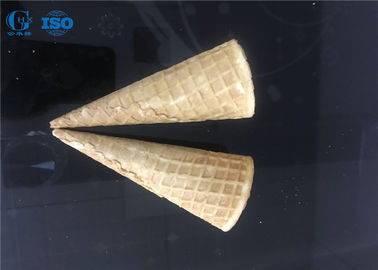

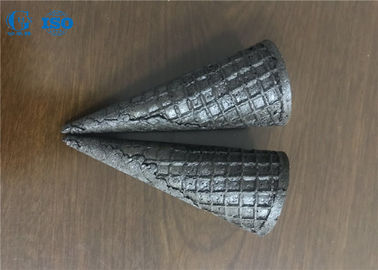

Final Products

135mm Ice Cream Cone Making Machine With 3500-4000pcs/H Capacity 0135mm Ice Cream Cone Making Machine With 3500-4000pcs/H Capacity 1





After Sale Service



1. Warranty policy one year from shipment

2. We will send you the replacement after received the broken part

3. Evaluate the customs rish and choose safest shipping company before shipping.



4. Follow status up time by time until the goods arrived.



Packaging & Shipping



1. We always use standard export wooden packing,carton box.

2. You can choose express, by air,by train or by sea.Always we will give our best recommend based on our experience.

3. We cooperate with China best shipping company to get best price and fast delivery.

4. You will get full feedback when your machine is on the way.



Company Profile

135mm Ice Cream Cone Making Machine With 3500-4000pcs/H Capacity 2

      Guangzhou Jianxiang Machinery Co., Ltd. has more than 20 years of experience in the production of mechanical products. Now the company has strong technical force, advanced equipment and normative management after many years of struggle and technology accumulation. Our business partner Guangzhou GongHeXiang Machinery Co., Ltd, is the most famous automatic sugar cone baking machine manufacturer in China. The sugar cone baking machine and batter mixer we produce for GongHeXiang had been sold to over 20 provinces in China and exported to many oversea countries like Russia, Kyrgyzstan, Uzbekistan, Turkey, Argentina, Vietnam, Syria, French Polynesia, Egypt, Peru, India etc.



In order to meet market needs and customer’s demand, besides the most regular TT25 sugar cone baking machine, we developed new model TT25-40, TT25-36 and TT25-30 of the TT25 series. TT26 series are electric baking machine which include model TT26-45, TT26-40, TT26-36 and TT26-30. SD80 series are the most advanced caterpillar track type baking machine, which include model SD80-37x2 and model SD80-53x2.



Different machine can meet your different requirement for sugar cone size and your demand for production capacity. After so many years of development, our company had truly become the most professional sugar cone baking machine manufacturer in China.



Customer first, quality first and user-oriented is key to our service. Our company always provide customer with high quality product and good service and we will constantly strive for excellence. We believe our reasonable offer and thoughtful after-sales service can allow users achieve a real “buy peace of mind was at ease with”. We warmly welcome both new and current customer to call for further inquiry or to come and discuss cooperation.
