Full Automatic Sugar Cone Making Machine D80-L37X2 With Stainless Steel Texture

Full Automatic Sugar Cone Making Machine D80-L37X2 With Stainless Steel Texture

  • Full Automatic Sugar Cone Making Machine D80-L37X2 With Stainless Steel Texture
  • Full Automatic Sugar Cone Making Machine D80-L37X2 With Stainless Steel Texture
  • Full Automatic Sugar Cone Making Machine D80-L37X2 With Stainless Steel Texture
Full Automatic Sugar Cone Making Machine D80-L37X2 With Stainless Steel Texture
Product Details:
Place of Origin: China
Brand Name: 公禾祥
Certification: ISO
Model Number: SD80-L37X2
Payment & Shipping Terms:
Minimum Order Quantity: 1PS
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
VoltagE: 380V Total Power: 3.37 Kw
LPG Consumption: 7-8kg/h Capacity: 3500-4000pcs/h
Dimension: L8XW2.1XH2M Net Weight: 4500kg
Raw Material: Wheat, Wheat Flour Application Fields: Snack Food Factory, Beverage Factory
Automatic: Full-automatic Warranty: One Year
High Light:

waffle cone maker

,

ice cream cone manufacturing machine

Industrial Full Automatic Sugar Cone Machine Price

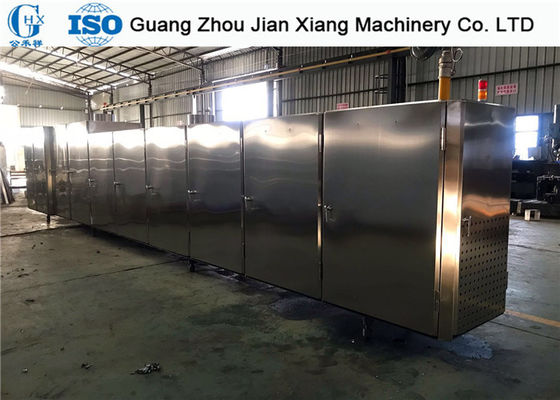

SD80 series tunnel-type full automatic sugar cone making machine is a kind of machine which controlled by PLC,with complete automatization ,high capacity and stable performance.It is very popular all over the world.



Specifications:



Voltage: 380v Product size: length less than 135mm
Total power: 3.37kw Output/hour: 3500-4000pcs/h
LPG consumption: 7-8kg/h Electrical accessories Schneider
Machine dimension: L8XW2.1XH2M PLC controller: Schneider
Net weight: 4500kg Controller: Schneider









Description



1. It can produce machines of different specifications and types according to different specifications of customers;
2. The same cone mainframe oven, with different molding dies, can produce a variety of round cakes, egg rolls, cones and other products.



New generation rolled sugar cone machine for sale



1. Working Principle of the Sugar Cone Baking Machie

The whole machine is controlled by Schneider PLC, operated by the main motor, roller , solenoid valve and air fan, the baking plate of the machine is heated, after it shows about 180℃, the mixed batter will be pumped in a certain adjusted amount to the baking plate by the discharging pump, and automatically close the baking plate. The pastry is adjusted in a certain thickness, then the driving wheel drives baking plate into the oven from the upper and lower fire flame nozzle, after baking, the mixed batter has become a pastry, the machine hand accurately put the pastry into the roll mold to form finished product, after de-moulding, the finished product is sent out.

2. Advantage of Sugar Cone Baking Machine

1. Easy Operation
2. Advanced heating system
3. Durable innoxious cone mould as per sanitation standard
4. Temperature adjustable
5. High-efficient heating element ensures ideal production ability.
6. Different types of moulds according to your choice.
7. A relay unit controls baking time.







Final Products

Full Automatic Sugar Cone Making Machine D80-L37X2 With Stainless Steel Texture 0Full Automatic Sugar Cone Making Machine D80-L37X2 With Stainless Steel Texture 1



FAQ



1. Ask:What is your guarantee of machine ?

Answer:usually our guarantee is 1 years.

2. Can you arrange your technicians to install the machine for us?

Answer:Yes,We will assign our engineers to go abroad for installing machines for our users.

3. Ask:About the machine voltage or power of machine ?

Answer:Usually in our country is 220v,50hz, single phase,or 380v,50hz,3 phase.if you have the special requirement,pls tell us, we will vetify the voltage according to your requirement.

4. Ask:how to install the machine ?

Answer:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .



After Sale Service



1. Warranty policy one year from shipment

2. We will send you the replacement after received the broken part

3. Evaluate the customs rish and choose safest shipping company before shipping.



4. Follow status up time by time until the goods arrived.



Packaging & Shipping



1. We always use standard export wooden packing,carton box.

2. You can choose express, by air,by train or by sea.Always we will give our best recommend based on our experience.

3. We cooperate with China best shipping company to get best price and fast delivery.

4. You will get full feedback when your machine is on the way.



Company Profile

Full Automatic Sugar Cone Making Machine D80-L37X2 With Stainless Steel Texture 2

      Guangzhou Jianxiang Machinery Co., Ltd. has more than 20 years of experience in the production of mechanical products. Now the company has strong technical force, advanced equipment and normative management after many years of struggle and technology accumulation. Our business partner Guangzhou GongHeXiang Machinery Co., Ltd, is the most famous automatic sugar cone baking machine manufacturer in China. The sugar cone baking machine and batter mixer we produce for GongHeXiang had been sold to over 20 provinces in China and exported to many oversea countries like Russia, Kyrgyzstan, Uzbekistan, Turkey, Argentina, Vietnam, Syria, French Polynesia, Egypt, Peru, India etc.



In order to meet market needs and customer’s demand, besides the most regular TT25 sugar cone baking machine, we developed new model TT25-40, TT25-36 and TT25-30 of the TT25 series. TT26 series are electric baking machine which include model TT26-45, TT26-40, TT26-36 and TT26-30. SD80 series are the most advanced caterpillar track type baking machine, which include model SD80-37x2 and model SD80-53x2.



Different machine can meet your different requirement for sugar cone size and your demand for production capacity. After so many years of development, our company had truly become the most professional sugar cone baking machine manufacturer in China.



Customer first, quality first and user-oriented is key to our service. Our company always provide customer with high quality product and good service and we will constantly strive for excellence. We believe our reasonable offer and thoughtful after-sales service can allow users achieve a real “buy peace of mind was at ease with”. We warmly welcome both new and current customer to call for further inquiry or to come and discuss cooperation.
