High Speed Automatic Egg Roll Making Machine With 18-20kg/H LPG Consumption

High Speed Automatic Egg Roll Making Machine With 18-20kg/H LPG Consumption

  • High Speed Automatic Egg Roll Making Machine With 18-20kg/H LPG Consumption
High Speed Automatic Egg Roll Making Machine With 18-20kg/H LPG Consumption
Product Details:
Place of Origin: China
Brand Name: 公禾祥
Certification: ISO
Model Number: SD80-L69X2
Payment & Shipping Terms:
Minimum Order Quantity: 1PS
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
VoltagE: 380V Dimension: L13.5xW2.1xH2M
Total Power: 4.37kw LPG Consumption: 18-20kg/h
Capacity: 7000-7500pcs/h Net Weight: 7800kg
Raw Material: Wheat, Wheat Flour Application Fields: Snack Food Factory, Beverage Factory
High Light:

waffle cone roller equipment

,

waffle cone production line

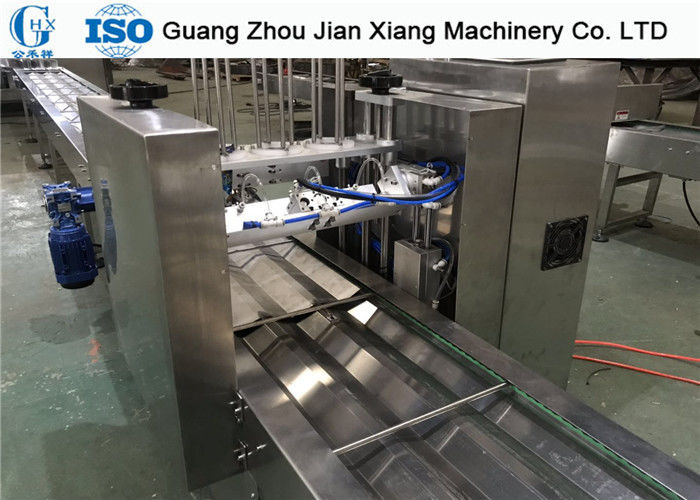

SD80-L69X2 Automatic Egg Roll Making Machine With Fast Heating Up Oven


SD80-L69X2 tunnel type automatic sugar cone making machine is a kind of PLC control, high degree of automation, high production efficiency, stable performance of the production machinery.



Quick Detail: The stirred dough is sent to the baking plate bottom plate by the blanking pump, and the panel of the baking plate is automatically closed. The dough cake is shaped according to the thickness of the set cake, and then the runner is baked. The baking sheet is transferred into an oven consisting of upper and lower fire nozzles. After baking, the dough is turned into a dough cake, and the robot cake accurately feeds the dough cake into the roll mold and rolls it into a finished product. The finished product is sent out after the mold.



Specifications:

Voltage: 380v Product size: Length Below 135mm
Total power: 4.37kw Output/hour: 7000-7500pcs/h
LPG consumption: 18-20kg/h Electrical accessories Schneider
Machine dimension: L13.5xW2.1xH2M PLC con: Schneider
Net weight: 7800kg Controller: Schneider



Model Input power Machine dimension weight LPG consumption Baking plate quantity/machine Product size(mm) Output/hour
SD80-37x2 3.37kw L8XW2.1XH2M 4500kg 7-8kg/h 37 135mm 3500-4000pcs/h
SD80-L37X2 3.37kw L8XW2.1XH2M 4500kg 7-8kg/h 37 135mm 3500-4000pcs/h
SD80-37A 3.37kw L6.6xW2.1xH2m 3800kg 5-6kg/h 37 165mm 1800-2000pcs/h
SD80-45x2 3.37kw L8.6XW2.1XH2M 5000kg 10-12kg/h 45 135mm 4500-5000pcs/h
SD80-L45X2 3.37kw L8.6XW2.1XH2M 5000kg 10-12kg/h 45 135mm 4500-5000pcs/h
SD80-45A 3.37kw L8xW2.1xH2m 4800kg 7-8kg/h 45 165mm 2200-2500pcs/h
SD80-53x2 3.37kw L10.3xW2.1xH1.8m 5800kg 10-12kg/h 53 135mm 5000-6000pcs/h
SD80-L53X2 4.07kw L11xW2.1xH2M 6300kg 14-16kg/h 53 135mm 5000-6000pcs/h
SD80-53A 3.37kw L8.5xW2.1xH2m 5300kg 8-10kg/h 53 165mm 2800-3200pcs/h
SD80-61x2 4.07kw L12.2xW2.1xH2M 7000kg 16-18kg/h 61 135mm 6000-7000pcs/h
SD80-L61X2 4.07kw L12.2xW2.1xH2M 7000kg 16-18kg/h 61 135mm 6000-7000pcs/h
SD80-61A 4.37kw L9.8xW2.1xH2m 6000kg 10-12kg/h 61 165mm 3400-3800pcs/h
SD80-69x2 4.37kw L13.5xW2.1xH2M 7800kg 18-20kg/h 69 135mm 7000-7500pcs/h
SD80-L69X2 4.37kw L13.5xW2.1xH2M 7800kg 18-20kg/h 69 135mm 7000-7500pcs/h
SD80-69A 4.37kw L11xW2.1xH2m 6800kg 14-16kg/h 69 165mm 3800-4200pcs/h




Final Products

High Speed Automatic Egg Roll Making Machine With 18-20kg/H LPG Consumption 0High Speed Automatic Egg Roll Making Machine With 18-20kg/H LPG Consumption 1

Our Services
♥. Pre-sale-service:Design and manufacture machines for you as your special requirement, provide you with project, process design and pruchase program.

♥. On-sale-service: Accompany with you to look around our factory, explain the manufacture process of our machines and check the working performance of our machine.

♥. After-sale-service: Engineers are available to install debugging equipments of the whole production line, besides, commissioning and training operators on site.

After Sale Service

1. Warranty policy one year from shipment
2. We will send you the replacement after received the broken part
3. Evaluate the customs rish and choose safest shipping company before shipping.

4. Follow status up time by time until the goods arrived.


Company Profile
High Speed Automatic Egg Roll Making Machine With 18-20kg/H LPG Consumption 2
      Guangzhou Jianxiang Machinery Co., Ltd. has more than 20 years of experience in the production of mechanical products. Now the company has strong technical force, advanced equipment and normative management after many years of struggle and technology accumulation. Our business partner Guangzhou GongHeXiang Machinery Co., Ltd, is the most famous automatic sugar cone baking machine manufacturer in China. The sugar cone baking machine and batter mixer we produce for GongHeXiang had been sold to over 20 provinces in China and exported to many oversea countries like Russia, Kyrgyzstan, Uzbekistan, Turkey, Argentina, Vietnam, Syria, French Polynesia, Egypt, Peru, India etc.

In order to meet market needs and customer’s demand, besides the most regular TT25 sugar cone baking machine, we developed new model TT25-40, TT25-36 and TT25-30 of the TT25 series. TT26 series are electric baking machine which include model TT26-45, TT26-40, TT26-36 and TT26-30. SD80 series are the most advanced caterpillar track type baking machine, which include model SD80-37x2 and model SD80-53x2.

Different machine can meet your different requirement for sugar cone size and your demand for production capacity. After so many years of development, our company had truly become the most professional sugar cone baking machine manufacturer in China.

Customer first, quality first and user-oriented is key to our service. Our company always provide customer with high quality product and good service and we will constantly strive for excellence. We believe our reasonable offer and thoughtful after-sales service can allow users achieve a real “buy peace of mind was at ease with”. We warmly welcome both new and current customer to call for further inquiry or to come and discuss cooperation.
