Guang Zhou Jian Xiang Machinery Co. LTD
 |
| Place of Origin: | China |
| Certification: | ISO |
| Model Number: | SD80-37A |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45DAYS |
| Payment Terms: | T/T |
| Supply Ability: | Sufficient supply |
| Dimension: | L16.6xW2.1xH2m | Capacity: | 1800-2000pcs/h |
|---|---|---|---|
| Total Power: | 3.37 Kw | VoltagE: | 380V |
| LPG Consumption: | 5-6kg/h | Net Weight: | 3800kg |
| Warranty: | One Year | Material: | Stainless Steel |
| Application: | Ice Cream,Food | Feature: | Energy Saving , High Speed |
| High Light: | waffle cone maker,ice cream cone manufacturing machine |
||

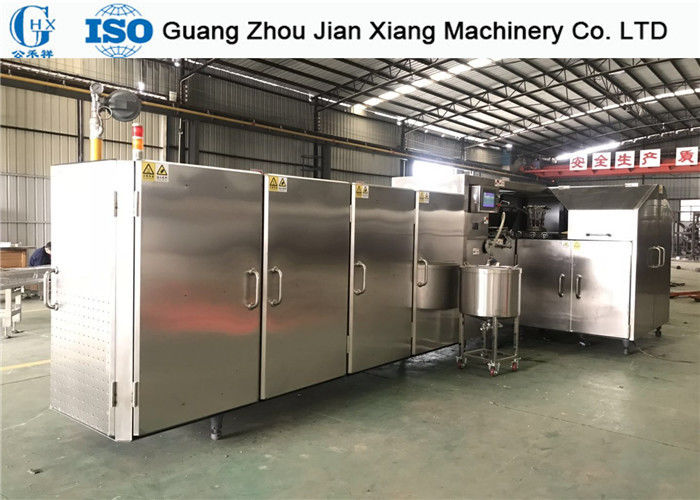

SD80-37A tunnel-type full automatic sugar cone making machine
SD80-37A tunnel type automatic sugar cone making machine is a kind of PLC control, high degree of automation, high production efficiency, stable performance of the production machinery
Voltage: 380V
Total Power: 3.37 kw
LPG consumption: 5-6kg/h
Capacity: 1800-2000pcs/h
Dimension: L16.6xW2.1xH2m
Net weight: 3800kg
Description of the Electrical accessories
Electrical accessories: French brand: Schneider
PLC Controller: French brand : Schneider
Key Features
High flexibility. With different rolling station, a wide variety products can be produced.
Horizontal system. Easier to operate and control. With longer path from baking plates to rolling molds, it gives extra versatile through working with a standalone pressing tower system.
Pressing Tower system. Capable of making various type of basket-shaped products.
Working principle:
Feeding the mixed flour paste by feeding pump to the baking plate and automatically close the baking plate, forming as the thickness of the dough,then put into the oven to bake.After baking ,the paste has forming.Using the manipulator to put it in the mould of rolling to make the finished products.after demould conveyor the products.
Standard Equipment
1, conveyor
It is used to deliver the finished products to the assembly shop in a neat line.
Voltage: 220V
Power: 0.75kw
Dimension: L5mxW0.6mxH0.7m
Standard:L 5M x W0.5M x H0.5M
2, Receiver
It is used for stacking the product into a string for convenient counting and packing.
Standard:L 1.5M x W0.4M x H0.7M
| Final Products |
Product requirements: Suitable for natural side products with a length of 165mm or less, and a small output of 1800-2200 pieces/hour.
FAQ
1. Ask:What is your guarantee of machine ?
Answer:usually our guarantee is 1 years.
2. Can you arrange your technicians to install the machine for us?
Answer:Yes,We will assign our engineers to go abroad for installing machines for our users.
3. Ask:About the machine voltage or power of machine ?
Answer:Usually in our country is 220v,50hz, single phase,or 380v,50hz,3 phase.if you have the special requirement,pls tell us, we will vetify the voltage according to your requirement.
4. Ask:how to install the machine ?
Answer:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .
Company Profile
Guangzhou Jianxiang Machinery Co., Ltd. has more than 20 years of experience in the production of mechanical products. Now the company has strong technical force, advanced equipment and normative management after many years of struggle and technology accumulation. Our business partner Guangzhou GongHeXiang Machinery Co., Ltd, is the most famous automatic sugar cone baking machine manufacturer in China. The sugar cone baking machine and batter mixer we produce for GongHeXiang had been sold to over 20 provinces in China and exported to many oversea countries like Russia, Kyrgyzstan, Uzbekistan, Turkey, Argentina, Vietnam, Syria, French Polynesia, Egypt, Peru, India etc.
In order to meet market needs and customer’s demand, besides the most regular TT25 sugar cone baking machine, we developed new model TT25-40, TT25-36 and TT25-30 of the TT25 series. TT26 series are electric baking machine which include model TT26-45, TT26-40, TT26-36 and TT26-30. SD80 series are the most advanced caterpillar track type baking machine, which include model SD80-37x2 and model SD80-53x2.
Different machine can meet your different requirement for sugar cone size and your demand for production capacity. After so many years of development, our company had truly become the most professional sugar cone baking machine manufacturer in China.
Customer first, quality first and user-oriented is key to our service. Our company always provide customer with high quality product and good service and we will constantly strive for excellence. We believe our reasonable offer and thoughtful after-sales service can allow users achieve a real “buy peace of mind was at ease with”. We warmly welcome both new and current customer to call for further inquiry or to come and discuss cooperation.
