High Efficiency Ice Cream Cone Manufacturing Machine 380V

High Efficiency Ice Cream Cone Manufacturing Machine 380V

High Efficiency Ice Cream Cone Manufacturing Machine  380V
High Efficiency Ice Cream Cone Manufacturing Machine  380V
High Efficiency Ice Cream Cone Manufacturing Machine  380V
Product Details:
Place of Origin: China
Brand Name: GongHeXiang
Certification: ISO
Model Number: SD80-37x2
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Name: Ice Cream Cone Manufacturing Machine Voltage: 380V
Input Power: 3.37kw Feature: High Efficiency
Capacity: 3500-4000pcs/h Net Weight: 4500kg
Other Name: Cone Ice Cream Maker Automatic: Full-automatic
Warranty: One Year Marketing Type: New Product 2020
Certification: ISO Produce: Less Than 120mm
High Light:

waffle cone maker

,

ice cream wafer machine



High Efficiency Ice Cream Cone Manufacturing Machine with 380V



High Efficiency Ice Cream Cone Manufacturing Machine  380V 0

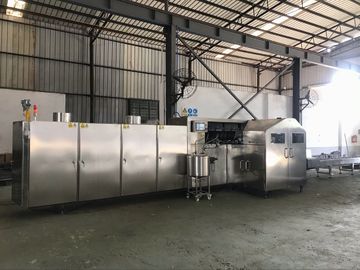

Ice Cream Cone Manufacturing Machine Working Principle

The whole machine is controlled by Schneider PLC, operated by the main motor, roller , solenoid valve and air fan, the baking plate of the machine is heated, after it shows about 180℃, the mixed batter will be pumped in a certain adjusted amount to the baking plate by the discharging pump, and automatically close the baking plate. The pastry is adjusted in a certain thickness, then the driving wheel drives baking plate into the oven from the upper and lower fire flame nozzle, after baking, the mixed batter has become a pastry, the machine hand accurately put the pastry into the roll mold to form finished product, after de-moulding, the finished product is sent out.



Ice Cream Cone Manufacturing Machine Parameters



Name SD80-37x2 High Efficiency Ice Cream Cone Manufacturing Machine , Cone Ice Cream Maker
Total power 3.37kw Output/hour 3500-4000pcs/h
LPG consumption 7-8kg/h Electrical accessories Schneider
Machine dimension L8XW2.1XH2M PLC controller Schneider
Net weight 4500kg Controller Schneider

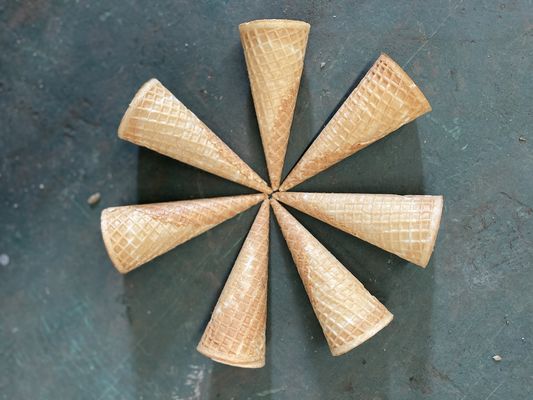

The machine is suitable for making flat mouth sugar cone length less than 120mm. Cone degree, weight, thickness and pattern spacing customized according to customer demand.



The machine is driven by the 3 phases power and backing oven is heating with gas (natural gas or liquid gas), electric ignition, oven temperature electronic display. The producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds and conveying products.





FAQ



1. Ask:What is your guarantee of machine ?

Answer:usually our guarantee is 1 years.



2. How about your after-sales service?
Our engineer can go outside to install and train your workers to operate the full machine line.



3. Ask:About the machine voltage or power of machine ?

Answer:Usually in our country is 220v,50hz, single phase,or 380v,50hz,3 phase.if you have the special requirement,pls tell us, we will vetify the voltage according to your requirement.
