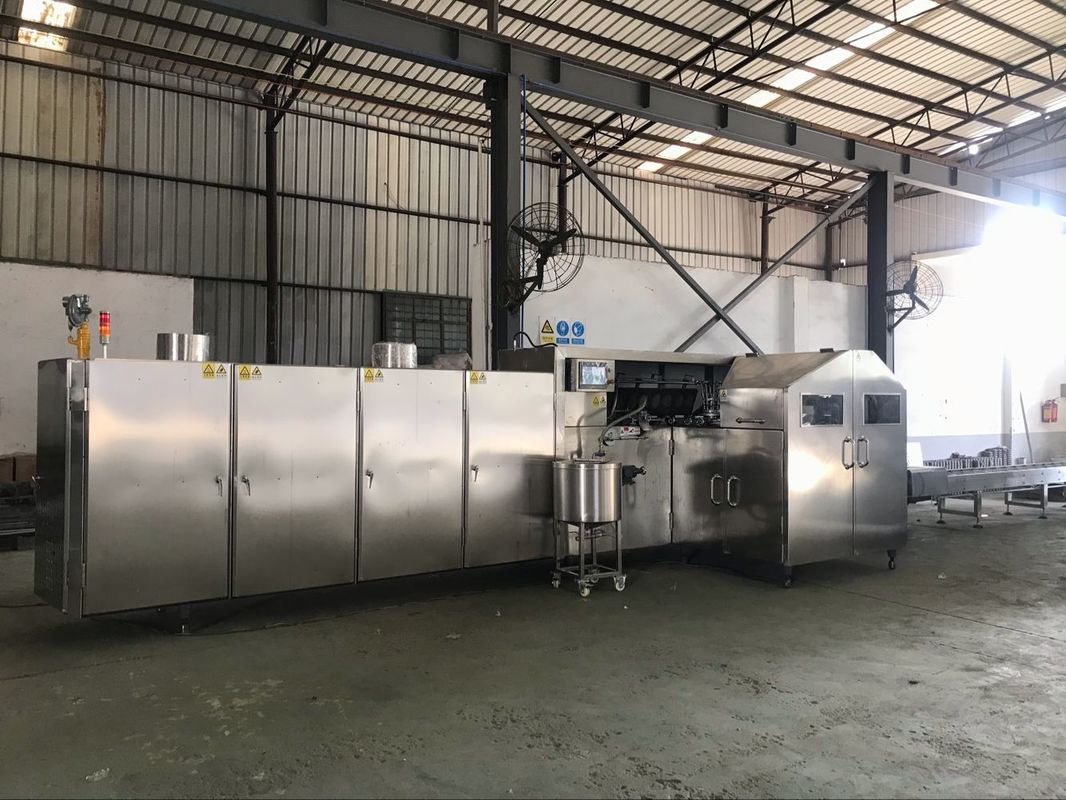

Sugar Cone Baking Machine Introduction

SD80 series Sugar Cone Baking Machine is a kind of machine which controlled by PLC,with complete automatization ,high capacity and stable performance.It is very popular all over the world.

Sugar Cone Baking Machine Feature

♦ The machine is suitable for making flat mouth sugar cone length less than 135mm. Cone degree, weight, thickness and pattern spacing customized according to customer demand.

♦ The machine is driven by the 3 phases power and backing oven is heating with gas (natural gas or liquid gas), electric ignition, oven temperature electronic display. The producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds, conveying products, stacking and counting.

Sugar Cone Baking Machine Working Principle

The Sugar Cone Baking Machine  is controlled by Schneider PLC, operated by the main motor, roller , solenoid valve and air fan, the baking plate of the machine is heated, after it shows about 180℃, the mixed batter will be pumped in a certain adjusted amount to the baking plate by the discharging pump, and automatically close the baking plate. The pastry is adjusted in a certain thickness, then the driving wheel drives baking plate into the oven from the upper and lower fire flame nozzle, after baking, the mixed batter has become a pastry, the machine hand accurately put the pastry into the roll mold to form finished product, after de-moulding, the finished product is sent out.

Sugar Cone Baking Machine Parameters

Sugar Cone Baking Machine Final Products

FAQ

1. Ask:What is your guarantee of machine ?

Answer:usually our guarantee is 1 years.

2. Can you arrange your technicians to install the machine for us?

Answer:Yes,We will assign our engineers to go abroad for installing machines for our users.

3. Ask:About the machine voltage or power of machine ?

Answer:Usually in our country is 220v,50hz, single phase,or 380v,50hz,3 phase.if you have the special requirement,pls tell us, we will vetify the voltage according to your requirement.

4. Ask:how to install the machine ?

Answer:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .
