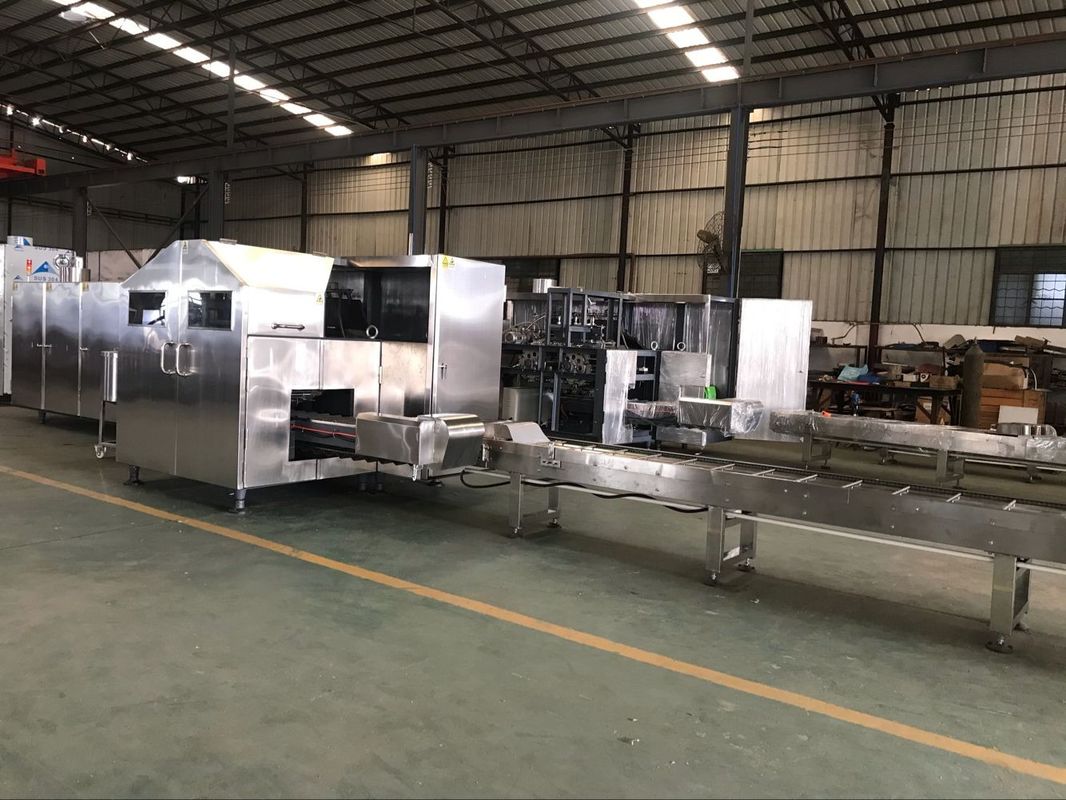

Fully Automatic Ice Cream Cone Making Machine 4000-5000pcs/H Capacity

Fully Automatic Ice Cream Cone Making Machine 4000-5000pcs/H Capacity

Fully Automatic Ice Cream Cone Making Machine 4000-5000pcs/H Capacity
Fully Automatic Ice Cream Cone Making Machine 4000-5000pcs/H Capacity
Fully Automatic Ice Cream Cone Making Machine 4000-5000pcs/H Capacity
Product Details:
Place of Origin: China
Brand Name: GongHeXiang
Certification: ISO
Model Number: SD80-45x2
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Dimension: L8.7xW2.1xH2 M Voltage: 380V
Input Power: 3.37kw LPG Consumption: 8-10kg/h
Capacity: 4000-5000pcs/h Net Weight: 5000Kg
Raw Material: Wheat, Wheat Flour Application Fields: Snack Food Factory, Beverage Factory
Automatic: Full-automatic Warranty: One Year
High Light:

waffle cone maker

,

ice cream wafer machine

Fully Automatic Ice Cream Cone Making Machine 4000-5000pcs/H Capacity



Introduction



SD80 series tunnel-type full automatic sugar cone making machine is a kind of machine which controlled by PLC,with complete automatization ,high capacity and stable performance.It is very popular all over the world.



Working Principle

The whole machine is controlled by Schneider PLC, operated by the main motor, roller , solenoid valve and air fan, the baking plate of the machine is heated, after it shows about 180℃, the mixed batter will be pumped in a certain adjusted amount to the baking plate by the discharging pump, and automatically close the baking plate. The pastry is adjusted in a certain thickness, then the driving wheel drives baking plate into the oven from the upper and lower fire flame nozzle, after baking, the mixed batter has become a pastry, the machine hand accurately put the pastry into the roll mold to form finished product, after de-moulding, the finished product is sent out.

Advantage

  1. Easy Operation
  2. Advanced heating system
  3. Durable innoxious cone mould as per sanitation standard
  4. Temperature adjustable
  5. High-efficient heating element ensures ideal production ability.
  6. Different types of moulds according to your choice.
  7. A relay unit controls baking time.

Parameters



Name SD80-45x2
Voltage 380v Product size 120mm
Total power 3.37kw Output/hour 4000-5000pcs/h
LPG consumption 8-10kg/h Electrical accessories Schneider
Machine dimension L8.7xW2.1xH2 M PLC controller Schneider
Net weight 50000kg Controller Schneider





FAQ



1. Ask:What is your guarantee of machine ?

Answer:usually our guarantee is 1 years.

2. Can you arrange your technicians to install the machine for us?

Answer:Yes,We will assign our engineers to go abroad for installing machines for our users.

3. Ask:About the machine voltage or power of machine ?

Answer:Usually in our country is 220v,50hz, single phase,or 380v,50hz,3 phase.if you have the special requirement,pls tell us, we will vetify the voltage according to your requirement.

4. Ask:how to install the machine ?

Answer:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .



Company Profile



      Guangzhou Jianxiang Machinery Co., Ltd. has more than 20 years of experience in the production of mechanical products. Now the company has strong technical force, advanced equipment and normative management after many years of struggle and technology accumulation. Our business partner Guangzhou GongHeXiang Machinery Co., Ltd, is the most famous automatic sugar cone baking machine manufacturer in China. The sugar cone baking machine and batter mixer we produce for GongHeXiang had been sold to over 20 provinces in China and exported to many oversea countries like Russia, Kyrgyzstan, Uzbekistan, Turkey, Argentina, Vietnam, Syria, French Polynesia, Egypt, Peru, India etc.



In order to meet market needs and customer’s demand, besides the most regular TT25 sugar cone baking machine, we developed new model TT25-40, TT25-36 and TT25-30 of the TT25 series. TT26 series are electric baking machine which include model TT26-45, TT26-40, TT26-36 and TT26-30. SD80 series are the most advanced caterpillar track type baking machine, which include model SD80-37x2 and model SD80-53x2.



Different machine can meet your different requirement for sugar cone size and your demand for production capacity. After so many years of development, our company had truly become the most professional sugar cone baking machine manufacturer in China.



Customer first, quality first and user-oriented is key to our service. Our company always provide customer with high quality product and good service and we will constantly strive for excellence. We believe our reasonable offer and thoughtful after-sales service can allow users achieve a real “buy peace of mind was at ease with”. We warmly welcome both new and current customer to call for further inquiry or to come and discuss cooperation.
