Guang Zhou Jian Xiang Machinery Co. LTD
 |
| Place of Origin: | China |
| Brand Name: | Gonghexiang |
| Certification: | ISO |
| Model Number: | SD80-61A |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45DAYS |
| Payment Terms: | T/T |
| Supply Ability: | Sufficient supply |
| Name: | Cone Ice Cream Machine | LPG Consumption: | 10-12kg/h |
|---|---|---|---|
| Type: | Sugar Cone Wafer Processing Equipment | Automatic: | Full-automatic |
| Warranty: | One Year | Material: | Stainless Steel |
| Certification: | ISO9001 | Product Size:: | Length Below 165mm |
| High Light: | automatic waffle cone maker,automatic cone machine |
||

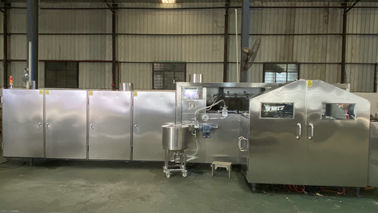

PLC Control Cone Ice Cream Machine , Sugar Cone Wafer Processing Equipment
Cone Ice Cream Machine Introduction
Tunnel-type full automatic sugar cone making machine is a kind of machine which controlled by PLD,with complete automatization ,high capacity and stable performance.It is very popular all over the world.
Cone Ice Cream Machine Working principle:
Feeding the mixed flour paste by feeding pump to the baking plate and automatically close the baking plate, forming as the thickness of the dough,then put into the oven to bake.After baking ,the paste has forming.Using the manipulator to put it in the mould of rolling to make the finished products.after demould conveyor the products.
Parameters
| Model | Input power | Machine dimension | weight | LPG consumption | Baking plate quantity/machine | Product size(mm) | Output/hour |
| SD80-61A | 4.37kw | L9.8xW2.1xH2m | 6000kg | 10-12kg/h | 61 | 165mm | 3400-3800pcs/h |
Standard equipment:
1,conveyor
Voltage:220V
Power:0.75kw
Dimension: 5mx0.6mx0.7m
It is used to deliver the finished products to the assembly shop in a neat line.
2,optional equipment : automatic counting machine
Power: 0.75kw
Dimension: 2mx0.9mx0.7m
It is used to automatically stack the molded products of the paper sleeve into a string, and wait for the box according to the set number. The set value is 1-50/string.
| Final Products |
Our Services
♥. Pre-sale-service:Design and manufacture machines for you as your special requirement, provide you with project, process design and pruchase program.
♥. On-sale-service: Accompany with you to look around our factory, explain the manufacture process of our machines and check the working performance of our machine.
♥. After-sale-service: Engineers are available to install debugging equipments of the whole production line, besides, commissioning and training operators on site.
After Sale Service
1. Warranty policy one year from shipment
2. We will send you the replacement after received the broken part
3. Evaluate the customs rish and choose safest shipping company before shipping.
4. Follow status up time by time until the goods arrived.
Packaging & Shipping
1. We always use standard export wooden packing,carton box.
2. You can choose express, by air,by train or by sea.Always we will give our best recommend based on our experience.
3. We cooperate with China best shipping company to get best price and fast delivery.
4. You will get full feedback when your machine is on the way.
Contact Person: Katrina
Tel: +8613570559620
