5kg/H 165mm Ice Cream Cone Making Machine For Snack Food Factory

5kg/H 165mm Ice Cream Cone Making Machine For Snack Food Factory

  • 5kg/H 165mm Ice Cream Cone Making Machine For Snack Food Factory
  • 5kg/H 165mm Ice Cream Cone Making Machine For Snack Food Factory
  • 5kg/H 165mm Ice Cream Cone Making Machine For Snack Food Factory

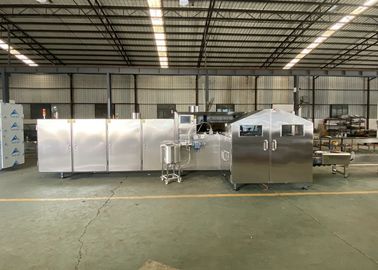

5kg/H 165mm Ice Cream Cone Making Machine For Snack Food Factory
Product Details:
Place of Origin: China
Brand Name: GHX
Certification: ISO
Model Number: SD80-37A
Payment & Shipping Terms:
Minimum Order Quantity: 1PS
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Net Weight: 3800kg VoltagE: 380V
Total Power: 3.37 Kw LPG Consumption: 5-6kg/h
Capacity: 1800-2000pcs/h Dimension: L6.6xW2.1xH2m
Application Fields: Snack Food Factory, Beverage Factory Materisl: Stain Steel
Warranty: One Year Condition: New
Certification: ISO
High Light:

5kg/h Ice Cream Cone Making Machine

,

165mm Ice Cream Cone Making Machine

Complete product line suger cone making machine





Voltage: 380V

Total Power3.37 kw

LPG consumption: 5-6kg/h

Capacity1800-2000pcs/h

Dimension: L16.6xW2.1xH2m

Net weight: 3800kg





PLC Controller: French brand : Schneider



Working principle:

Feeding the mixed flour paste by feeding pump to the baking plate and automatically close the baking plate, forming as the thickness of the dough,then put into the oven to bake.After baking ,the paste has forming.Using the manipulator to put it in the mould of rolling to make the finished products.after demould conveyor the products.





Standard equipment

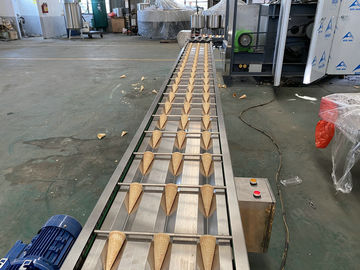

1, conveyor

5kg/H 165mm Ice Cream Cone Making Machine For Snack Food Factory 0

It is used to deliver the finished products to the assembly shop in a neat line.

Voltage: 220V

Power: 0.75kw

Dimension: L5mxW0.6mxH0.7m

Standard:L 5M x W0.5M x H0.5M



2, Receiver

5kg/H 165mm Ice Cream Cone Making Machine For Snack Food Factory 1

It is used for stacking the product into a string for convenient counting and packing.



Standard:L 1.5M x W0.4M x H0.7M



Final Products





5kg/H 165mm Ice Cream Cone Making Machine For Snack Food Factory 2

Product requirements: Suitable for natural side products with a length of 165mm or less, and a small output of 1800-2200 pieces/hour.







Company Profile

5kg/H 165mm Ice Cream Cone Making Machine For Snack Food Factory 35kg/H 165mm Ice Cream Cone Making Machine For Snack Food Factory 4

      Guangzhou Jianxiang Machinery Co., Ltd. has more than 20 years of experience in the production of mechanical products. Now the company has strong technical force, advanced equipment and normative management after many years of struggle and technology accumulation. Our business partner Guangzhou GongHeXiang Machinery Co., Ltd, is the most famous automatic sugar cone baking machine manufacturer in China. The sugar cone baking machine and batter mixer we produce for GongHeXiang had been sold to over 20 provinces in China and exported to many oversea countries like Russia, Kyrgyzstan, Uzbekistan, Turkey, Argentina, Vietnam, Syria, French Polynesia, Egypt, Peru, India etc.





Customer first, quality first and user-oriented is key to our service. Our company always provide customer with high quality product and good service and we will constantly strive for excellence. We believe our reasonable offer and thoughtful after-sales service can allow users achieve a real “buy peace of mind was at ease with”. We warmly welcome both new and current customer to call for further inquiry or to come and discuss cooperation.





FAQ



1. Ask:What is your guarantee of machine ?

Answer:usually our guarantee is 1 years.

2. Can you arrange your technicians to install the machine for us?

Answer:Yes,We will assign our engineers to go abroad for installing machines for our users.

3. Ask:how to install the machine ?

Answer:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .
