PLC 3.37Kw 380V Ice Cream Cone Maker Equipment

PLC 3.37Kw 380V Ice Cream Cone Maker Equipment

PLC 3.37Kw 380V Ice Cream Cone Maker Equipment
PLC 3.37Kw 380V Ice Cream Cone Maker Equipment
PLC 3.37Kw 380V Ice Cream Cone Maker Equipment
Product Details:
Place of Origin: China
Brand Name: Gonghexiang
Certification: ISO
Model Number: SD80-45x2
Payment & Shipping Terms:
Minimum Order Quantity: 1PS
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Net Weight: 5000kg VoltagE: 380V
Total Power: 3.37 Kw Capacity: 4000-5000 Pcs/h
Dimension: L8.7xW2.1xH1.8m Warranty: One Year
Material: Stainless Steel Supply Ability: Sufficient Supply
Delivery Time: 30-45DAYS Minimum Order Quantity: 1 Set
High Light:

380V Ice Cream Cone Maker Equipment

,

3.37Kw Ice Cream Cone Maker Equipment

Ice Cream Cone Maker Equipment , Complete Production Line 3.37 Kw 380V



SD80 series tunnel type automatic sugar cone making machine is a kind of PLC control, high degree of automation, high production efficiency, stable performance of the production machinery



PLC 3.37Kw 380V Ice Cream Cone Maker Equipment 0



Features of  Ice Cream Cone Making Machine



1. The Factory Price Full Automatic Roll Sugar Cone Baking Machine Ice Cream Cone Making Machine is suitable for making flat mouth sugar cone length less than 135mm. Cone degree, weight, thickness and pattern spacing customized according to customer demand.



2. The Full Automatic Ice Cream Cone Making Machine is driven by the 3 phases power and backing oven is heating with gas (natural gas or liquid gas), electric  ignition, oven temperature electronic display. The Ice Cream Cone Supplier producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds, conveying products, stacking and counting.





Model:SD80-45x2

Voltage380V

Total Power3.37 kw

LPG consumption8-10kg/h

Capacity4000-5000 pcs/h

DimensionL8.7xW2.1xH1.8m

Net weight5000kg



Description of the Electrical accessories

Electrical accessoriesSchneider

Controller: Schneider





PLC 3.37Kw 380V Ice Cream Cone Maker Equipment 1



Working principle:

Feeding the mixed flour paste by feeding pump to the baking plate and automatically close the baking plate, forming as the thickness of the dough, then put into the oven to bake.After baking ,the paste has forming.Using the manipulator to put it in the mould of rolling to make the finished products.after demould conveyor the products.



Working Process of biscuit cone machine
Full automatic filling paste,baking,rolling and conveying-cooling-counting.
The same machine can make different products within round biscuit,sugar rolled cone, egg roll with changing the different forming devices.
The size of the finished cones is within 145mm long can be customized according customer’s requirements, such as angle,width,depth,figure and thickness.
Electric heating and gas heating can be choosen from.

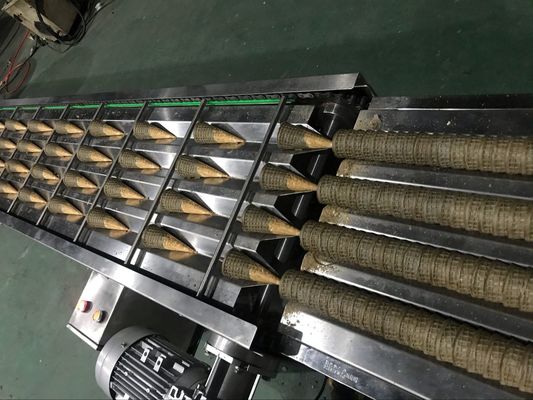

Final Products



PLC 3.37Kw 380V Ice Cream Cone Maker Equipment 2

After Sale Service



1. Warranty policy one year from shipment

2. We will send you the replacement after received the broken part

3. Evaluate the customs rish and choose safest shipping company before shipping.



4. Follow status up time by time until the goods arrived.



Packaging & Shipping



1. We always use standard export wooden packing,carton box.

2. You can choose express, by air,by train or by sea.Always we will give our best recommend based on our experience.

3. We cooperate with China best shipping company to get best price and fast delivery.

4. You will get full feedback when your machine is on the way.



Company Profile

PLC 3.37Kw 380V Ice Cream Cone Maker Equipment 3





    Customer first, quality first and user-oriented is key to our service. Our company always provide customer with high quality product and good service and we will constantly strive for excellence. We believe our reasonable offer and thoughtful after-sales service can allow users achieve a real “buy peace of mind was at ease with”. We warmly welcome both new and current customer to call for further inquiry or to come and discuss cooperation.
