304 Automatic Ramp Sweet Cone Baking Machine

304 Automatic Ramp Sweet Cone Baking Machine

304 Automatic Ramp Sweet Cone Baking Machine
304 Automatic Ramp Sweet Cone Baking Machine
304 Automatic Ramp Sweet Cone Baking Machine
Product Details:
Place of Origin: China
Brand Name: Gonghexiang
Certification: ISO
Model Number: SD80-45x2
Payment & Shipping Terms:
Minimum Order Quantity: 1PS
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Raw Material: Wheat, Wheat Flour Capacity: 4000-5000 Pcs/h
Material: 304 Stain Steel VoltagE: 380V
Total Power: 3.37 Kw LPG Consumption: 8-10kg/h
Dimension: L8.7xW2.1xH1.8m Application: Ice Cream,Food
Net Weight: 5000kg Warranty: One Year
Certification: ISO9001 Color: Sliver
Feature: Saving Energy
High Light:

Automatic Ramp Sweet Cone Baking Machine

,

5000 pcs/h Sweet Cone Baking Machine


SD80-45x2 automatic ramp sweet cone baking machine

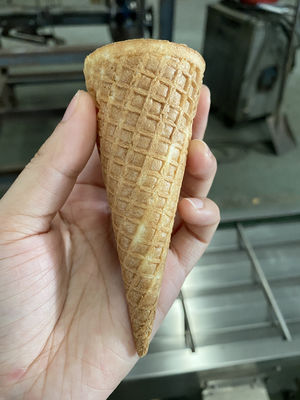

304 Automatic Ramp Sweet Cone Baking Machine 0



Working principle:



The whole machine is controlled by schneider PLC, through the main motor startup, roll machine, fan starts, gas start, and the igniter is automatically ignited to heat the baking plate of the machine.Until the temperature shows about 180 degrees,The mixed dough is sent to the bottom plate of the baking plate by the dosing pump, and the panel of the baking plate is automatically closed.The dough is shaped according to the set thickness of the dough, and then the baking plate is driven by the active wheel. Transfer to an oven consisting of upper and lower fire mouths, etc.After baking, the pasta has become a pastry, and the dough is accurately put into a rolling mold by a manipulator it into a finished product, and the finished product is sent out after demolding.

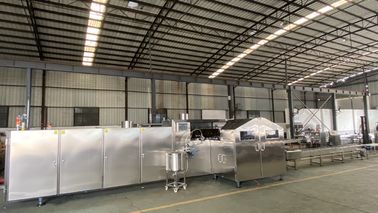

304 Automatic Ramp Sweet Cone Baking Machine 1

Features of ice cream cone production line:



1. Automatic wafer baking oven equipped with Touch-screen and programmed by Siemens. PLC Software,this unit is of natural gas to generate the heat energy to make ice cream cone.

2. The equipment is easy to operate which with automatic temperature control,lighting  to finish the baking process.

3. From filling flour paste to get a ice cream cone just need 2mins,one time molding.High efficiency.



Model:SD80-45x2

Voltage380V

Total Power3.37 kw

LPG consumption8-10kg/h

Capacity4000-5000 pcs/h

DimensionL8.7xW2.1xH1.8m

Net weight5000kg



Description of the Electrical accessories

Electrical accessoriesSchneider

Controller: Schneider



Minimum Order Quantity: 1PS
Price: negotiation
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply







Working Process of biscuit cone machine
Full automatic filling paste,baking,rolling and conveying-cooling-counting.
The same machine can make different products within round biscuit,sugar rolled cone, egg roll with changing the different forming devices.
The size of the finished cones is within 145mm long can be customized according customer’s requirements, such as angle,width,depth,figure and thickness.
Electric heating and gas heating can be choosen from.

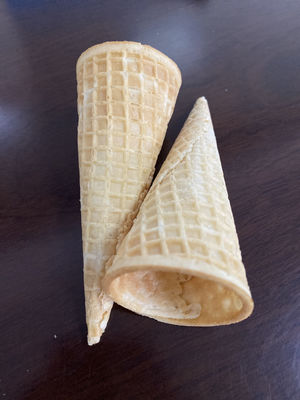

304 Automatic Ramp Sweet Cone Baking Machine 2



FAQ



1. Ask:What is your guarantee of machine ?

Answer:usually our guarantee is 1 years.

2. Can you arrange your technicians to install the machine for us?

Answer:Yes,We will assign our engineers to go abroad for installing machines for our users.

3. Ask:About the machine voltage or power of machine ?

Answer:Usually in our country is 220v,50hz, single phase,or 380v,50hz,3 phase.if you have the special requirement,pls tell us, we will vetify the voltage according to your requirement.

4. Ask:how to install the machine ?

Answer:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .
