Two Color Save Gas 3500pcs/h Ice Cream Cone Making Machine

Two Color Save Gas 3500pcs/h Ice Cream Cone Making Machine

Two Color Save Gas 3500pcs/h Ice Cream Cone Making Machine
Two Color Save Gas 3500pcs/h Ice Cream Cone Making Machine
Two Color Save Gas 3500pcs/h Ice Cream Cone Making Machine
Product Details:
Place of Origin: China
Brand Name: GongHeXiang
Certification: ISO
Model Number: SD80-37x2
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Name: Ice Cream Cone Manufacturing Machine Voltage: 380V
Input Power: 3.37kw Feature: High Efficiency
Capacity: 3500-4000pcs/h Net Weight: 4500kg
Raw Material: Wheat, Wheat Flour Other Name: Cone Ice Cream Maker
Automatic: Full-automatic Warranty: One Year
Key Selling Points: Automatic PLC Brand: Schneider
High Light:

3500pcs/h Ice Cream Cone Making Machine

,

Wheat Ice Cream Cone Making Machine



High Efficiency Ice Cream Cone Manufacturing Machine , Cone Ice Cream Maker



Two Color Save Gas 3500pcs/h Ice Cream Cone Making Machine 0



Ice Cream Cone Manufacturing Machine Working Principle

The whole machine is controlled by Schneider PLC, operated by the main motor, roller , solenoid valve and air fan, the baking plate of the machine is heated, after it shows about 180℃, the mixed batter will be pumped in a certain adjusted amount to the baking plate by the discharging pump, and automatically close the baking plate. The pastry is adjusted in a certain thickness, then the driving wheel drives baking plate into the oven from the upper and lower fire flame nozzle, after baking, the mixed batter has become a pastry, the machine hand accurately put the pastry into the roll mold to form finished product, after de-moulding, the finished product is sent out.





Ice Cream Cone Manufacturing Machine Introduction



This machine consists of single-baking machine,filling machine, mixing machine, and forming machine.
Machine use of high-quality electrical components, thermostat using Promise thermostat, one-person operation, convenient and practical. Continuous automatic filling material.Temperature control freely.

Waffle cone and egg rolls look beautiful, the entrance of crisp, making simple investment, high returns ,are the most popular current food.





Ice Cream Cone Manufacturing Machine Parameters



Name SD80-37x2 High Efficiency Ice Cream Cone Manufacturing Machine , Cone Ice Cream Maker
Total power 3.37kw Output/hour 3500-4000pcs/h
LPG consumption 7-8kg/h Electrical accessories Schneider
Machine dimension L8XW2.1XH2M PLC controller Schneider
Net weight 4500kg Controller Schneider





Ice Cream Cone Manufacturing Machine Specifications of other model



Model Input power Machine dimension weight LPG consumption Baking plate quantity/machine Product size(mm) Output/hour
SD80-37x2 3.37kw L8XW2.1XH2M 4500kg 7-8kg/h 37 135mm 3500-4000pcs/h
SD80-37A 3.37kw L6.6xW2.1xH2m 3800kg 5-6kg/h 37 165mm 1800-2000pcs/h
SD80-45x2 3.37kw L8.6XW2.1XH2M 5000kg 10-12kg/h 45 135mm 4500-5000pcs/h
SD80-61x2 4.07kw L12.2xW2.1xH2M 7000kg 16-18kg/h 61 135mm 6000-7000pcs/h
SD80-61A 4.37kw L9.8xW2.1xH2m 6000kg 10-12kg/h 61 165mm 3400-3800pcs/h
SD80-69x2 4.37kw L13.5xW2.1xH2M 7800kg 18-20kg/h 69 135mm 7000-7500pcs/h
SD80-69A 4.37kw L11xW2.1xH2m 6800kg 14-16kg/h 69 165mm 3800-4200pcs/h

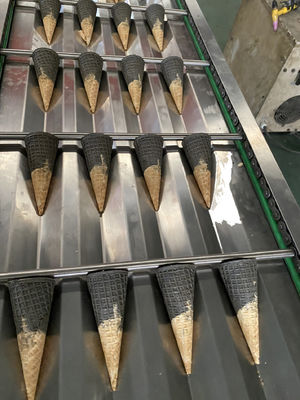

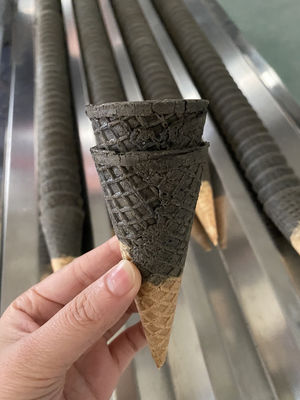

Ice Cream Cone Manufacturing Machine Final Products



Two Color Save Gas 3500pcs/h Ice Cream Cone Making Machine 1



FAQ



1. Ask:What is your guarantee of machine ?

Answer:usually our guarantee is 1 years.

2. Can you arrange your technicians to install the machine for us?

Answer:Yes,We will assign our engineers to go abroad for installing machines for our users.

3. Ask:About the machine voltage or power of machine ?

Answer:Usually in our country is 220v,50hz, single phase,or 380v,50hz,3 phase.if you have the special requirement,pls tell us, we will vetify the voltage according to your requirement.
