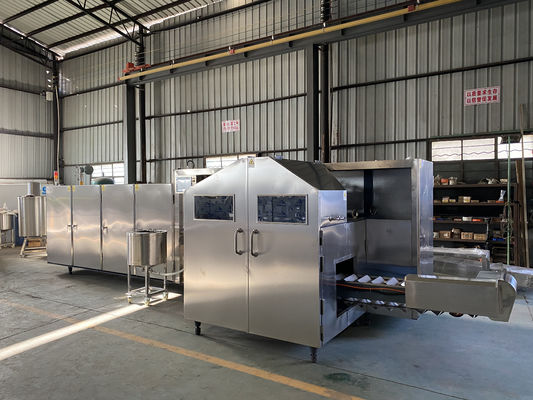

Touch Screen 8kg/H Ice Cream Cone Making Machine

SD80-45x2 High Quality Waffle Bowl Maker Sugar Ice Cream Cone Make Production Line Crispy Cone Making Machine

The Ice Cream Cone Making Machine is fully automatic to make ice cream cone with high quality.The Fully Automatic Ice Cream Cone Machine can make sugar rolled cone,egg roll,round thin biscuit,wafer biscuit and bowl-shaped cup.We can design the different baking machines to make different types of sugar rolled cones as required by clients.

Features of ice cream cone production line:

1. Automatic wafer baking oven equipped with Touch-screen and programmed by Siemens. PLC Software,this unit is of natural gas to generate the heat energy to make ice cream cone

2. The equipment is easy to operate which with automatic temperature control,lighting  to finish the baking process.

3. From filling flour paste to get a ice cream cone just need 2mins,one time molding.High efficiency.

Model:SD80-45x2

Voltage: 380V

Total Power: 3.37 kw

LPG consumption: 8-10kg/h

Capacity: 4000-5000 pcs/h

Dimension: L8.7xW2.1xH1.8m

Net weight: 5000kg

Description of the Electrical accessories

Electrical accessories: Schneider

Controller: Schneider

Working principle:

Feeding the mixed flour paste by feeding pump to the baking plate and automatically close the baking plate, forming as the thickness of the dough, then put into the oven to bake.After baking ,the paste has forming.Using the manipulator to put it in the mould of rolling to make the finished products.after demould conveyor the products.

Working Process of biscuit cone machine
Full automatic filling paste,baking,rolling and conveying-cooling-counting.
The same machine can make different products within round biscuit,sugar rolled cone, egg roll with changing the different forming devices.
The size of the finished cones is within 145mm long can be customized according customer’s requirements, such as angle,width,depth,figure and thickness.
Electric heating and gas heating can be choosen from.

Ice Cream Cone Making Machine Advantage

1. Automated
2. Advanced heating system
3. Durable innoxious cone mould as per sanitation standard
4. Temperature adjustable
5. High-efficient heating element ensures ideal production ability.
6. Different types of moulds according to your choice.
7. A relay unit controls baking time.
