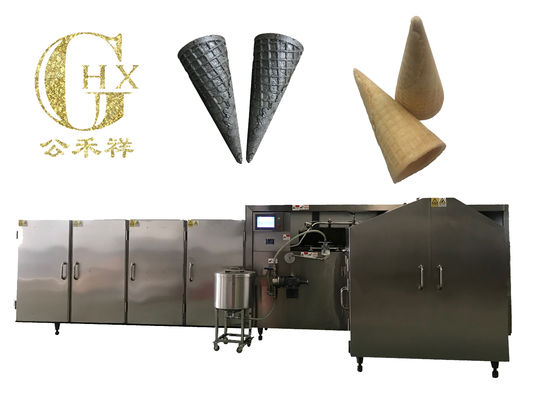

8kg/H Commercial Ice Cream Cone making Machine Schneider Control

SD80-45x2 automatic ramp sweet cone baking machine

Full automatic commercial ice cream sugar rolled cone baking machine

Product details:

The stirred dough is sent to the baking plate bottom plate by the blanking pump, and the panel of the baking plate is automatically closed, and the dough cake is shaped according to the thickness of the set cake, and then the rotating plate is turned into a baking plate. It is baked in an oven consisting of upper and lower fire nozzles. After baking, the noodle paste has become a dough cake. The robot cake accurately feeds the dough cake into the roll mold and rolls it into a finished product. The finished product is delivered.

Features of  Ice Cream Cone Making Machine

Different size,angle,thickness,depth ice cream cone can be customized.

Full automatic filling paste,baking,rolling and conveying-counting.

Double Layered Panel Door. It reduces heat loss from the oven, saving energy and keeping the panel cool.

Gas system. Auto ignition system is installed. Special design nozzle to give clear blue flames and increase energy efficiency. Universal burner allow LPG, natural gas and some other type fuel.

The machines have characteristics with energy-saving, safety, sanitation, high capacity and easy operation. Meanwhile, we can design and make different models according to the requirements from different customers.

Model:SD80-45x2

Voltage: 380V

Total Power: 3.37 kw

LPG consumption: 8-10kg/h

Capacity: 4000-5000 pcs/h

Dimension: L8.7xW2.1xH1.8m

Net weight: 5000kg

Controller: Schneider

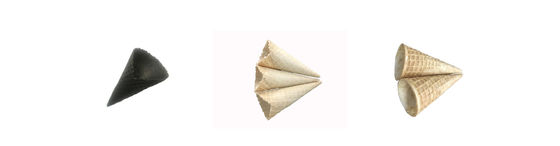

The size of the finished cones is within 145mm long can be customized according customer’s requirements, such as angle,width,depth,figure and thickness.
Electric heating and gas heating can be choosen from.

Ice Cream Cone Making Machine Advantage:

1.Temperature adjustable

2.High-efficient heating element ensures ideal production ability.

3.Different types of mould according to your choice.

4.A relay unit controls baking time.
