Stainless Steel 10kg/H Ice Cream Cone Making Machine

Stainless Steel 10kg/H Ice Cream Cone Making Machine

Stainless Steel 10kg/H Ice Cream Cone Making Machine
Stainless Steel 10kg/H Ice Cream Cone Making Machine
Stainless Steel 10kg/H Ice Cream Cone Making Machine
Product Details:
Place of Origin: China
Brand Name: Gonghexiang
Certification: ISO
Model Number: SD80-45x2
Payment & Shipping Terms:
Minimum Order Quantity: 1PS
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Automatic: Full-automatic VoltagE: 380V
Total Power: 3.37 Kw LPG Consumption: 8-10kg/h
Capacity: 4000-5000 Pcs/h Net Weight: 5000kg
Dimension: L8.7xW2.1xH1.8m Warranty: One Year
Material: Stainless Steel Function: Multifunctional
Feature: High Efficiency Key Selling Points: Low Noise Level
High Light:

10kg/H Ice Cream Cone Making Machine

,

145mm Ice Cream Cone Making Machine

,

Sugar Cone Wafer Processing Equipment

SD80-45x2 Two Color High Quality Waffle Bowl Maker Sugar Ice Cream Cone Make Production Line Crispy Cone Making Machine







Quick Detail



The stirred dough is sent to the baking plate bottom plate by the blanking pump, and the panel of the baking plate is automatically closed, and the dough cake is shaped according to the thickness of the set cake, and then the rotating plate is turned into a baking plate. It is baked in an oven consisting of upper and lower fire nozzles. After baking, the noodle paste has become a dough cake. The robot cake accurately feeds the dough cake into the roll mold and rolls it into a finished product. The finished product is delivered.



Stainless Steel 10kg/H Ice Cream Cone Making Machine 0



Stainless Steel 10kg/H Ice Cream Cone Making Machine 1



Features of ice cream cone production line:

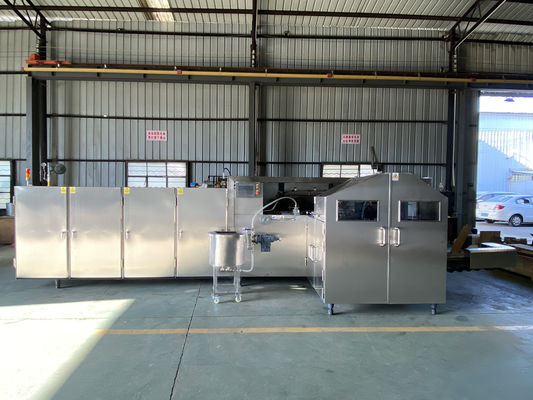

Ice cream cone machine is driven by the 3phase power and baking oven is heating with gas(natural gas or liquid gas).The producing ability is very high and automatic ice cream cone machine is all automatic from spraying the batter,baking,forming,falling off from molds,conveying products,stacking and counting.



Model:SD80-45x2

Voltage380V

Total Power3.37 kw

LPG consumption8-10kg/h

Capacity4000-5000 pcs/h

DimensionL8.7xW2.1xH1.8m

Net weight5000kg

Description of the Electrical accessories

Electrical accessoriesSchneider

Controller: Schneider



Place of Origin: Guangdong Guangzhou
Brand Name:
Certification: ISO-9001
Model Number: SD80-45x2



Minimum Order Quantity: 1PS
Price: negotiation
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply







Working Process of biscuit cone machine
Full automatic filling paste,baking,rolling and conveying-cooling-counting.
The same machine can make different products within round biscuit,sugar rolled cone, egg roll with changing the different forming devices.

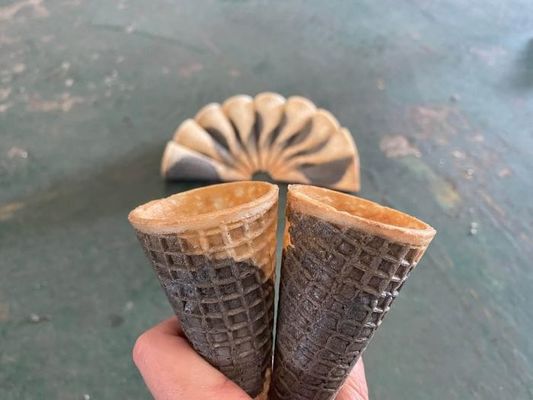

The size of the finished cones is within 145mm long can be customized according customer’s requirements, such as angle,width,depth,figure and thickness.
Electric heating and gas heating can be choosen from.





After Sale Service



1. Warranty policy one year from shipment

2. We will send you the replacement after received the broken part

3. Evaluate the customs rish and choose safest shipping company before shipping.

4. Follow status up time by time until the goods arrived.



Packaging & Shipping



1. We always use standard export wooden packing,carton box.

2. You can choose express, by air,by train or by sea.Always we will give our best recommend based on our experience.

3. We cooperate with China best shipping company to get best price and fast delivery.

4. You will get full feedback when your machine is on the way.

Stainless Steel 10kg/H Ice Cream Cone Making Machine 2
