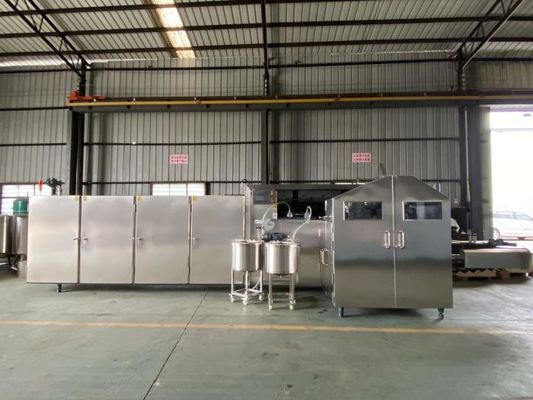

L6.6xW2.1xH2m Ice Cream Cone Biscuit Making Machine With PLC Systerm

L6.6xW2.1xH2m Ice Cream Cone Biscuit Making Machine With PLC Systerm

L6.6xW2.1xH2m Ice Cream Cone Biscuit Making Machine With PLC Systerm
L6.6xW2.1xH2m Ice Cream Cone Biscuit Making Machine With PLC Systerm
L6.6xW2.1xH2m Ice Cream Cone Biscuit Making Machine With PLC Systerm
Product Details:
Place of Origin: China
Brand Name: Gonghexiang
Certification: ISO
Model Number: SD80-37A
Payment & Shipping Terms:
Minimum Order Quantity: 1PS
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Net Weight: 3800kg VoltagE: 380V
Total Power: 3.37 Kw LPG Consumption: 5-6kg/h
Capacity: 1800-2000pcs/h Dimension: L6.6xW2.1xH2m
Application Fields: Snack Food Factory, Beverage Factory Automatic: Full-automatic
Warranty: One Year Feature: Energy Saving , High Speed
Power Source: Gas Process: Baking
High Light:

Ice Cream Cone Biscuit Making Machine

,

PLC Cone Biscuit Making Machine

L6.6xW2.1xH2m Ice Cream Cone Biscuit Making Machine with PLC systerm ​





Voltage: 380V

Total Power3.37 kw

LPG consumption: 5-6kg/h

Capacity1800-2000pcs/h

Dimension: L16.6xW2.1xH2m

Net weight: 3800kg

Description of the Electrical accessories

Electrical accessoriesFrench brand: Schneider

PLC Controller: French brand : Schneider

L6.6xW2.1xH2m Ice Cream Cone Biscuit Making Machine With PLC Systerm 0



Working principle:



Feeding the mixed flour paste by feeding pump to the baking plate and automatically close the baking plate, forming as the thickness of the dough, then put into the oven to bake. after baking, the paste has forming. using the manipulator to put it in the mould of rolling to make the finished products. after demould conveyor the products.



Length:160mmL6.6xW2.1xH2m Ice Cream Cone Biscuit Making Machine With PLC Systerm 1



Standard equipment

1, conveyor

L6.6xW2.1xH2m Ice Cream Cone Biscuit Making Machine With PLC Systerm 2

It is used to deliver the finished products to the assembly shop in a neat line.

Voltage: 220V

Power: 0.75kw

Dimension: L5mxW0.6mxH0.7m

Standard:L 5M x W0.5M x H0.5M



2, Receiver

L6.6xW2.1xH2m Ice Cream Cone Biscuit Making Machine With PLC Systerm 3

It is used for stacking the product into a string for convenient counting and packing.



Standard:L 1.5M x W0.4M x H0.7M





Product requirements: Suitable for natural side products with a length of 165mm or less, and a small output of 1800-2200 pieces/hour.



Features:



Different size,angle,thickness,depth ice cream cone can be customized.

Full automatic filling paste,baking,rolling and conveying-counting.



Double Layered Panel Door. It reduces heat loss from the oven, saving energy and keeping the panel cool.



FAQ



Q:How could we operate such equipment after getting it in our country.

A:We will teach our customer the operation process,and provide them the operating video.

Q:What is the payment terms?

A:After getting the 30% deposit,we will arrange for our workers to produce machine;The rest 70% should be paid before shipment.

Q: Can you arrange your technicians to install the machine for us?

A:Yes,We will assign our engineers to go abroad for installing machines for our users.

Q:Ask:About the machine voltage or power of machine ?

A:Usually in our country is 220v,50hz, single phase,or 380v,50hz,3 phase.if you have the special requirement,pls tell us, we will vetify the voltage according to your requirement.

Q: Ask:how to install the machine ?

A:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .
