17.5 Degree Full Automatic Ice Cream Cone Machine Sugar Cone Production Line

17.5 Degree Full Automatic Ice Cream Cone Machine Sugar Cone Production Line

17.5 Degree Full Automatic Ice Cream Cone Machine Sugar Cone Production Line
17.5 Degree Full Automatic Ice Cream Cone Machine Sugar Cone Production Line
17.5 Degree Full Automatic Ice Cream Cone Machine Sugar Cone Production Line
Product Details:
Place of Origin: China
Brand Name: Gonghexiang
Certification: ISO
Model Number: SD80-45A
Payment & Shipping Terms:
Minimum Order Quantity: 1PS
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Name: Ice Cream Cone Machine Raw Material: Wheat, Wheat Flour
Net Weight: 4800kg VoltagE: 380V
Total Power: 3.37 Kw LPG Consumption: 7-8kg/h
Capacity: 2200-2500pcs/h Dimension: L8xW2.1xH2m
Warranty: One Year Product Size:: Length Below 165mm
High Light:

2200pcs/h Automatic Ice Cream Cone Machine

,

3.37kw Automatic Ice Cream Cone Machine

,

17.5 Degree Sugar Cone Production Line

17.5 Degree Full Automatic Ice Cream Cone Machine , Sugar Cone Production Line

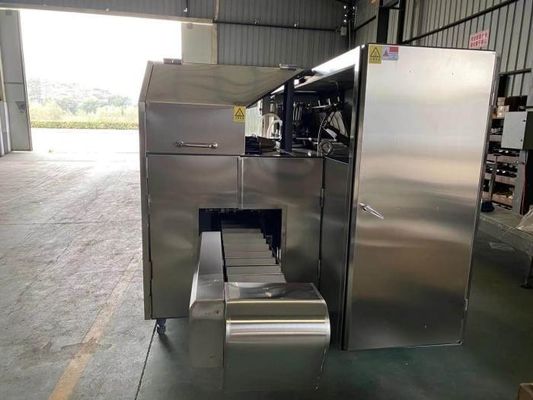

17.5 Degree Full Automatic Ice Cream Cone Machine Sugar Cone Production Line 0



Working principle:



SD80-45A tunnel type automatic sugar cone making machine is a kind of PLC control, high degree of automation, high production efficiency, stable performance of the production machinery





The stirred dough is sent to the baking plate bottom plate by the blanking pump, and the panel of the baking plate is automatically closed, and the dough cake is shaped according to the thickness of the set cake, and then the rotating plate is turned into a baking plate. It is baked in an oven consisting of upper and lower fire nozzles. After baking, the noodle paste has become a dough cake. The robot cake accurately feeds the dough cake into the roll mold and rolls it into a finished product. The finished product is delivered.

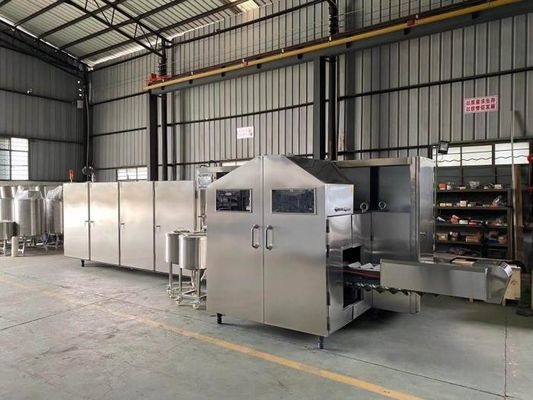

17.5 Degree Full Automatic Ice Cream Cone Machine Sugar Cone Production Line 1



Voltage:380V

Total Power: 3.37kw

LPG consumption: 7-8kg/h

Capacity:2200-2500pcs/h

Dimension:L8xW2.1xH2m

Net weight:4800kg

Electrical accessories:French brand: Schneider

Controller:French brand : Schneider

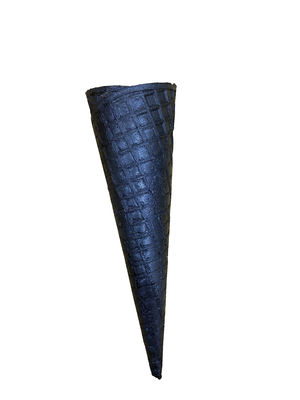

17.5 Degree Full Automatic Ice Cream Cone Machine Sugar Cone Production Line 2



Advantage of Ice Cream Cone Baking Machine

1. Easy Operation
2. Advanced heating system
3. Durable innoxious cone mould as per sanitation standard
4. Temperature adjustable
5. High-efficient heating element ensures ideal production ability.
6. Different types of moulds according to your choice.
7. A relay unit controls baking time.






FAQ



1. Ask:What is your guarantee of machine ?

Answer:usually our guarantee is 1 years.

2. Can you arrange your technicians to install the machine for us?

Answer:Yes,We will assign our engineers to go abroad for installing machines for our users.

3. Ask:About the machine voltage or power of machine ?

Answer:Usually in our country is 220v,50hz, single phase,or 380v,50hz,3 phase.if you have the special requirement,pls tell us, we will vetify the voltage according to your requirement.

4. Ask:how to install the machine ?

Answer:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .



Our Services


♥. Pre-sale-service:Design and manufacture machines for you as your special requirement, provide you with project, process design and pruchase program.



♥. On-sale-service: Accompany with you to look around our factory, explain the manufacture process of our machines and check the working performance of our machine.



♥. After-sale-service: Engineers are available to install debugging equipments of the whole production line, besides, commissioning and training operators on site.



After Sale Service



1. Warranty policy one year from shipment

2. We will send you the replacement after received the broken part

3. Evaluate the customs rish and choose safest shipping company before shipping.

4. Follow status up time by time until the goods arrived.
