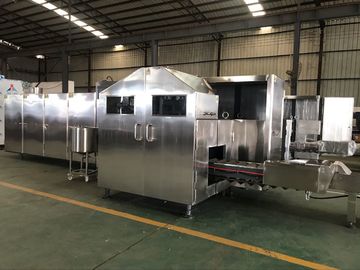

380V 3.37Kw Sugar Cone Making Machine For Snack Food Factory

380V 3.37Kw Sugar Cone Making Machine For Snack Food Factory

380V 3.37Kw Sugar Cone Making Machine For Snack Food Factory
380V 3.37Kw Sugar Cone Making Machine For Snack Food Factory
380V 3.37Kw Sugar Cone Making Machine For Snack Food Factory
Product Details:
Place of Origin: China
Brand Name: Gonghexiang
Certification: ISO
Model Number: SD80-45x2
Payment & Shipping Terms:
Minimum Order Quantity: 1PS
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Dimension: L8.7xW2.1xH1.8m VoltagE: 380V
Total Power: 3.37 Kw LPG Consumption: 8-10kg/h
Capacity: 4000-5000 Pcs/h Net Weight: 5000kg
Function: Multifunctional Application Fields: Snack Food Factory, Beverage Factory
Warranty: One Year Advantage: Cost-effective
Type: Processing Line
High Light:

3.37Kw Sugar Cone Making Machine

,

Multifunctional Sugar Cone Making Machine

,

10kg/h Sugar Cone Making Machine

Factory Price 5000kg 3.37Kw 380V Sugar Cone Making Machine For Snack Food Factory



380V 3.37Kw Sugar Cone Making Machine For Snack Food Factory 0


Working Principle: Feeding the mixed flour paste by feeding pump to the baking plate and automatically close the baking plate, forming as the thickness of the dough, then put into the oven to bake. after baking, the paste has forming. using the manipulator to put it in the mould of rolling to make the finished products. after demould conveyor the products.



380V 3.37Kw Sugar Cone Making Machine For Snack Food Factory 1

Features of ice cream cone production line:


1. Automatic wafer baking oven equipped with Touch-screen and programmed by Siemens. PLC Software,this unit is of natural gas to generate the heat energy to make ice cream cone

2. The equipment is easy to operate which with automatic temperature control,lighting to finish the baking process.

3. From filling flour paste to get a ice cream cone just need 2mins,one time molding.High efficiency.




Model:SD80-45x2
Voltage380V
Total Power3.37 kw
LPG consumption8-10kg/h
Capacity4000-5000 pcs/h
DimensionL8.7xW2.1xH1.8m
Net weight5000kg

Description of the Electrical accessories
Electrical accessoriesSchneider
Controller: Schneider




FAQ


1. How about your after-sales service?
Our engineer can go outside to install and train your workers to operate the full machine line.





2. Ask:how to install the machine ?

Answer:we can intrust the install the machine by video,email,picture.....if large project,we can arrange the worker help you to install it in your country .

3. Ask:Are there any accessories for the purchase of the machine?

Answer:Yes,We will give away random accessories and some installation tools.
