Guang Zhou Jian Xiang Machinery Co. LTD

|
| Place of Origin: | China |
| Brand Name: | Gonghexiang |
| Certification: | ISO |
| Model Number: | SD80-37A |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45DAYS |
| Payment Terms: | T/T |
| Supply Ability: | Sufficient supply |
| Dimension: | L16.6xW2.1xH2m | Capacity: | 1800-2000pcs/h |
|---|---|---|---|
| VoltagE: | 380V | LPG Consumption: | 5-6kg/h |
| Feature: | Saving Energy | Marketing Type: | New Product 2020 |
| Process: | Thermal Processing | Power Source: | Gas |
| Core Components: | PLC, Engine | Type: | Roasting Machine |
| High Light: | Sugar Ice Cream Cone Making Machine,5kg/H Ice Cream Cone Making Machine,Gas Power Tunnel Cone Making Machine |
||

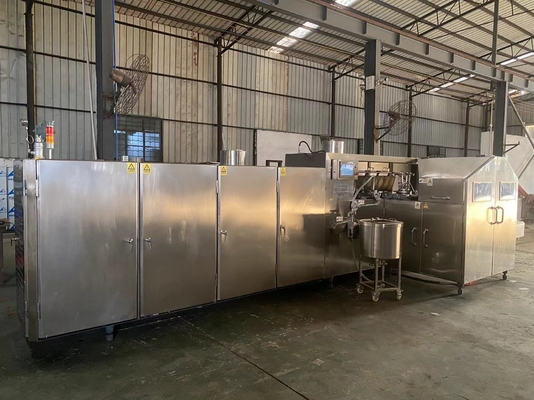

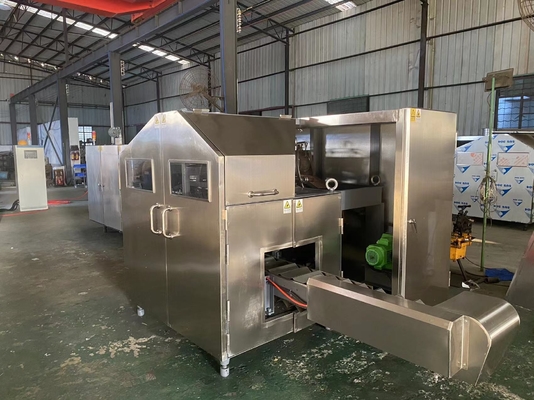

Factory Price Gas Power Tunnel 5kg/H Sugar Ice Cream Cone Making Machine
SD80-37A tunnel-type full automatic sugar cone making machine for sale
Pump the batter automatically from the batter tank and spray on baking plates precisely. Batter quantity can be adjusted to make cones with different sizes on one machine.
· Durable Baking Plates:
Made of high-qualified ductile cast iron and easy to clean. Still keeping good after decade use. Designed in a way to optimize heat distribution. Precise limiting ring is engraved for flat top cone only.
· Double Layered Panel Door
The oven is encased with insulated doors. It reduces heat loss, saves energy and keeps the panel cool.
Voltage: 380V
Total Power: 3.37 kw
LPG consumption: 5-6kg/h
Capacity: 1800-2000pcs/h
Dimension: L16.6xW2.1xH2m
Net weight: 3800kg
Length:160mm
Features of ice cream cone production line:
1. Automatic wafer baking oven equipped with Touch-screen and programmed by Siemens. PLC Software,this unit is of natural gas to generate the heat energy to make ice cream cone
2. The equipment is easy to operate which with automatic temperature control,lighting to finish the baking process.
3. From filling flour paste to get a ice cream cone just need 2mins,one time molding.High efficiency.
Product requirements: Suitable for natural side products with a length of 165mm or less, and a small output of 1800-2200 pieces/hour.
