Guang Zhou Jian Xiang Machinery Co. LTD
 |
| Place of Origin: | China |
| Brand Name: | Gonghexiang |
| Certification: | ISO |
| Model Number: | SD80-45A |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45DAYS |
| Payment Terms: | T/T |
| Supply Ability: | Sufficient supply |
| Features: | Factory Price | Name: | Ice Cream Waffle Production Line |
|---|---|---|---|
| VoltagE: | 380V | Total Power: | 3.37 Kw |
| LPG Consumption: | 7-8kg/h | Capacity: | 2200-2500pcs/h |
| Dimension: | L8xW2.1xH2m | Net Weight: | 4800kg |
| Application Fields: | Snack Food Factory, Beverage Factory | Advantage: | Cost-effective |
| Core Components: | Motor | ||
| High Light: | 7kg/H Automatic Ice Cream Cone Machine,LPG Automatic Ice Cream Cone Machine,2200pcs/h Ice Cream Waffle Production Line |
||

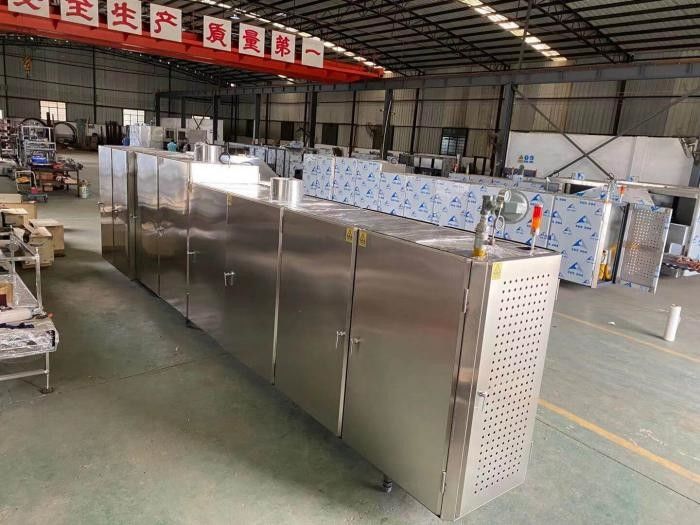

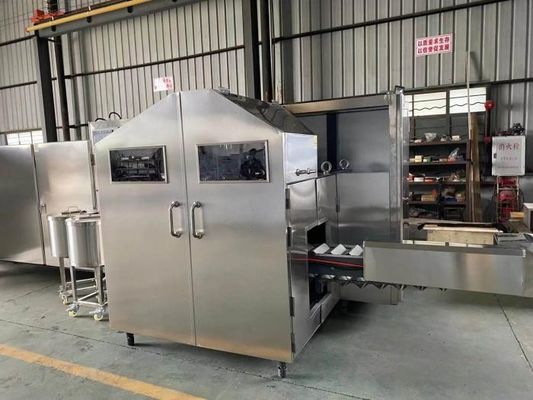

7-8kg/H LPG Consumption 380V 3.37 Kw Automatic Ice Cream Cone Machine
Automatic Ice Cream Maker Sugar Cone Baking Making Machine

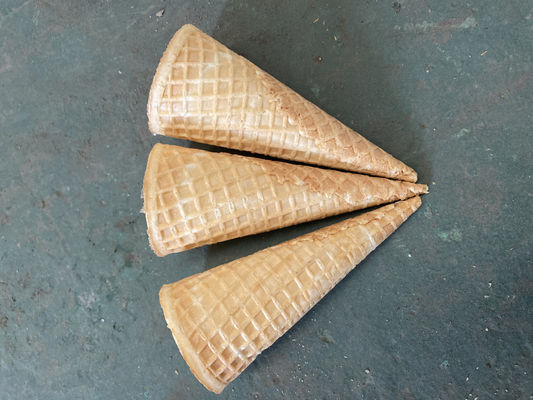

This ice cream sugar cone making machine is used for rolling sugar cones. it offer cones to the next process to be filled with ice cream. first it dispenses batter on the baking plates to prepare the wafers for shaping,then rolls them up, keep them in shape transfer them on the food grad conveyor. excellent performances have allowed international standards to be comfortably met.
This production line is used to inject the batter into the baking plate, and then baked into thin biscuit sheet, and is automatically roll into ice cream cones. The cone made by this machine is crispy and refreshing.
Voltage:380V
Total Power: 3.37kw
LPG consumption: 7-8kg/h
Capacity:2200-2500pcs/h
Dimension:L8xW2.1xH2m
Net weight:4800kg
Electrical accessories:French brand: Schneider
Controller:French brand : Schneider
| Model | Input power | Machine dimension | weight | LPG consumption | Baking plate quantity/machine | Product size(mm) | Output/hour |
| SD80-37x2 | 3.37kw | L8XW2.1XH2M | 4500kg | 7-8kg/h | 37 | 135mm | 3500-4000pcs/h |
| SD80-L37X2 | 3.37kw | L8XW2.1XH2M | 4500kg | 7-8kg/h | 37 | 135mm | 3500-4000pcs/h |
| SD80-37A | 3.37kw | L6.6xW2.1xH2m | 3800kg | 5-6kg/h | 37 | 165mm | 1800-2000pcs/h |
| SD80-45x2 | 3.37kw | L8.6XW2.1XH2M | 5000kg | 10-12kg/h | 45 | 135mm | 4500-5000pcs/h |
| SD80-L45X2 | 3.37kw | L8.6XW2.1XH2M | 5000kg | 10-12kg/h | 45 | 135mm | 4500-5000pcs/h |
| SD80-45A | 3.37kw | L8xW2.1xH2m | 4800kg | 7-8kg/h | 45 | 165mm | 2200-2500pcs/h |
Standard equipment:
1,conveyor
Voltage:220V
Power:0.75kw
Dimension: 5mx0.6mx0.7m
It is used to deliver the finished products to the assembly shop in a neat line.
2,Receiver
Standard:L 1.5M x W0.4M x H0.7M
It is used for stacking the product into a string for convenient counting and packing.
After Sale Service
1. Warranty policy one year from shipment
2. We will send you the replacement after received the broken part
3. Evaluate the customs rish and choose safest shipping company before shipping.
4. Follow status up time by time until the goods arrived.
Q: Can you arrange your technicians to install the machine for us?
A: Yes,We will assign our engineers to go abroad for installing machines for our users.
Q: How about delivery?
A:We can help you transport, or we can provide you with the size of the machine, you can consult the forwarding company yourself.
Q:What's the MOQ?
A:The MOQ(minimum order quantity) is one set.
Packaging & Shipping
1. We always use standard export wooden packing,carton box.
2. You can choose express, by air,by train or by sea.Always we will give our best recommend based on our experience.
3. We cooperate with China best shipping company to get best price and fast delivery.
4. You will get full feedback when your machine is on the way.
