Guang Zhou Jian Xiang Machinery Co. LTD

|
| Place of Origin: | China |
| Brand Name: | Gonghexiang |
| Certification: | ISO |
| Model Number: | SD80-45A |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45DAYS |
| Payment Terms: | T/T |
| Supply Ability: | Sufficient supply |
| Features: | Factory Price | Name: | Ice Cream Waffle Production Line |
|---|---|---|---|
| Total Power: | 3.37 Kw | LPG Consumption: | 7-8kg/h |
| Net Weight: | 4800kg | Capacity: | 2200-2500pcs/h |
| Dimension: | L8xW2.1xH2m | Key Selling Points: | High-accuracy |
| Advantage: | Cost-effective | Core Components: | PLC, Engine |
| Type: | Processing Line | ||
| High Light: | Full Automatic Ice Cream Cone Machine,Automatic Ice Cream Cone Machine 7kg/H |
||

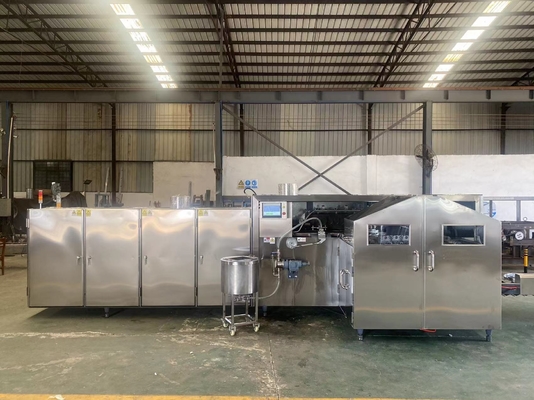

Full Automatic Ice Cream Cone Machine 7kg/H 380V
Automatic Ice Cream Maker Sugar Cone Baking Making Machine
Ice cream cone machine is driven by the 3phase power and baking oven is heating with gas(natural gas or liquid gas).The producing ability is very high and automatic ice cream cone machine is all automatic from spraying the batter,baking,forming,falling off from molds,conveying products,stacking and counting.
Voltage:380V
Total Power: 3.37kw
LPG consumption: 7-8kg/h
Capacity:2200-2500pcs/h
Dimension:L8xW2.1xH2m
Net weight:4800kg
Electrical accessories:French brand: Schneider
Controller:French brand : Schneider
| Model | Input power | Machine dimension | weight | LPG consumption | Baking plate quantity/machine | Product size(mm) | Output/hour |
| SD80-37x2 | 3.37kw | L8XW2.1XH2M | 4500kg | 7-8kg/h | 37 | 135mm | 3500-4000pcs/h |
| SD80-L37X2 | 3.37kw | L8XW2.1XH2M | 4500kg | 7-8kg/h | 37 | 135mm | 3500-4000pcs/h |
| SD80-37A | 3.37kw | L6.6xW2.1xH2m | 3800kg | 5-6kg/h | 37 | 165mm | 1800-2000pcs/h |
| SD80-45x2 | 3.37kw | L8.6XW2.1XH2M | 5000kg | 10-12kg/h | 45 | 135mm | 4500-5000pcs/h |
| SD80-L45X2 | 3.37kw | L8.6XW2.1XH2M | 5000kg | 10-12kg/h | 45 | 135mm | 4500-5000pcs/h |
| SD80-45A | 3.37kw | L8xW2.1xH2m | 4800kg | 7-8kg/h | 45 | 165mm | 2200-2500pcs/h |
Standard equipment:

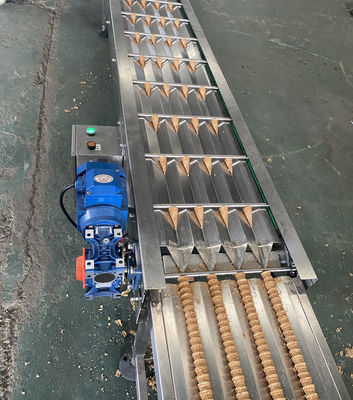

1,conveyor
Voltage:220V
Power:0.75kw
Dimension: 5mx0.6mx0.7m
It is used to deliver the finished products to the assembly shop in a neat line.
2,Receiver
Standard:L 1.5M x W0.4M x H0.7M
It is used for stacking the product into a string for convenient counting and packing.
After Sale Service
1. Warranty policy one year from shipment
2. We will send you the replacement after received the broken part
3. Evaluate the customs rish and choose safest shipping company before shipping.
4. Follow status up time by time until the goods arrived.
Q: Can you arrange your technicians to install the machine for us?
A: Yes,We will assign our engineers to go abroad for installing machines for our users.
Q: How about delivery?
A:We can help you transport, or we can provide you with the size of the machine, you can consult the forwarding company yourself.
Q:What's the MOQ?
A:The MOQ(minimum order quantity) is one set.
Packaging & Shipping
1. We always use standard export wooden packing,carton box.
2. You can choose express, by air,by train or by sea.Always we will give our best recommend based on our experience.
3. We cooperate with China best shipping company to get best price and fast delivery.
4. You will get full feedback when your machine is on the way.
