Guang Zhou Jian Xiang Machinery Co. LTD

|
| Place of Origin: | China |
| Brand Name: | Gonghexiang |
| Certification: | ISO |
| Model Number: | SD80-45A |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 30-45DAYS |
| Payment Terms: | T/T |
| Supply Ability: | Sufficient supply |
| Packaging Details: | Container | Name: | Ice Cream Waffle Production Line |
|---|---|---|---|
| Total Power: | 3.37 Kw | LPG Consumption: | 7-8kg/h |
| Net Weight: | 4800kg | Dimension: | L8xW2.1xH2m |
| Capacity: | 2200-2500pcs/h | Automatic: | Full-automatic |
| Key Selling Points: | Long Service Life | Process: | Thermal Processing |
| High Light: | Automatic Ice Cream Cone Making Machine,8kg/H Ice Cream Cone Making Machine |
||

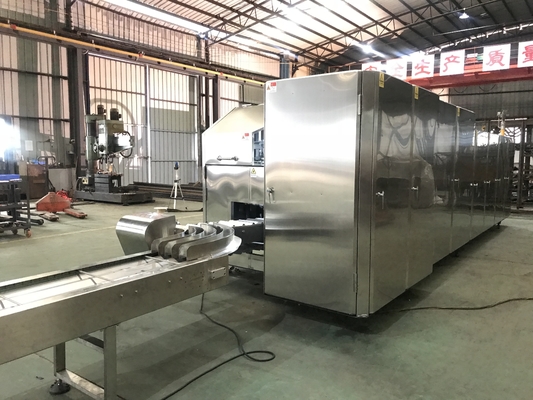

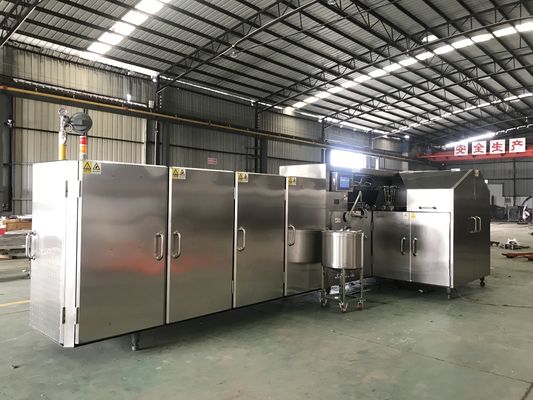

380V 3.37 Kw Automatic Super Cone Machine With 7-8kg/H LPG Consumption
Working principle:
The batter is fed through a feed pump into a baking tray, which is automatically closed, shaped to the thickness of the dough, and then placed in the oven to bake. After baking, the batter is formed, and the mechanical hand is put into the rolling mold to make the finished product. After demoulding, the finished product is transported.
| Voltage | 380V |
| Total Power | 3.37kw |
| LPG consumption | 7-8kg/h |
| Capacity | 2200-2500pcs/h |
| Dimension | L8xW2.1xH2m |
| Net weight | 4800kg |
| Electrical accessories | French brand: Schneider |
| Controller | French brand : Schneider |
Standard equipment:
1,conveyor
Voltage:220V
Power:0.75kw
Dimension: 5mx0.6mx0.7m
It is used to deliver the finished products to the assembly shop in a neat line.
2,Receiver
Standard:L 1.5M x W0.4M x H0.7M
It is used for stacking the product into a string for convenient counting and packing.
Features of ice cream cone production line:
1.The production of crisp and delicious products, uniform color.
2.Heating temperature automatic adjustment, using thermostat, accurate temperature control.
3.Automatic feeding, adjustable amount of material, simple adjustment.
Our Services
Pre-sales service: Design and manufacture machines according to your special requirements, provide you with solutions, process design and procurement solutions.
In-sale service: Accompany you to visit our factory, explain the manufacturing process of our machines, check the working performance of our machines.
After-sales service: engineers on-site installation of the whole production line debugging equipment, on-site debugging and training of operators.
