Guang Zhou Jian Xiang Machinery Co. LTD

|
| Place of Origin: | China |
| Brand Name: | Gonghexiang |
| Certification: | ISO |
| Model Number: | SD80-45A |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45DAYS |
| Payment Terms: | T/T |
| Supply Ability: | Sufficient supply |
| Name: | Ice Cream Waffle Production Line | VoltagE: | 380V |
|---|---|---|---|
| Total Power: | 3.37 Kw | LPG Consumption: | 7-8kg/h |
| Capacity: | 2200-2500pcs/h | Dimension: | L8xW2.1xH2m |
| Net Weight: | 4800kg | Automatic: | Full-automatic |
| Material: | Stain Steel | Core Components: | Motor |
| Packaging Details: | Container | Type: | Baking Oven |
| High Light: | 7kg/H Automatic Ice Cream Cone Machine,3.37kw Automatic Ice Cream Cone Machine |
||

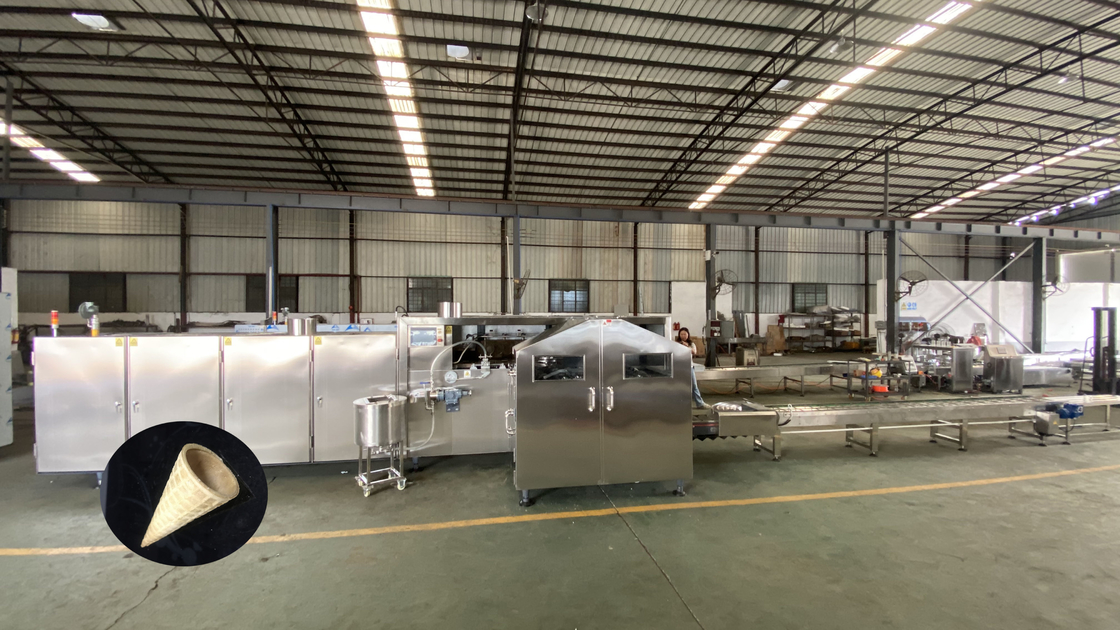

Stain Steel 7kg/H Automatic Ice Cream Cone Machine
SD80-45A Automatic Ice Cream Waffle Maker Sugar Wafer ConesBaking Making Machine
3.37 Kw Full Automatic Ice Cream Cone Machine
Voltage:380V
Total Power: 3.37kw
LPG consumption: 7-8kg/h
Capacity:2200-2500pcs/h
Dimension:L8xW2.1xH2m
Net weight:4800kg
Electrical accessories:French brand: Schneider
Controller:French brand : Schneider
Working principle:
The stirred dough is sent to the baking plate bottom plate by the blanking pump, and the panel of the baking plate is automatically closed, and the dough cake is shaped according to the thickness of the set cake, and then the rotating plate is turned into a baking plate. It is baked in an oven consisting of upper and lower fire nozzles. After baking, the noodle paste has become a dough cake. The robot cake accurately feeds the dough cake into the roll mold and rolls it into a finished product. The finished product is delivered.
Our Services
♥. Pre-sale-service:Design and manufacture machines for you as your special requirement, provide you with project, process design and pruchase program.
♥. On-sale-service: Accompany with you to look around our factory, explain the manufacture process of our machines and check the working performance of our machine.
♥. After-sale-service: Engineers are available to install debugging equipments of the whole production line, besides, commissioning and training operators on site.
After Sale Service
1. Warranty policy one year from shipment
2. We will send you the replacement after received the broken part
3. Evaluate the customs rish and choose safest shipping company before shipping.
4. Follow status up time by time until the goods arrived.
FAQ
1. How about your after-sales service?
Our engineer can go outside to install and train your workers to operate the full machine line.
2. Ask:About the machine voltage or power of machine ?
Answer:Usually in our country is 220v,50hz, single phase,or 380v,50hz,3 phase.if you have the special requirement,pls tell us, we will vetify the voltage according to your requirement.
3.Ask: Are you factory or trading company?
Answer: We are a factory in this field nearly 20 years.
