115mm 10kg/H Waffle Cone Making Machine Full Automatic

115mm 10kg/H Waffle Cone Making Machine Full Automatic

115mm 10kg/H Waffle Cone Making Machine Full Automatic
115mm 10kg/H Waffle Cone Making Machine Full Automatic
115mm 10kg/H Waffle Cone Making Machine Full Automatic
Product Details:
Place of Origin: China
Brand Name: Gonghexiang
Certification: ISO
Model Number: WH23-10
Contact Now
Detailed Product Description
Model: WH23-10 Power: 2.25KW
Gas Consumption Of Liquefied Gas: 10-12kg/h Capacity: 3000-3500pcs/h
Product Specifications: 120mm Material: Stain Steel
Packaging Details: Container Control: PLC Controlled
Feature: Stable Performance
High Light:

10kg/H Waffle Cone Making Machine

,

115mm Waffle Cone Making Machine

,

Waffle Cone Making Machine Full Automatic

Full Automatic Space Saving Waffle Cone Making Machine Steel Structure



Working Principle:

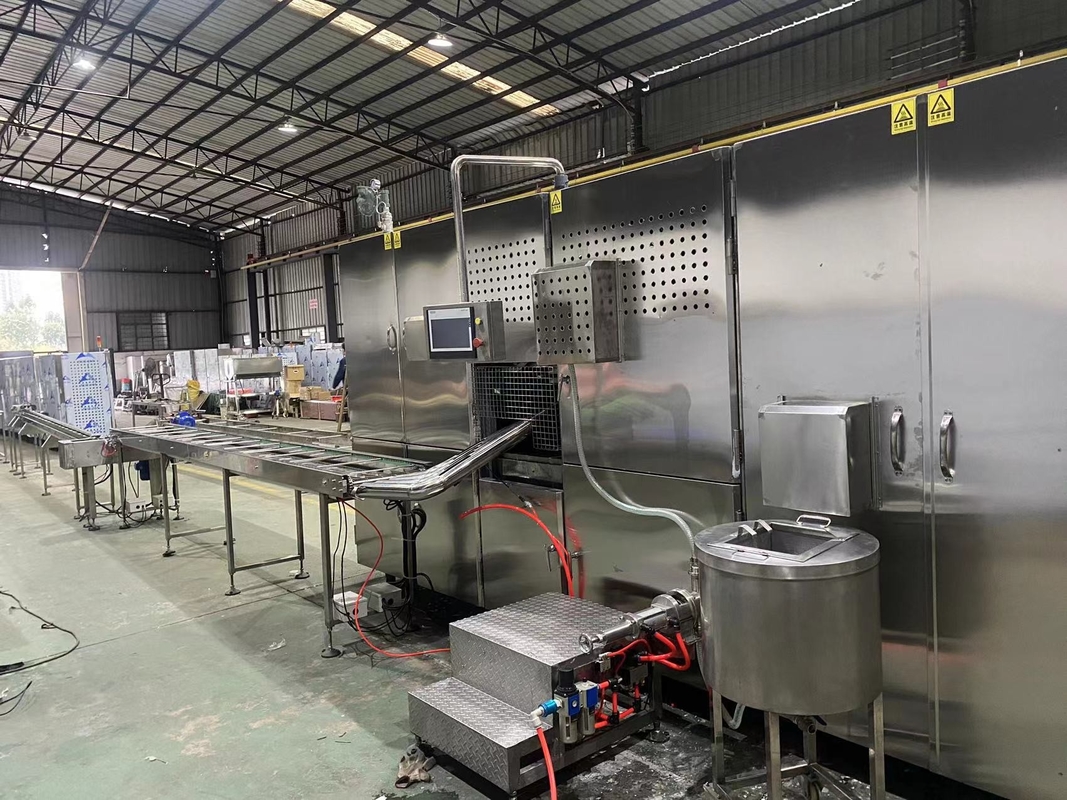

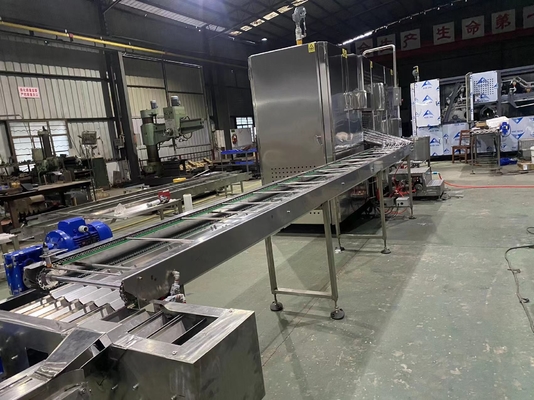

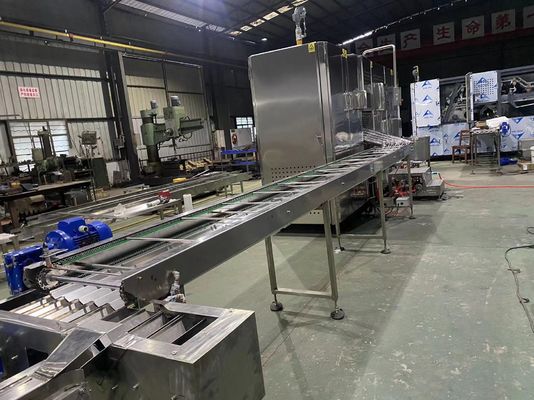

Automatic cone baking machine is composed of electric control system, die system, automatic opening and closing mold, gas system and so on. It is a kind of food machinery equipment for the production of ice cream wafer cones. Through continuous operations such as beating, baking, lining, demoulding and conveyor stacking, different shapes and styles of wafer cones can be made with different molds. The machine is controlled by PLC, with automatic ignition, acceleration and deceleration, demoulding arrangement automatic stacking and other functions, greatly reducing the work intensity of personnel, improve the work efficiency.





115mm 10kg/H Waffle Cone Making Machine Full Automatic 0

115mm 10kg/H Waffle Cone Making Machine Full Automatic 1





Model WH23-10
Number of molds (pcs) 23
Total power (kw) 3.37
Product specification (mm) 100-115
Conveyor 5 slots
Output (pcs/h) 4000-5000
Compressed air pressure (MPa) 0.7
Gas consumption of liquefied gas(kg/h) 14-16





After Sale Service



1. Warranty policy one year from shipment

2. We will send you the replacement after received the broken part

3. Evaluate the customs rish and choose safest shipping company before shipping.

4. Follow status up time by time until the goods arrived.





Q: Can you arrange your technicians to install the machine for us?

A: Yes,We will assign our engineers to go abroad for installing machines for our users.

Q: How about delivery?

A:We can help you transport, or we can provide you with the size of the machine, you can consult the forwarding company yourself.

Q:What's the MOQ?

A:The MOQ(minimum order quantity) is one set.

Q:How could we operate such equipment after getting it in our country.



Welcome to contact us with your cone pictures,design,size and capacity then we can talk more and suggest you the suitable ice cream cone machines.
