Guang Zhou Jian Xiang Machinery Co. LTD

|
| Place of Origin: | China |
| Brand Name: | Gonghexiang |
| Certification: | ISO |
| Model Number: | SD80-45A |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45DAYS |
| Payment Terms: | T/T |
| Supply Ability: | Sufficient supply |
| Name: | Ice Cream Waffle Production Line | VoltagE: | 380V |
|---|---|---|---|
| Total Power: | 3.37 Kw | Capacity: | 2200-2500pcs/h |
| LPG Consumption: | 7-8kg/h | Net Weight: | 4800kg |
| Dimension: | L8xW2.1xH2m | Type: | Processing Line |
| Application: | Fastening | Power Source: | Gas |
| Advantage: | Cost-effective | Key Selling Points: | Long Service Life |
| High Light: | Two Color Automatic Ice Cream Cone Machine,Stain Steel Automatic Ice Cream Cone Machine |
||

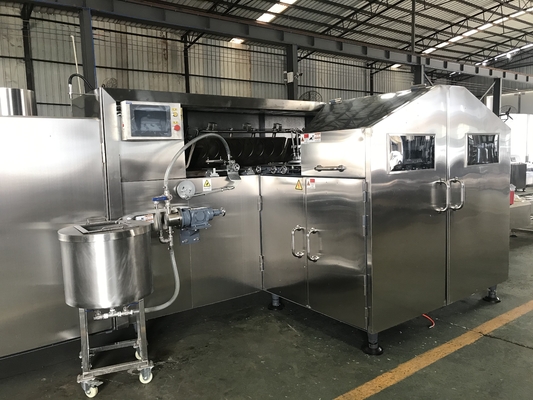

Two color Stain Steel 7kg/H Automatic Ice Cream Cone Machine 3.37kw 380V
Stain Steel 7kg/H Automatic Ice Cream Cone Machine
SD80-45A Automatic Ice Cream Waffle Maker Sugar Wafer ConesBaking Making Machine
3.37 Kw Full Automatic Ice Cream Cone Machine
Voltage:380V
Total Power: 3.37kw
LPG consumption: 7-8kg/h
Capacity:2200-2500pcs/h
Dimension:L8xW2.1xH2m
Net weight:4800kg
Electrical accessories:French brand: Schneider
Controller:French brand : Schneider
Working principle:
The stirred dough is sent to the baking plate bottom plate by the blanking pump, and the panel of the baking plate is automatically closed, and the dough cake is shaped according to the thickness of the set cake, and then the rotating plate is turned into a baking plate. It is baked in an oven consisting of upper and lower fire nozzles. After baking, the noodle paste has become a dough cake. The robot cake accurately feeds the dough cake into the roll mold and rolls it into a finished product. The finished product is delivered.
Our Services
♥. Pre-sale-service:Design and manufacture machines for you as your special requirement, provide you with project, process design and pruchase program.
♥. On-sale-service: Accompany with you to look around our factory, explain the manufacture process of our machines and check the working performance of our machine.
♥. After-sale-service: Engineers are available to install debugging equipments of the whole production line, besides, commissioning and training operators on site.
Features of ice cream cone production line:
1. Automatic feeding, adjustable amount of material, and the adjustment is simple.
2. Using a special process, non-stick layer heating plate.
3.The overall use of stainless steel frame welded pipe, never rust, easy to clean.
4.The speed can be adjusted, high capacity, suitable for high demand for processing manufacturers use.
