Automatic Ice Cream Cone Baking Machine For Sugar Cone / Waffle Basket

Automatic Ice Cream Cone Baking Machine For Sugar Cone / Waffle Basket

  • Automatic Ice Cream Cone Baking Machine For Sugar Cone / Waffle Basket
  • Automatic Ice Cream Cone Baking Machine For Sugar Cone / Waffle Basket
Automatic Ice Cream Cone Baking Machine For Sugar Cone / Waffle Basket
Product Details:
Place of Origin: China
Brand Name: 公禾祥
Certification: ISO
Model Number: SD80-61x2
Payment & Shipping Terms:
Minimum Order Quantity: 1PS
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Capacity: 6000-7000pcs/h Function: Multifunctional
VoltagE: 380V Total Power: 4.07kw
LPG Consumption: 16-18kg/h Dimension: L12.2xW2.1xH2M
Net Weight: 7000kg Raw Material: Wheat, Wheat Flour
Application Fields: Snack Food Factory, Beverage Factory Automatic: Full-automatic
Warranty: One Year Material: Stainless Steel
Certification: ISO9001 Application: Ice Cream Cone Production Line, Ice Cream
Feature: Energy Saving Product Size:: Length Below 135mm
High Light:

sugar cone baking machine

,

rolled sugar cone machine

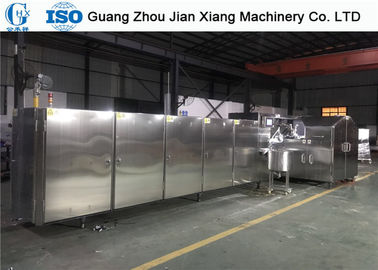

SD80-61x2 Automatic Ice Cream Cone Baking Machine For Sugar Cone / Waffle Basket


SD80-61x2 tunnel type automatic sugar cone making machine is a kind of PLC control, high degree of automation, high production efficiency, stable performance of the production machinery.


Quick Detail
The stirred dough is sent to the baking plate bottom plate by the blanking pump, and the panel of the baking plate is automatically closed, and the dough cake is shaped according to the thickness of the set cake, and then the rotating plate is turned into a baking plate. It is baked in an oven consisting of upper and lower fire nozzles. After baking, the noodle paste has become a dough cake. The robot cake accurately feeds the dough cake into the roll mold and rolls it into a finished product. The finished product is delivered.


Voltage:380vProduct size:less than 135mm
Total power:4.07kwOutput/hour:6000-7000pcs/h
LPG consumption:16-18kg/hElectrical accessoriesSchneider
Machine dimension:L12.2xW2.1xH2MPLC controller:Schneider
Net weight:7000kgController:Schneider




ModelInput powerMachine dimensionweightLPG consumptionBaking plate quantity/machineProduct size(mm)Output/hour
SD80-37x23.37kwL8XW2.1XH2M4500kg7-8kg/h37135mm3500-4000pcs/h
SD80-37A3.37kwL6.6xW2.1xH2m3800kg5-6kg/h37165mm1800-2000pcs/h
SD80-45x23.37kwL8.6XW2.1XH2M5000kg10-12kg/h45135mm4500-5000pcs/h
SD80-45A3.37kwL8xW2.1xH2m4800kg7-8kg/h45165mm2200-2500pcs/h
SD80-53x23.37kwL10.3xW2.1xH1.8m5800kg10-12kg/h53135mm5000-6000pcs/h
SD80-53A3.37kwL8.5xW2.1xH2m5300kg8-10kg/h53165mm2800-3200pcs/h
SD80-61x24.07kwL12.2xW2.1xH2M7000kg16-18kg/h61135mm6000-7000pcs/h
SD80-61A4.37kwL9.8xW2.1xH2m6000kg10-12kg/h61165mm3400-3800pcs/h
SD80-69x24.37kwL13.5xW2.1xH2M7800kg18-20kg/h69135mm7000-7500pcs/h
SD80-69A4.37kwL11xW2.1xH2m6800kg14-16kg/h69165mm3800-4200pcs/h

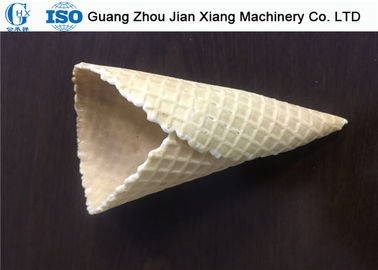

Final Products

Automatic Ice Cream Cone Baking Machine For Sugar Cone / Waffle Basket 0Automatic Ice Cream Cone Baking Machine For Sugar Cone / Waffle Basket 1


Our Services
♥. Pre-sale-service:Design and manufacture machines for you as your special requirement, provide you with project, process design and pruchase program.

♥. On-sale-service: Accompany with you to look around our factory, explain the manufacture process of our machines and check the working performance of our machine.

♥. After-sale-service: Engineers are available to install debugging equipments of the whole production line, besides, commissioning and training operators on site.

After Sale Service

1. Warranty policy one year from shipment
2. We will send you the replacement after received the broken part
3. Evaluate the customs rish and choose safest shipping company before shipping.

4. Follow status up time by time until the goods arrived.

Packaging & Shipping

1. We always use standard export wooden packing,carton box.
2. You can choose express, by air,by train or by sea.Always we will give our best recommend based on our experience.
3. We cooperate with China best shipping company to get best price and fast delivery.
4. You will get full feedback when your machine is on the way.

Company Profile
Automatic Ice Cream Cone Baking Machine For Sugar Cone / Waffle Basket 2
      Guangzhou Jianxiang Machinery Co., Ltd. has more than 20 years of experience in the production of mechanical products. Now the company has strong technical force, advanced equipment and normative management after many years of struggle and technology accumulation. Our business partner Guangzhou GongHeXiang Machinery Co., Ltd, is the most famous automatic sugar cone baking machine manufacturer in China. The sugar cone baking machine and batter mixer we produce for GongHeXiang had been sold to over 20 provinces in China and exported to many oversea countries like Russia, Kyrgyzstan, Uzbekistan, Turkey, Argentina, Vietnam, Syria, French Polynesia, Egypt, Peru, India etc.

In order to meet market needs and customer’s demand, besides the most regular TT25 sugar cone baking machine, we developed new model TT25-40, TT25-36 and TT25-30 of the TT25 series. TT26 series are electric baking machine which include model TT26-45, TT26-40, TT26-36 and TT26-30. SD80 series are the most advanced caterpillar track type baking machine, which include model SD80-37x2 and model SD80-53x2.

Different machine can meet your different requirement for sugar cone size and your demand for production capacity. After so many years of development, our company had truly become the most professional sugar cone baking machine manufacturer in China.

Customer first, quality first and user-oriented is key to our service. Our company always provide customer with high quality product and good service and we will constantly strive for excellence. We believe our reasonable offer and thoughtful after-sales service can allow users achieve a real “buy peace of mind was at ease with”. We warmly welcome both new and current customer to call for further inquiry or to come and discuss cooperation.
