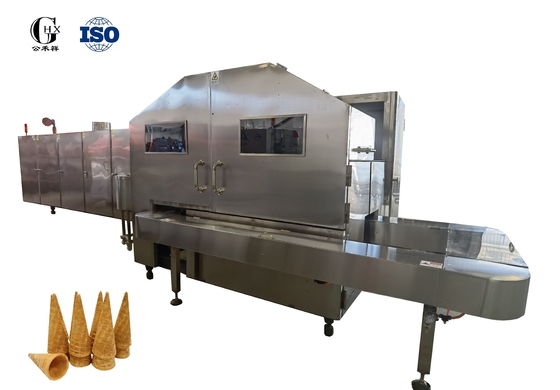

3.37kw PLC Control Full Automatic Sugar Cone Making Machine in 304 Stainless Steel

3.37kw PLC Control Full Automatic Sugar Cone Making Machine in 304 Stainless Steel

3.37kw PLC Control Full Automatic Sugar Cone Making Machine in 304 Stainless Steel
3.37kw PLC Control Full Automatic Sugar Cone Making Machine in 304 Stainless Steel
3.37kw PLC Control Full Automatic Sugar Cone Making Machine in 304 Stainless Steel
Product Details:
Place of Origin: China
Brand Name: Gonghexiang
Certification: ISO
Model Number: SD80-45x3
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Container
Supply Ability: 45 working days
Contact Now
Detailed Product Description
Machine Model: SD80-45x3 Material: #304 Stainless Steel
Total Power: 3.37kw Control: PLC Control
Production Process: Full Automatic Key Words: Ice Cream Sugar Cone Making Machine
Control System: SIEMENS/DELTA Warranty: One Year
Voltage: 380v Production Capacity: 6000-7500pcs/Hour
Gas Consumption: 8-10kgs/Hour After-sales Service: On-site Installation, Comissioning And Training
Machine Size: 8.7m X 2.1m X 2m

3.37kw PLC Control Full Automatic Sugar Cone Making Machine in 304 Stainless Steel





Machine Description


This sugar cone making machine is controlled by SIEMENS/DELTA PLC system which make it easy to operate and maintain. Equipped with 3-phrase motor ensure its' efficient and repliable performance. The ice cream cone baking machine is made of high quality material that can withstand the demands of high-volume production. This rolled sugar cone baking machine with high level of automation which can greatly save your manpower and ensure the stability of your cone quality. Our production line can complete the entire sugar cone making process from cone baking, shaping, demolding, conveying etc.



In conclusion, the Rolled Sugar Cone Making Machine is an excellent investment for any ice cream or food factory. It is a high-efficiency sugar cone making machine that is fully automatic and easy to operate. With a production capacity of 6000-7500 cones per hour, this sugar cone maker can significantly increase production output. Its PLC control system and uniform production capabilities make it a must-have for businesses that want to produce high-quality sugar cones consistently.



Key words: High quality sugar cone baking machine, Full automatic rolled sugar cone making machine, Industrial sugar cone making machine





Machine Model


SD80-45x3





Features


1. High quality and durable material: #304 Stainless steel, steel rack, copper cone mold, heat-resistant cast iron with high thermal insulation performance for baking plates.

2. Easy control system: SIEMENS/DELTA PLC system

3. High Productivity: 6000-7500pcs per hour

4. Three-layer body insulation door: Providing more effective insulation and external heat isolation.

5. Application Fields: Ice Cream Factory, Food Factory





Technical Parameters:

Total Power

3.37kw

Voltage

380v

Production capacity

6000-7500pcs/Hour

Gas Consumption

8-10kgs/Hour

Machine dimension

8.7x2.1x2 (meter)

No. of baking plates

45pcs

Cone of each baking plate

3pcs per baking plate

Material

#304 Stainless Steel, steel rack

Warranty

One year

Control System

SIEMENS/DELTA PLC Control

Machine dimension

8.7x2.1x2 (meter)

Feature



High productivity, efficient, full automatic





Sugar Cone Specification




Cone Shape Flat-top cone
Cone Length 60-75mm
Angle 20°-24°
Cone Diameter Depends on the length and angle of your cone
Size of engravement Customized
Cone Feature Mini
Cone Application Chocolate cone





3.37kw PLC Control Full Automatic Sugar Cone Making Machine in 304 Stainless Steel 0





Customization


The configuration of our equipment can be customized according to the different requirements of customers, including
1. Different cone size

2. Different cone shape

3. Different cone color

4. Different production capacity requirement

5. Customize the different product conveying directions of the machine according to the customer's actual factory layout

6. The configuration of the production line can be customized as required.





Support & Service


The Sugar Cone Making Machine is a precision-engineered machine designed for efficient and high-quality production of sugar cones.

1. Our technical support team is available to assist you with any questions or concerns you may have about the machine. We offer a range of services to ensure your machine is running at its best, including installation, maintenance, repair, and replacement of parts.

2. Our team of experienced technicians is trained to handle any issue that may arise with the machine and will work with you to find a solution quickly and efficiently.

3. We also offer training services to help you and your team operate the machine safely and effectively.



Contact us to learn more about how we can support you in maximizing the performance of your Sugar Cone Making Machine.

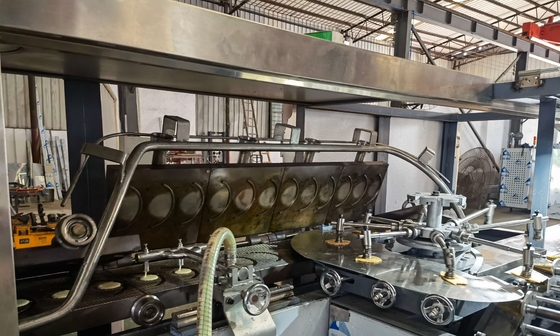

Factory Workshop


3.37kw PLC Control Full Automatic Sugar Cone Making Machine in 304 Stainless Steel 1





Jianxiang Company Introduction


• Guangzhou Jianxiang Machinery Co., Ltd. is an enterprise with over 20 years of history in the production of mechanical products. Through years of hard work and accumulation, the company has established itself as a technologically robust, well-equipped, and civically managed entity. Our company specializes in the production and sales of the Gonghexiang brand's fully automatic sugar cone baking machine, including TT25 series and SD80 series. With a solid technological foundation and advanced production equipment, we have successfully expanded our market presence. Our products have been distributed to more than twenty provinces and cities nationwide, and have been exported to various countries, including Russia, Kyrgyzstan, Uzbekistan, Turkey, Argentina, Vietnam, Syria, French Polynesia, Egypt, Peru, India, Brazil, and many others.


• The company adheres to the principle of "Customer First, Quality First, and Reputation First," constantly striving for excellence. We consistently provide customers with excellent product quality, reasonable pricing, and comprehensive and thoughtful after-sales service. We ensure that customers are happy with their purchases and confident in their usage, earning high praise from a wide range of users.
