ISO 3.37kw Ice Cream Cone Maker Machine With PLC Control

ISO 3.37kw Ice Cream Cone Maker Machine With PLC Control

ISO 3.37kw Ice Cream Cone Maker Machine With PLC Control
ISO 3.37kw Ice Cream Cone Maker Machine With PLC Control
ISO 3.37kw Ice Cream Cone Maker Machine With PLC Control
Product Details:
Place of Origin: China
Brand Name: GongHeXiang
Certification: ISO
Model Number: SD80-45x2
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Dimension: L8.7xW2.1xH2 M Voltage: 380V
Input Power: 3.37kw LPG Consumption: 8-10kg/h
Capacity: 4000-5000pcs/h Net Weight: 5000Kg
Raw Material: Wheat, Wheat Flour Application Fields: Snack Food Factory, Beverage Factory
Automatic: Full-automatic Warranty: One Year
Key Selling Points: Energy Saving Material: 304 Stain Steel
High Light:

3.37kw Ice Cream Cone Maker

,

PLC Ice Cream Cone Maker



Ice cream cone maker machine with PLC control

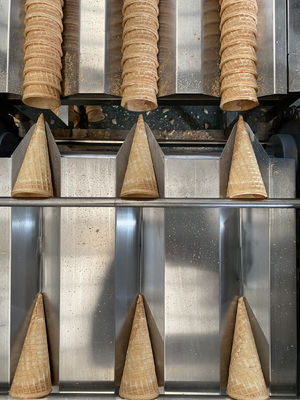

ISO 3.37kw Ice Cream Cone Maker Machine With PLC Control 0



Working Principle

The whole machine is controlled by Schneider PLC, operated by the main motor, roller , solenoid valve and air fan, the baking plate of the machine is heated, after it shows about 180℃, the mixed batter will be pumped in a certain adjusted amount to the baking plate by the discharging pump, and automatically close the baking plate. The pastry is adjusted in a certain thickness, then the driving wheel drives baking plate into the oven from the upper and lower fire flame nozzle, after baking, the mixed batter has become a pastry, the machine hand accurately put the pastry into the roll mold to form finished product, after de-moulding, the finished product is sent out.



ISO 3.37kw Ice Cream Cone Maker Machine With PLC Control 1

Advantage

  1. Easy Operation
  2. Advanced heating system
  3. Durable innoxious cone mould as per sanitation standard
  4. Temperature adjustable
  5. High-efficient heating element ensures ideal production ability.
  6. Different types of moulds according to your choice.
  7. A relay unit controls baking time.

Parameters



Name SD80-45x2
Voltage 380v Product size 120mm
Total power 3.37kw Output/hour 4000-5000pcs/h
LPG consumption 8-10kg/h Electrical accessories Schneider
Machine dimension L8.7xW2.1xH2 M PLC controller Schneider
Net weight 50000kg Controller Schneider





Package:



ISO 3.37kw Ice Cream Cone Maker Machine With PLC Control 2





FAQ



1. Ask:What is your guarantee of machine ?

Answer:usually our guarantee is 1 years.

2. Can you arrange your technicians to install the machine for us?

Answer:Yes,We will assign our engineers to go abroad for installing machines for our users.

3. Ask:About the machine voltage or power of machine ?

Answer:Usually in our country is 220v,50hz, single phase,or 380v,50hz,3 phase.if you have the special requirement,pls tell us, we will vetify the voltage according to your requirement.

4. Ask:how to install the machine ?

Answer:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .
