44mm Bread 4.2m³/H Automatic Egg Roll Making Machine

44mm Bread 4.2m³/H Automatic Egg Roll Making Machine

  • 44mm  Bread 4.2m³/H Automatic Egg Roll Making Machine
  • 44mm  Bread 4.2m³/H Automatic Egg Roll Making Machine
44mm  Bread 4.2m³/H Automatic Egg Roll Making Machine
Product Details:
Place of Origin: China
Brand Name: Gonghexiang
Certification: ISO
Model Number: TT25
Payment & Shipping Terms:
Minimum Order Quantity: 1PS
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Features: Automatic Compressed Air Pressure: 0.6MPa
Gas Consumption: 4Kg/h (4.2m³/h) Input Power: 1.5kw
VoltagE: 380V Dimension: L3.2xW2.7xH2.1M
Net Weight: 3000Kg Raw Material: Milk, Wheat, Water, Flour
Application: Snack Food Of Cracker Biscuit, Wafer Bread Warranty: One Year
Power Source: Gas After-sales Service Provided: Field Installation, Commissioning And Training
High Light:

4.2m³/H Automatic Egg Roll Making Machine

,

44mm Automatic Egg Roll Making Machine



Automatic Egg Roll Making Machine ISO Approved



44mm  Bread 4.2m³/H Automatic Egg Roll Making Machine 0

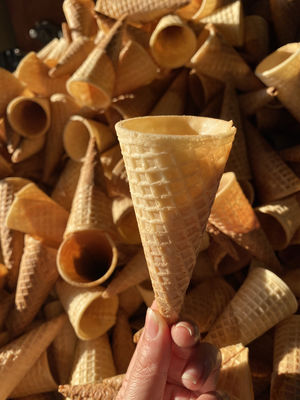

TT25 series automatic baking machine is used for rolling sugar cones.

It offers cones to the next process to be filled with ice cream. First it dispenses batter on the baking plates to prepare the wafers for shaping, and then rolls them up, keep them in shape unload them finally. It is the main device of the production line. Excellent performances have allowed Intentional Standards to be comfortably met.

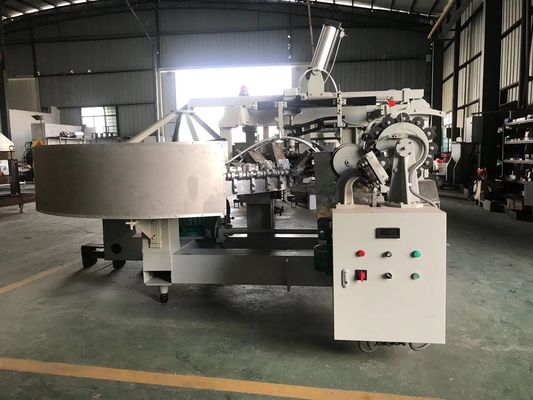

44mm  Bread 4.2m³/H Automatic Egg Roll Making Machine 1

Ice cream cone making machine Introduction



The machine is used for rolling sugar cones. It offers cones to the next process to be filled with ice cream. First it dispenses batter on the baking plates to prepare the wafers for shaping, then rolls them up, keep them in shape unload them finally. It is the main device of the production line. Excellent performances have allowed International Standards to be comfortably met.





The main features:



1. Produced by the crisp and delicious products, uniform color.
2. Heating temperature automatically adjusts, uses the thermostat, the temperature control is accurate.
3. Automatic feeding, adjustable amount of material, and the adjustment is simple.
4. Using a special process, non-stick layer heating plate
5. The overall use of stainless steel frame welded pipe, never rust, easy to clean.
6. Mold can be customized to meet different need.



Model TT25
Voltage 380V
Total Power 1.5Kw
Gas consumption 4Kg/h (4.2m³/h)
Compressed air pressure 0.6MPa
Weight 3000Kg
Dimension of machine (mm) 3200*2700*1900
Product dimension (22.5degree) Diameter 42-48mm
Length 100-115mm
Capacity 2500pieces/h
Product dimension (17.5degree) Diameter 38-44mm
Length 110-125mm
  Capacity 2500pieces/h



 Package:



44mm  Bread 4.2m³/H Automatic Egg Roll Making Machine 2




Our Services
♥. Pre-sale-service:Design and manufacture machines for you as your special requirement, provide you with project, process design and pruchase program.

♥. On-sale-service: Accompany with you to look around our factory, explain the manufacture process of our machines and check the working performance of our machine.

♥. After-sale-service: Engineers are available to install debugging equipments of the whole production line, besides, commissioning and training operators on site.

After Sale Service

1. Warranty policy one year from shipment
2. We will send you the replacement after received the broken part
3. Evaluate the customs rish and choose safest shipping company before shipping.
4. Follow status up time by time until the goods arrived.
