4.07kw 3 Phases 6000pcs/H Sugar Cone Making Machine

4.07kw 3 Phases 6000pcs/H Sugar Cone Making Machine

4.07kw 3 Phases 6000pcs/H Sugar Cone Making Machine
4.07kw 3 Phases 6000pcs/H Sugar Cone Making Machine
4.07kw 3 Phases 6000pcs/H Sugar Cone Making Machine
Product Details:
Place of Origin: China
Brand Name: Gonghexiang
Certification: ISO
Model Number: SD80-53X2
Payment & Shipping Terms:
Minimum Order Quantity: 1PS
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Total Power: 4.07kw Voltage: 380V
Capacity: 5000-6000pcs/h Dimension: L9.8xW2.1xH2M
Net Weight: 5800kg LPG Consumption: 10-12kg/h
Product Size:: Length Below 120mm Automatic: Full-automatic
Key Selling Points: Long Service Life Type: Roasting Machine
High Light:

6000pcs/H Sugar Cone Making Machine

,

4.07kw Sugar Cone Making Machine

,

3 Phases Sugar Cone Making Machine

SD80-53X2 Energy Saving Ice Cream Cone Manufacturing Machine



Specifications:



Voltage: 380v Product size: length less than 120mm
Total power: 4.07kw Output/hour:

5000-6000pcs/h

LPG consumption:

10-12kg/h

Electrical accessories Schneider
Machine dimension:

L9.8xW2.1xH2M

PLC controller: Schneider
Net weight:

5800kg

Controller: Schneider



The machine is driven by the 3 phases power and backing oven is heating with gas (natural gas or liquid gas), electric ignition, oven temperature electronic display. The producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds and conveying products.







Process:

1. The stirred dough is delivered to the baking pans by the slurry pump.

2. The upper and lower plates of the baking plate are automatically closed, and the cakes are baked according to the preset thickness of the cakes.

3. When the baking plate turned to the position of the manipulator(it has been baked already), and the manipulator absorbs baked cake sends them to the forming mold.

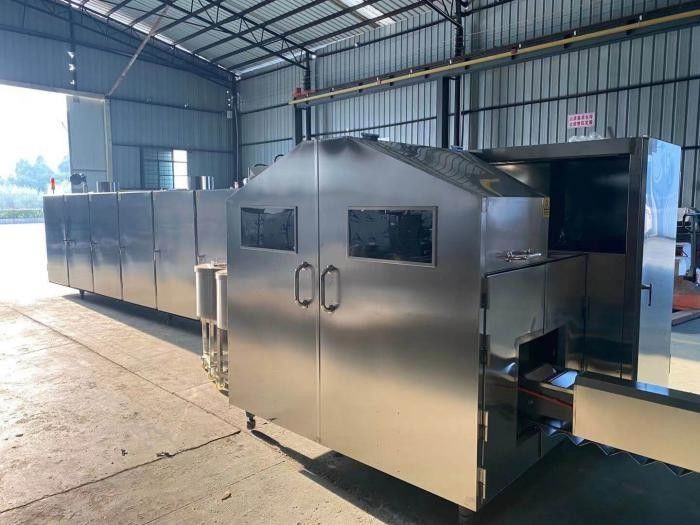

4.07kw 3 Phases 6000pcs/H Sugar Cone Making Machine 0





2.Package



4.07kw 3 Phases 6000pcs/H Sugar Cone Making Machine 1



3. Advantage of Sugar Cone Baking Machine

1. Easy Operation
2. Advanced heating system
3. Durable innoxious cone mould as per sanitation standard
4. Temperature adjustable
5. High-efficient heating element ensures ideal production ability.
6. Different types of moulds according to your choice.
7. A relay unit controls baking time.
