| Brand Name: | GongHeXiang |
| Model Number: | SD80-37x2 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | Sufficient supply |

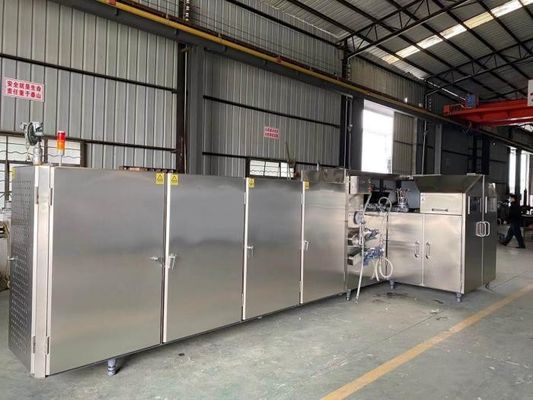

Different color different size sugar cone baking machine
Ice cream cone machine is driven by the 3phase power and baking oven is heating with gas(natural gas or liquid gas).The producing ability is very high and automatic ice cream cone machine is all automatic from spraying the batter,baking,forming,falling off from molds,conveying products,stacking and counting.
Sugar Cone Baking Machine Feature
Double Layered Panel Door. It reduces heat loss from the oven, saving energy and keeping the panel cool.
Gas system. Auto ignition system is installed. Special design nozzle to give clear blue flames and increase energy efficiency. Universal burner allow LPG, natural gas and some other type fuel.
Process:
1. The stirred dough is delivered to the baking pans by the slurry pump.
2. The upper and lower plates of the baking plate are automatically closed, and the cakes are baked according to the preset thickness of the cakes.
3. When the baking plate turned to the position of the manipulator(it has been baked already), and the manipulator absorbs baked cake sends them to the forming mold.
4. The forming mold rolls the cake into a cone shape, and then sends it to the conveyor belt for the arrangement
.
Sugar Cone Baking Machine Parameters
| Name | SD80-37x2 | ||
| Voltage | 380v | Product size | 135mm |
| Total power | 3.37kw | Output/hour | 3500-4000pcs/h |
| LPG consumption | 7-8kg/h | Electrical accessories | Schneider |
| Machine dimension | L8XW2.1XH2M | PLC controller | Schneider |
| Net weight | 4500kg | Controller | Schneider |
FAQ
1. How about your after-sales service?
Our engineer can go outside to install and train your workers to operate the full machine line.
2. Ask:About the machine voltage or power of machine ?
Answer:Usually in our country is 220v,50hz, single phase,or 380v,50hz,3 phase.if you have the special requirement,pls tell us, we will vetify the voltage according to your requirement.
3. Ask:how to install the machine ?
Answer:we can intrust the install the machine by video,email,picture.....if large project,we can arrange the worker help you to install it in your country .
