Tunnel Type Ice Cream Cone Baking Machine With Temperature Adjustable

Tunnel Type Ice Cream Cone Baking Machine With Temperature Adjustable

  • Tunnel Type Ice Cream Cone Baking Machine With Temperature Adjustable
  • Tunnel Type Ice Cream Cone Baking Machine With Temperature Adjustable
  • Tunnel Type Ice Cream Cone Baking Machine With Temperature Adjustable
Tunnel Type Ice Cream Cone Baking Machine With Temperature Adjustable
Product Details:
Place of Origin: China
Brand Name: 公禾祥
Certification: ISO
Model Number: SD80-L53X2
Payment & Shipping Terms:
Minimum Order Quantity: 1PS
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Dimension: L11xW2.1xH2M VoltagE: 380V
Total Power: 4.07kw LPG Consumption: 14-16kg/h
Capacity: 5000-6000pcs/h Net Weight: 6300kg
Function: Multifunctional Raw Material: Wheat, Wheat Flour
Application Fields: Snack Food Factory, Beverage Factory Automatic: Full-automatic
High Light:

sugar cone baking machine

,

auto cone machine

SD80-L53X2 Hot Sale Icecream Cone Rolling And Baking Machine/Commercial Ice Cream Machine for Sale



New generation Ice Cream Cone Machine for sale



1. Working Principle of the Sugar Cone Baking Machie

The whole machine is controlled by Schneider PLC, operated by the main motor, roller , solenoid valve and air fan, the baking plate of the machine is heated, after it shows about 180℃, the mixed batter will be pumped in a certain adjusted amount to the baking plate by the discharging pump, and automatically close the baking plate. The pastry is adjusted in a certain thickness, then the driving wheel drives baking plate into the oven from the upper and lower fire flame nozzle, after baking, the mixed batter has become a pastry, the machine hand accurately put the pastry into the roll mold to form finished product, after de-moulding, the finished product is sent out.

2. Advantage of Sugar Cone Baking Machine

1. Easy Operation
2. Advanced heating system
3. sturdy harmless cone mould as per sanitation commonplace
4. Temperature adjustable
5. High-efficient element ensures ideal production ability.
6. differing kinds of moulds per your alternative.
7. A relay unit controls baking time.





Specifications:



Voltage: 380v Product size: length less than 135mm
Total power: 4.07kw Output/hour:

5000-6000pcs/h

LPG consumption:

14-16kg/h

Electrical accessories Schneider
Machine dimension:

L11xW2.1xH2M

PLC controller: Schneider
Net weight:

6300kg

Controller: Schneider

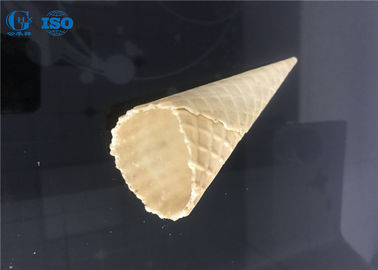

Final Products

Tunnel Type Ice Cream Cone Baking Machine With Temperature Adjustable 0Tunnel Type Ice Cream Cone Baking Machine With Temperature Adjustable 1



FAQ



1. Ask:What is your guarantee of machine ?

Answer:usually our guarantee is 1 years.

2. Can you arrange your technicians to install the machine for us?

Answer:Yes,We will assign our engineers to go abroad for installing machines for our users.

3. Ask:About the machine voltage or power of machine ?

Answer:Usually in our country is 220v,50hz, single phase,or 380v,50hz,3 phase.if you have the special requirement,pls tell us, we will vetify the voltage according to your requirement.

4. Ask:how to install the machine ?

Answer:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .





Company Profile

Tunnel Type Ice Cream Cone Baking Machine With Temperature Adjustable 2

      Guangzhou Jianxiang Machinery Co., Ltd. has more than 20 years of experience in the production of mechanical products. Now the company has strong technical force, advanced equipment and normative management after many years of struggle and technology accumulation. Our business partner Guangzhou GongHeXiang Machinery Co., Ltd, is the most famous automatic sugar cone baking machine manufacturer in China. The sugar cone baking machine and batter mixer we produce for GongHeXiang had been sold to over 20 provinces in China and exported to many oversea countries like Russia, Kyrgyzstan, Uzbekistan, Turkey, Argentina, Vietnam, Syria, French Polynesia, Egypt, Peru, India etc.



In order to meet market needs and customer’s demand, besides the most regular TT25 sugar cone baking machine, we developed new model TT25-40, TT25-36 and TT25-30 of the TT25 series. TT26 series are electric baking machine which include model TT26-45, TT26-40, TT26-36 and TT26-30. SD80 series are the most advanced caterpillar track type baking machine, which include model SD80-37x2 and model SD80-53x2.



Different machine can meet your different requirement for sugar cone size and your demand for production capacity. After so many years of development, our company had truly become the most professional sugar cone baking machine manufacturer in China.



Customer first, quality first and user-oriented is key to our service. Our company always provide customer with high quality product and good service and we will constantly strive for excellence. We believe our reasonable offer and thoughtful after-sales service can allow users achieve a real “buy peace of mind was at ease with”. We warmly welcome both new and current customer to call for further inquiry or to come and discuss cooperation.
