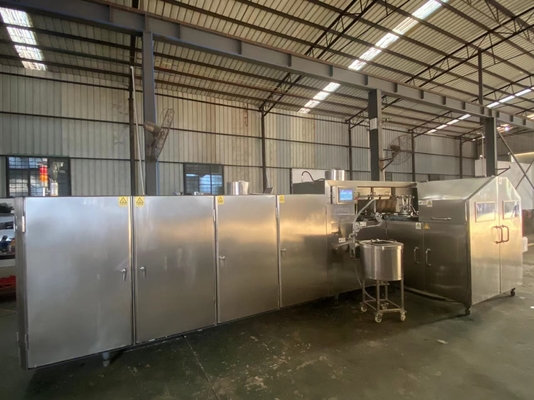

2000pcs/H Automatic Ice Cream Cone Machine PLC Control

2000pcs/H Automatic Ice Cream Cone Machine PLC Control

2000pcs/H Automatic Ice Cream Cone Machine PLC Control
2000pcs/H Automatic Ice Cream Cone Machine PLC Control
2000pcs/H Automatic Ice Cream Cone Machine PLC Control
Product Details:
Place of Origin: China
Brand Name: Gonghexiang
Certification: ISO
Model Number: SD80-37A
Payment & Shipping Terms:
Minimum Order Quantity: 1PS
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Dimension: L16.6xW2.1xH2m Capacity: 1800-2000pcs/h
Total Power: 3.37 Kw LPG Consumption: 5-6kg/h
Size: <165mm Feature: Energy Saving , High Speed
Net Weight: 3800kg Warranty: One Year
Process: Thermal Processing Type: Processing Line
Power Source: Gas Advantage: Cost-effective
High Light:

Automatic Ice Cream Cone Machine

,

2000pcs/H Ice Cream Cone Machine

,

PLC Ice Cream Cone Machine

SD80-37A Ice Cream Cone Making Machine Processing Line Manufacturers



Working Principle:



Feeding the mixed flour paste by feeding pump to the baking plate and automatically close the baking plate, forming as the thickness of the dough, then put into the oven to bake. after baking, the paste has forming. using the manipulator to put it in the mould of rolling to make the finished products. after demould conveyor the products.





2000pcs/H Automatic Ice Cream Cone Machine PLC Control 0



2000pcs/H Automatic Ice Cream Cone Machine PLC Control 1



Voltage380V

Total Power3.37 kw

LPG consumption5-6kg/h

Capacity1800-2000pcs/h

DimensionL16.6xW2.1xH2m

Net weight3800kg

Electrical accessoriesFrench brand: Schneider

PLC Controller: French brand : Schneider









Key Features



1. Using a special process, non-stick layer heating plate.

2.The overall use of stainless steel frame welded pipe, never rust, easy to clean.

3. The speed can be adjusted, high capacity, suitable for high demand for processing manufacturers use.



Standard Equipment

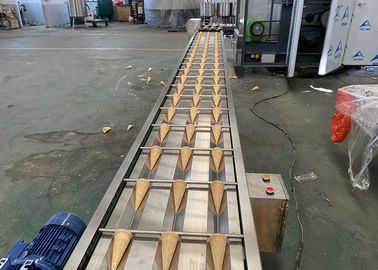

1, conveyor

2000pcs/H Automatic Ice Cream Cone Machine PLC Control 2

It is used to deliver the finished products to the assembly shop in a neat line.

Voltage: 220V

Power: 0.75kw

Dimension: L5mxW0.6mxH0.7m

Standard:L 5M x W0.5M x H0.5M



2, Receiver

2000pcs/H Automatic Ice Cream Cone Machine PLC Control 3

It is used for stacking the product into a string for convenient counting and packing.



Standard:L 1.5M x W0.4M x H0.7M





Ice Cream Cone Making Machine Advantage:

  1. Temperature adjustable
  2. High-efficient heating element ensures ideal production ability.
  3. Different types of mould according to your choice.
  4. A relay unit controls baking time.



FAQ



Q: If we have problems when using this ice cream cone machine, what should we do?

A: If you have any problem, just contact us, we will help you to solve it, and if necessary, we will arrange our engineers to help you in your country.

Q: Can you arrange your technicians to install the machine for us?

A: Yes,We will assign our engineers to go abroad for installing machines for our users.

Q: How about delivery?

A:We can help you transport, or we can provide you with the size of the machine, you can consult the forwarding company yourself.

Q:What's the MOQ?

A:The MOQ(minimum order quantity) is one set.
