Place of Origin: | China |
Brand Name: | 公禾祥 |
Certification: | ISO |
Model Number: | SD80-L53X2 |
Minimum Order Quantity: | 1PS |
---|---|
Price: | Negotiable |
Packaging Details: | RAW PACK |
Delivery Time: | 30-45DAYS |
Payment Terms: | T/T |
Supply Ability: | Sufficient supply |
Material: | Stainless Steel | Automatic: | Full-automatic |
---|---|---|---|
VoltagE: | 380V | Total Power: | 4.07kw |
LPG Consumption: | 14-16kg/h | Capacity: | 5000-6000pcs/h |
Dimension: | L11xW2.1xH2M | Net Weight: | 6300kg |
Warranty: | One Year | Product Size:: | Length Below 135mm |
High Light: | sugar cone baking machine,auto cone machine |

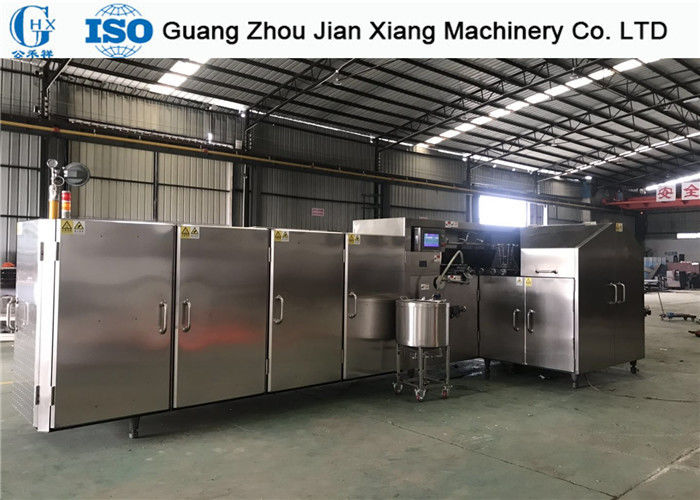

SD80-L53X2 Hot Sale Icecream Cone Rolling And Baking Machine/Commercial Ice Cream Machine for Sale
Specifications:
Model | Input power | Machine dimension | weight | LPG consumption | Baking plate quantity/machine | Product size(mm) | Output/hour |
SD80-37x2 | 3.37kw | L8XW2.1XH2M | 4500kg | 7-8kg/h | 37 | 135mm | 3500-4000pcs/h |
SD80-37A | 3.37kw | L6.6xW2.1xH2m | 3800kg | 5-6kg/h | 37 | 165mm | 1800-2000pcs/h |
SD80-45x2 | 3.37kw | L8.6XW2.1XH2M | 5000kg | 10-12kg/h | 45 | 135mm | 4500-5000pcs/h |
SD80-45A | 3.37kw | L8xW2.1xH2m | 4800kg | 7-8kg/h | 45 | 165mm | 2200-2500pcs/h |
SD80-53x2 | 3.37kw | L10.3xW2.1xH1.8m | 5800kg | 10-12kg/h | 53 | 135mm | 5000-6000pcs/h |
SD80-53A | 3.37kw | L8.5xW2.1xH2m | 5300kg | 8-10kg/h | 53 | 165mm | 2800-3200pcs/h |
SD80-61x2 | 4.07kw | L12.2xW2.1xH2M | 7000kg | 16-18kg/h | 61 | 135mm | 6000-7000pcs/h |
SD80-61A | 4.37kw | L9.8xW2.1xH2m | 6000kg | 10-12kg/h | 61 | 165mm | 3400-3800pcs/h |
SD80-69x2 | 4.37kw | L13.5xW2.1xH2M | 7800kg | 18-20kg/h | 69 | 135mm | 7000-7500pcs/h |
SD80-69A | 4.37kw | L11xW2.1xH2m | 6800kg | 14-16kg/h | 69 | 165mm | 3800-4200pcs/h |
Voltage: | 380v | Product size: | length less than 135mm |
Total power: | 4.07kw | Output/hour: |
5000-6000pcs/h |
LPG consumption: |
14-16kg/h |
Electrical accessories | Schneider |
Machine dimension: |
L11xW2.1xH2M |
PLC controller: | Schneider |
Net weight: |
6300kg |
Controller: | Schneider |
Quick Detail
The stirred dough is sent to the baking plate bottom plate by the blanking pump, and the panel of the baking plate is automatically closed, and the dough cake is shaped according to the thickness of the set cake, and then the rotating plate is turned into a baking plate. It is baked in an oven consisting of upper and lower fire nozzles. After baking, the noodle paste has become a dough cake. The robot cake accurately feeds the dough cake into the roll mold and rolls it into a finished product. The finished product is delivered.
Description
1. It can produce machines of different specifications and types according to different specifications of customers;
2. The same cone mainframe oven, with different molding dies, can produce a variety of round cakes, egg rolls, cones and other products.
Advantage of Sugar Cone Baking Machine
1. Easy Operation
2. Advanced heating system
3. Durable innoxious cone mould as per sanitation standard
4. Temperature adjustable
5. High-efficient heating element ensures ideal production ability.
6. Different types of moulds according to your choice.
7. A relay unit controls baking time.
Final Products |
Our Services
♥. Pre-sale-service:Design and manufacture machines for you as your special requirement, provide you with project, process design and pruchase program.
♥. On-sale-service: Accompany with you to look around our factory, explain the manufacture process of our machines and check the working performance of our machine.
♥. After-sale-service: Engineers are available to install debugging equipments of the whole production line, besides, commissioning and training operators on site.
After Sale Service
1. Warranty policy one year from shipment
2. We will send you the replacement after received the broken part
3. Evaluate the customs rish and choose safest shipping company before shipping.
4. Follow status up time by time until the goods arrived.
Company Profile
Guangzhou Jianxiang Machinery Co., Ltd. has more than 20 years of experience in the production of mechanical products. Now the company has strong technical force, advanced equipment and normative management after many years of struggle and technology accumulation. Our business partner Guangzhou GongHeXiang Machinery Co., Ltd, is the most famous automatic sugar cone baking machine manufacturer in China. The sugar cone baking machine and batter mixer we produce for GongHeXiang had been sold to over 20 provinces in China and exported to many oversea countries like Russia, Kyrgyzstan, Uzbekistan, Turkey, Argentina, Vietnam, Syria, French Polynesia, Egypt, Peru, India etc.
In order to meet market needs and customer’s demand, besides the most regular TT25 sugar cone baking machine, we developed new model TT25-40, TT25-36 and TT25-30 of the TT25 series. TT26 series are electric baking machine which include model TT26-45, TT26-40, TT26-36 and TT26-30. SD80 series are the most advanced caterpillar track type baking machine, which include model SD80-37x2 and model SD80-53x2.
Different machine can meet your different requirement for sugar cone size and your demand for production capacity. After so many years of development, our company had truly become the most professional sugar cone baking machine manufacturer in China.
Customer first, quality first and user-oriented is key to our service. Our company always provide customer with high quality product and good service and we will constantly strive for excellence. We believe our reasonable offer and thoughtful after-sales service can allow users achieve a real “buy peace of mind was at ease with”. We warmly welcome both new and current customer to call for further inquiry or to come and discuss cooperation.
