High Flexibility Ice Cream Cone Baking Machine , Wafer Production Line SD80-L53X2

High Flexibility Ice Cream Cone Baking Machine , Wafer Production Line SD80-L53X2

  • High Flexibility Ice Cream Cone Baking Machine , Wafer Production Line SD80-L53X2
  • High Flexibility Ice Cream Cone Baking Machine , Wafer Production Line SD80-L53X2
High Flexibility Ice Cream Cone Baking Machine , Wafer Production Line SD80-L53X2
Product Details:
Place of Origin: China
Brand Name: 公禾祥
Certification: ISO
Model Number: SD80-L53X2
Payment & Shipping Terms:
Minimum Order Quantity: 1PS
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Ice Cream Cone Size: Length Below 135mm Capacity: 5000-6000pcs/h
VoltagE: 380V Total Power: 4.07kw
LPG Consumption: 14-16kg/h Dimension: L11xW2.1xH2M
Net Weight: 6300kg Raw Material: Wheat, Wheat Flour
Automatic: Full-automatic Warranty: One Year
Certification: ISO9001 Application: Ice Cream Cone Production Line, Ice Cream
High Light:

automatic ice cream cone baking machine

,

sugar cone baking machine

SD80-L53X2 Industrial Full-Automatic Icecream Cone Maker/Ice Cream Cone Machine





series SD80 caterpillar track type full-automatic sugar cone baking machine was controlled by PLC.This series has high degree of automation,high production efficiency and stable performance.



Quick Detail



The stirred dough is sent to the baking plate bottom plate by the blanking pump, and the panel of the baking plate is automatically closed, and the dough cake is shaped according to the thickness of the set cake, and then the rotating plate is turned into a baking plate. It is baked in an oven consisting of upper and lower fire nozzles. After baking, the noodle paste has become a dough cake. The robot cake accurately feeds the dough cake into the roll mold and rolls it into a finished product. The finished product is delivered.



Description



1. It can produce machines of different specifications and types according to different specifications of customers;
2. The same cone mainframe oven, with different molding dies, can produce a variety of round cakes, egg rolls, cones and other products.



Specifications:



Voltage: 380v Product size: length less than 135mm
Total power: 4.07kw Output/hour:

5000-6000pcs/h

LPG consumption:

14-16kg/h

Electrical accessories Schneider
Machine dimension:

L11xW2.1xH2M

PLC controller: Schneider
Net weight:

6300kg

Controller: Schneider

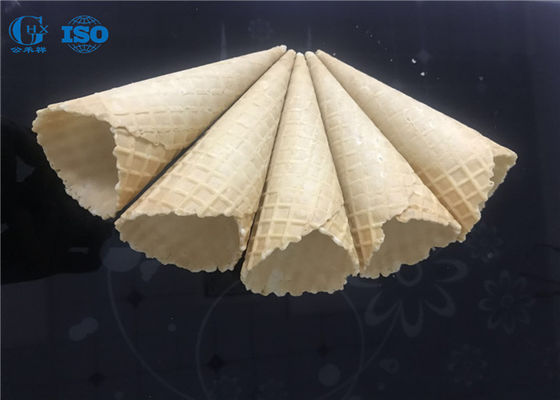

Final Products

High Flexibility Ice Cream Cone Baking Machine , Wafer Production Line SD80-L53X2 0High Flexibility Ice Cream Cone Baking Machine , Wafer Production Line SD80-L53X2 1



FAQ



1. Ask:What is your guarantee of machine ?

Answer:usually our guarantee is 1 years.

2. Can you arrange your technicians to install the machine for us?

Answer:Yes,We will assign our engineers to go abroad for installing machines for our users.

3. Ask:About the machine voltage or power of machine ?

Answer:Usually in our country is 220v,50hz, single phase,or 380v,50hz,3 phase.if you have the special requirement,pls tell us, we will vetify the voltage according to your requirement.

4. Ask:how to install the machine ?

Answer:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .



Packaging & Shipping



1. We always use standard export wooden packing,carton box.

2. You can choose express, by air,by train or by sea.Always we will give our best recommend based on our experience.

3. We cooperate with China best shipping company to get best price and fast delivery.

4. You will get full feedback when your machine is on the way.



Company Profile

High Flexibility Ice Cream Cone Baking Machine , Wafer Production Line SD80-L53X2 2

      Guangzhou Jianxiang Machinery Co., Ltd. has more than 20 years of experience in the production of mechanical products. Now the company has strong technical force, advanced equipment and normative management after many years of struggle and technology accumulation. Our business partner Guangzhou GongHeXiang Machinery Co., Ltd, is the most famous automatic sugar cone baking machine manufacturer in China. The sugar cone baking machine and batter mixer we produce for GongHeXiang had been sold to over 20 provinces in China and exported to many oversea countries like Russia, Kyrgyzstan, Uzbekistan, Turkey, Argentina, Vietnam, Syria, French Polynesia, Egypt, Peru, India etc.



In order to meet market needs and customer’s demand, besides the most regular TT25 sugar cone baking machine, we developed new model TT25-40, TT25-36 and TT25-30 of the TT25 series. TT26 series are electric baking machine which include model TT26-45, TT26-40, TT26-36 and TT26-30. SD80 series are the most advanced caterpillar track type baking machine, which include model SD80-37x2 and model SD80-53x2.



Different machine can meet your different requirement for sugar cone size and your demand for production capacity. After so many years of development, our company had truly become the most professional sugar cone baking machine manufacturer in China.



Customer first, quality first and user-oriented is key to our service. Our company always provide customer with high quality product and good service and we will constantly strive for excellence. We believe our reasonable offer and thoughtful after-sales service can allow users achieve a real “buy peace of mind was at ease with”. We warmly welcome both new and current customer to call for further inquiry or to come and discuss cooperation.
