High Speed Ice Cream Cone Manufacturing Machine 3400-3800pcs/H For Sugar Cone

High Speed Ice Cream Cone Manufacturing Machine 3400-3800pcs/H For Sugar Cone

  • High Speed Ice Cream Cone Manufacturing Machine 3400-3800pcs/H For Sugar Cone
High Speed Ice Cream Cone Manufacturing Machine 3400-3800pcs/H For Sugar Cone
Product Details:
Place of Origin: China
Brand Name: 公禾祥
Certification: ISO
Model Number: SD80-61A
Payment & Shipping Terms:
Minimum Order Quantity: 1PS
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Dimension: L9.8xW2.1xH2m VoltagE: 380V
Total Power: 4.37kw LPG Consumption: 10-12kg/h
Capacity: 3400-3800pcs/h Net Weight: 6000kg
Function: Multifunctional Raw Material: Wheat, Wheat Flour
Application Fields: Snack Food Factory, Beverage Factory Automatic: Full-automatic
Warranty: One Year Material: Stainless Steel
High Light:

wafer cone production line

,

ice cream cone manufacturing plant

SD80-53A Automatic ice cream cone maker/ Ice cream cone wafermachine



Voltage:380V

Total Power: 3.37kw

LPG consumption: 8-10kg/h

Capacity:2800-3200pcs/h

Dimension:L8.5xW2.1xH2m

Net weight:5300kg

Electrical accessories:French brand: Schneider

Controller:French brand : Schneider



Working principle:

Feeding the mixed flour paste by feeding pump to the baking plate and automatically close the baking plate, forming as the thickness of the dough,then put into the oven to bake.After baking ,the paste has forming.Using the manipulator to put it in the mould of rolling to make the finished products.after demould conveyor the products.



Standard equipment:

1,conveyor

High Speed Ice Cream Cone Manufacturing Machine 3400-3800pcs/H For Sugar Cone 0

Voltage:220V

Power:0.75kw

Dimension: 5mx0.6mx0.7m



It is used to deliver the finished products to the assembly shop in a neat line.



2,optional equipment : automatic counting machine

High Speed Ice Cream Cone Manufacturing Machine 3400-3800pcs/H For Sugar Cone 1

Power: 0.75kw

Dimension: 2mx0.9mx0.7m



It is used to automatically stack the molded products of the paper sleeve into a string, and wait for the box according to the set number. The set value is 1-50/string.





Model Input power Machine dimension weight LPG consumption Baking plate quantity/machine Product size(mm) Output/hour
SD80-37x2 3.37kw L8XW2.1XH2M 4500kg 7-8kg/h 37 135mm 3500-4000pcs/h
SD80-37A 3.37kw L6.6xW2.1xH2m 3800kg 5-6kg/h 37 165mm 1800-2000pcs/h
SD80-45x2 3.37kw L8.6XW2.1XH2M 5000kg 10-12kg/h 45 135mm 4500-5000pcs/h
SD80-45A 3.37kw L8xW2.1xH2m 4800kg 7-8kg/h 45 165mm 2200-2500pcs/h
SD80-53x2 3.37kw L10.3xW2.1xH1.8m 5800kg 10-12kg/h 53 135mm 5000-6000pcs/h
SD80-53A 3.37kw L8.5xW2.1xH2m 5300kg 8-10kg/h 53 165mm 2800-3200pcs/h
SD80-61x2 4.07kw L12.2xW2.1xH2M 7000kg 16-18kg/h 61 135mm 6000-7000pcs/h
SD80-61A 4.37kw L9.8xW2.1xH2m 6000kg 10-12kg/h 61 165mm 3400-3800pcs/h
SD80-69x2 4.37kw L13.5xW2.1xH2M 7800kg 18-20kg/h 69 135mm 7000-7500pcs/h
SD80-69A 4.37kw L11xW2.1xH2m 6800kg 14-16kg/h 69 165mm 3800-4200pcs/h

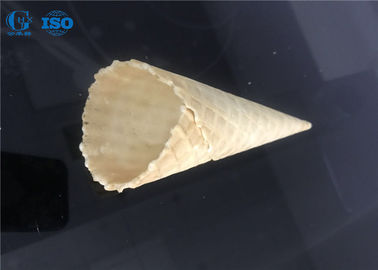

Final Products

High Speed Ice Cream Cone Manufacturing Machine 3400-3800pcs/H For Sugar Cone 2High Speed Ice Cream Cone Manufacturing Machine 3400-3800pcs/H For Sugar Cone 3



FAQ



1. Ask:What is your guarantee of machine ?

Answer:usually our guarantee is 1 years.

2. Can you arrange your technicians to install the machine for us?

Answer:Yes,We will assign our engineers to go abroad for installing machines for our users.

3. Ask:About the machine voltage or power of machine ?

Answer:Usually in our country is 220v,50hz, single phase,or 380v,50hz,3 phase.if you have the special requirement,pls tell us, we will vetify the voltage according to your requirement.

4. Ask:how to install the machine ?

Answer:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .



Company Profile

High Speed Ice Cream Cone Manufacturing Machine 3400-3800pcs/H For Sugar Cone 4

      Guangzhou Jianxiang Machinery Co., Ltd. has more than 20 years of experience in the production of mechanical products. Now the company has strong technical force, advanced equipment and normative management after many years of struggle and technology accumulation. Our business partner Guangzhou GongHeXiang Machinery Co., Ltd, is the most famous automatic sugar cone baking machine manufacturer in China. The sugar cone baking machine and batter mixer we produce for GongHeXiang had been sold to over 20 provinces in China and exported to many oversea countries like Russia, Kyrgyzstan, Uzbekistan, Turkey, Argentina, Vietnam, Syria, French Polynesia, Egypt, Peru, India etc.



In order to meet market needs and customer’s demand, besides the most regular TT25 sugar cone baking machine, we developed new model TT25-40, TT25-36 and TT25-30 of the TT25 series. TT26 series are electric baking machine which include model TT26-45, TT26-40, TT26-36 and TT26-30. SD80 series are the most advanced caterpillar track type baking machine, which include model SD80-37x2 and model SD80-53x2.



Different machine can meet your different requirement for sugar cone size and your demand for production capacity. After so many years of development, our company had truly become the most professional sugar cone baking machine manufacturer in China.



Customer first, quality first and user-oriented is key to our service. Our company always provide customer with high quality product and good service and we will constantly strive for excellence. We believe our reasonable offer and thoughtful after-sales service can allow users achieve a real “buy peace of mind was at ease with”. We warmly welcome both new and current customer to call for further inquiry or to come and discuss cooperation.
