High Production Capacity Sugar Cone Baking Machine with PLC control system 10000pcs/hour

High Production Capacity Sugar Cone Baking Machine with PLC control system 10000pcs/hour

High Production Capacity Sugar Cone Baking Machine with PLC control system 10000pcs/hour
High Production Capacity Sugar Cone Baking Machine with PLC control system 10000pcs/hour
High Production Capacity Sugar Cone Baking Machine with PLC control system 10000pcs/hour
Product Details:
Place of Origin: China
Brand Name: Gonghexiang
Certification: ISO
Model Number: SD80-61x3
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Container
Delivery Time: 45 working days
Payment Terms: T/T, LC
Contact Now
Detailed Product Description
Material: Stainless Steel Power: 4.07kw
Type: Fully-Automatic Weight: 7000kg
Gas Consumption: 14-16kg/hour Dimension: 11*2.1*2m
Voltage: 380V Production Capacity: 9000-10000pcs/hour
Warranty: One Year Control System: PLC
Feature: Full Automatic, Easy To Use, Stable Quality

High Production Capacity Sugar Cone Baking Machine with PLC control system 10000pcs per hour





Product Overview: Sugar Cone Baking Machine

The Full Automatic Sugar Cone Baking Machine is an advanced and efficient solution designed to meet the high-demand requirements of commercial use production line. Engineered for precision and reliability, this machine is ideal for producing a large variety of sugar cones with consistent quality and uniformity.





Machine Model: SD80-61x3





Machine Description:

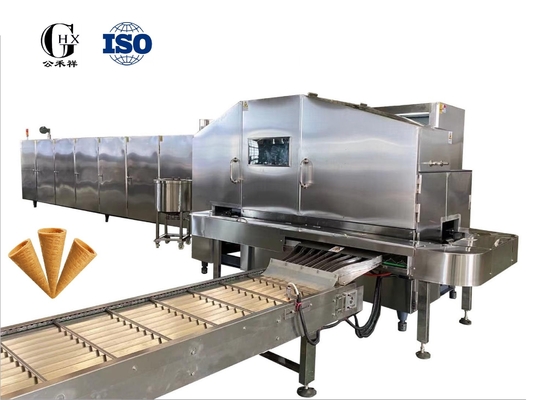

SD80-61x3 is a tunnel-type full-automatic ice cream cone production line for commercial use. This machine model have 61pcs baking plates in total and each baking plate can produce 3pcs cones with make its' production capacity up to 9000-10000pcs per hour. The entire machine is controlled by SIEMENS PLC system which ensure consisten and stable quality.





Key Features:

1. High Efficiency and Productivity: Up to 10000pcs cone output per hour significantly enhancing output and meeting high-volume demands.

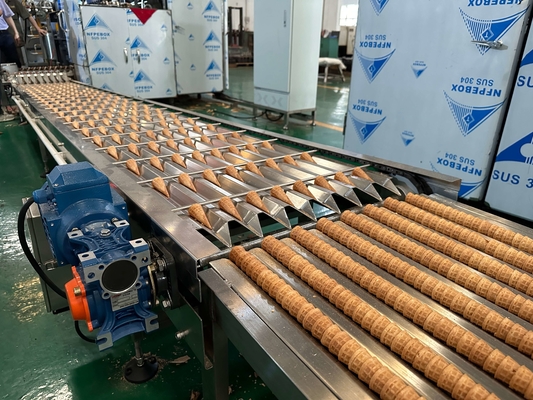

2. Fully automatic from batter dispensing to conveying the freshly produced cone to packing workshop.

3. Made of high-quality material: stainless steel ensuring the longevity and resistance to wear and tear.

4. Durable baking plates: High-qualified ductile cast iron keeping good after decade use.

5. Easy to use: Intuitive control panel with easy-to use settings for adjusting baking time, temperature and other parameters.





Technical Parameters:

Product name Sugar cone baking machine
Model Number SD80-61x3
Control System SIEMENS PLC
Input Power 4.07
Voltage 380v
Production Capacity 9000-10000pcs/hour
LPG Consumption 14-16kg/hour
Material Stainless steel & Ductile cast iron
No. of baking plates 61pcs
Warranty 1 Year
Place of Origin China
Machine Dimension 11 x 2.1 x 2 (meter)
Weight of Machine 7000kgs





Sugar Cone Specification

Cone Length 60-75 (mm)
Cone Angle 20°-24°


High Production Capacity Sugar Cone Baking Machine with PLC control system 10000pcs/hour 0

Conclusion

The Full Automatic Sugar Cone Baking Machine is an indispensable asset for any business looking to enhance its production capabilities with efficiency and precision. Its advanced features, durable construction, and user-friendly design make it a top choice for producing high-quality sugar cones that meet diverse market demands. Invest in this machine to ensure consistent product quality, streamline operations, and boost overall productivity.





FAQ:

  • Q: Where is this ice cream cone production line made?
    A: It is made in China.
  • Q: Does this product have any certification?
    A: Yes, it is ISO certified.
  • Q: How is this product packaged for delivery?
    A: It is packaged in a container.
  • Q: How long is the delivery time for this product?
    A: The delivery time is 45 working days.
  • Q: What are the payment terms for this product?
    A: The payment terms are T/T and LC.





After-Sales Service

1. Installation:Our experienced technicians will assist with the installation and commissioning of your new machine to ensure it is set up correctly and operating efficiently from the start.

2. Provide detailed operational training for your staff: Ensure they are fully knowledgeable about the machine's functionalities and maintenance requirements.

3. Remote diagnostics and support: Quickly address minor issues without the need for an on-site visit.

4. One year warranty.





About Us

Guangzhou Jianxiang Machinery Co., Ltd. is an enterprise with over 20 years of history in the production of mechanical products. Through years of hard work and accumulation, the company has established itself as a technologically robust, well-equipped, and civically managed entity. Our company specializes in the production and sales of the Gonghexiang brand's fully automatic sugar cone baking machine, including TT25 series and SD80 series. With a solid technological foundation and advanced production equipment, we have successfully expanded our market presence. Our products have been distributed to more than twenty provinces and cities nationwide, and have been exported to various countries, including Russia, Kyrgyzstan, Uzbekistan, Turkey, Argentina, Vietnam, Syria, French Polynesia, Egypt, Peru, India, Brazil, and many others.
