Multiple Design Sugar Cone Baking machine Fully Automatic with SIEMENS/DELTA PLC Control

Multiple Design Sugar Cone Baking machine Fully Automatic with SIEMENS/DELTA PLC Control

Multiple Design Sugar Cone Baking machine Fully Automatic with SIEMENS/DELTA PLC Control
Multiple Design Sugar Cone Baking machine Fully Automatic with SIEMENS/DELTA PLC Control
Multiple Design Sugar Cone Baking machine Fully Automatic with SIEMENS/DELTA PLC Control
Product Details:
Place of Origin: China
Brand Name: Gonghexiang
Certification: ISO
Model Number: SD80-61A
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Container
Delivery Time: 60 days
Payment Terms: T/T, LC
Contact Now
Detailed Product Description
Automation Level: Fully-Automatic Control System: SIEMENS/DELTA PLC
Power: 4.07kw Voltage: 380V
Production Capacity: 3300-4000pcs/hour No. Of Baking Plate: 61pcs
GAS Consumprion: 10-12kg/hour After-sales Service: On-site Installation, Comissioning And Training
Cone Color: 1 Color Or 2 Color Dimension: 9800*2100*2000mm
Key Word: Rolled Sugar Cone Baking Machine, Ice Cream Cone Production Line Machine Weight: 6200kgs

Multiple Design Sugar Cone Baking machine Fully Automatic with SIEMENS/DELTA PLC Control





Brief Description

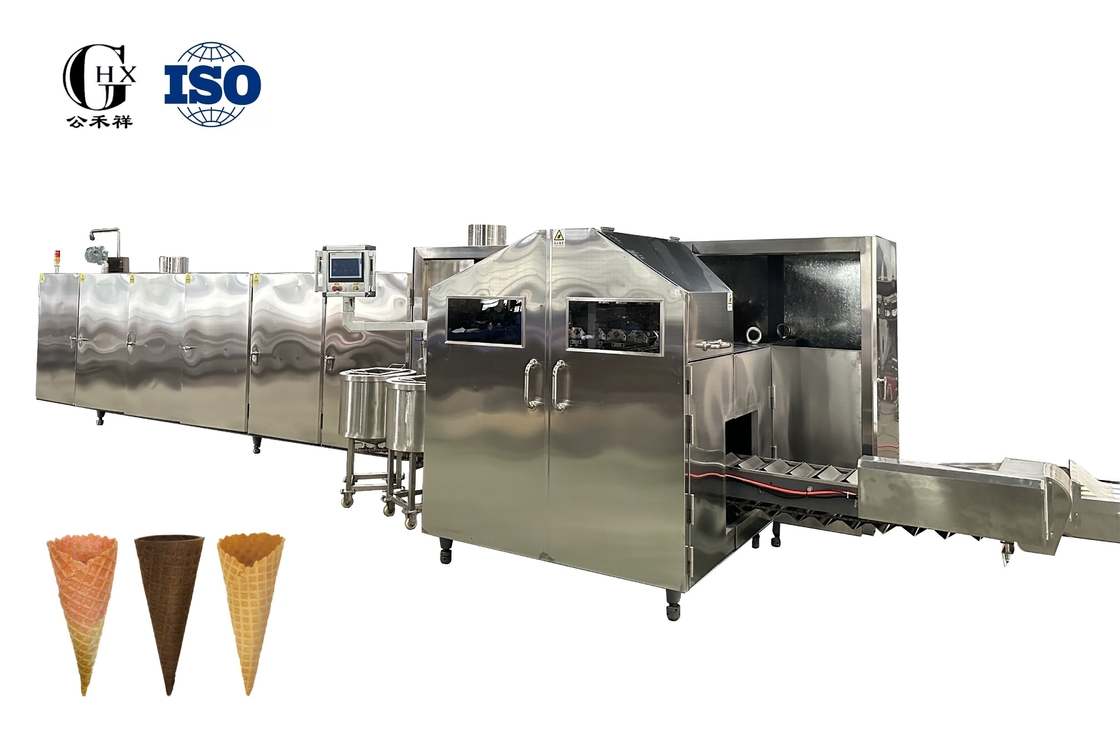

SD80-61A is a tunnel-type full-automatic ice cream cone production line. This machine model is supplied with 61 baking plates and the baking oven is heating by gas. It’s controlled by SIEMENS/DELTA PLC system and driven by 3-phrase motor. It can compete the entire production process from mixed batter dispensing, baking, molding, demolding, stacking and conveying to the packing room.





Machine Model: SD80-61A





Feature

1. Easy to operate: The Ice Cream Cone Production Line is designed to provide a hassle-free baking experience, making it the ideal choice for ice cream cone manufacturers.

2. Ensure quality and output: The machine boasts a fully-automated system that ensures consistent quality and output. This feature also allows for easy operation, minimizing the chances of human error and increasing productivity.

3. High quality material: Manufactured with the high quality stainless steel and durable steel structure, this ice cream cone baking machine is built to withstand continuous use. It is also designed to be easy to clean, making maintenance a breeze.

4. Low gas consumption: Tt uses only 10-12kg of gas per hour, making it a cost-effective solution for businesses.



If you're looking for a reliable, efficient, and cost-effective way to manufacture sugar cones, our Ice Cream Cone Production Line is your perfect choice. With its fully-automated system, low gas consumption, and easy maintenance, this commercial rolled sugar cone machine is the ultimate solution for your business needs.





Customized

Our Gonghexiang Ice Cream Cone Production Line offers customized services to meet your specific needs.

1. Production Capacity: Our different machine model consists of variety of baking plates with production capacities range from 2,000pcs to 12,000pcs rolled sugar cones per hour.

2. Cone versatility: Our equipment can be customized according to the customer's requirements for sugar cone thickness, pattern and LOGO engravment. The sugar cone size and shape can be achieved by simply changing the mold.

3. Cone color: Cone color can be customized. Our machine can make both 1-color cone and 2-color cone.

4. Conveyor direction: The conveyor direction of the equipment's can be customized according to the customer's plant layout. We have diffedrent options to make our production line fit the most your plant.





Machine Technical Parameters

Total Power 4.07kw
Voltage 380v
GAS Consumption 10-12 kg/hour
Production Capacity 3300-4000pcs/hour
Cone qty per panel 1pcs/baking panel
Quantity of baking panel 61pcs
Machine size 9.8x2.1x2 (m)
Machine weight 6200kgs
Country of Origin China
Warranty One year
After-sales Service On-site installation, commissioning and training







Sugar Cone Specification

Cone length 120mm-180mm
Cone angle 15°-32°
Engarvement size

6x6mm (standard size)

Can be customized

Cone thickness

2.5mm-3mm (standard thickness)

Can be customized

Cone color

1-color or 2-color

Can be customized







Multiple Design Sugar Cone Baking machine Fully Automatic with SIEMENS/DELTA PLC Control 0





Our Service

1. All our equipment was covered by a one-year warranty.

2. Engineer on-line to support any of your technical questions. Ensure your machine run on smoothly.

3. We will send engineer to your factory to perform on-site installation, commissioning and training.





Factory workshop

Multiple Design Sugar Cone Baking machine Fully Automatic with SIEMENS/DELTA PLC Control 1





Jianxiang Company Introduction

•Guangzhou Jianxiang Machinery Co., Ltd. is an enterprise with over 20 years of history in the production of mechanical products. Through years of hard work and accumulation, the company has established itself as a technologically robust, well-equipped, and civically managed entity. Our company specializes in the production and sales of the Gonghexiang brand's fully automatic sugar cone baking machine, including TT25 series and SD80 series. With a solid technological foundation and advanced production equipment, we have successfully expanded our market presence. Our products have been distributed to more than twenty provinces and cities nationwide, and have been exported to various countries, including Russia, Kyrgyzstan, Uzbekistan, Turkey, Argentina, Vietnam, Syria, French Polynesia, Egypt, Peru, India, Brazil, and many others.


•The company adheres to the principle of "Customer First, Quality First, and Reputation First," constantly striving for excellence. We consistently provide customers with excellent product quality, reasonable pricing, and comprehensive and thoughtful after-sales service. We ensure that customers are happy with their purchases and confident in their usage, earning high praise from a wide range of users.
