Home ProductsIce Cream Cone Production Line

Commercial Ice Cream Cone Machine Tunnel Type With 3800-4200pcs/H Capacity

Commercial Ice Cream Cone Machine Tunnel Type With 3800-4200pcs/H Capacity

Commercial Ice Cream Cone Machine Tunnel Type With 3800-4200pcs/H Capacity
Commercial Ice Cream Cone Machine Tunnel Type With 3800-4200pcs/H Capacity
Commercial Ice Cream Cone Machine Tunnel Type With 3800-4200pcs/H Capacity
Product Details:
Place of Origin: China
Brand Name: Gonghexiang
Certification: ISO
Model Number: SD80-69A
Payment & Shipping Terms:
Minimum Order Quantity: 1PS
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Name: Ice Cream Cone Production Line VoltagE: 380V
Total Power: 4.37kw Dimension: L11xW2.1xH2m
LPG Consumption: 14-16kg/h Capacity: 3800-4200pcs/h
Net Weight: 6800kg Raw Material: Wheat, Wheat Flour
Application Fields: Snack Food Factory, Beverage Factory Warranty: One Year
High Light:

wafer cone production line

,

ice cream cone manufacturing plant

Commercial Ice Cream Cone Machine Tunnel Type With 3800-4200pcs/H Capacity



Commercial Ice Cream Cone Machine Tunnel Type With 3800-4200pcs/H Capacity 0



        The stirred dough is sent to the baking plate bottom plate by the blanking pump, and the panel of the baking plate is automatically closed, and the dough cake is shaped according to the thickness of the set cake, and then the rotating plate is turned into a baking plate. It is baked in an oven consisting of upper and lower fire nozzles. After baking, the noodle paste has become a dough cake. The robot cake accurately feeds the dough cake into the roll mold and rolls it into a finished product. The finished product is delivered.



Model Input power Machine dimension weight LPG consumption Baking plate quantity/machine Product size(mm) Output/hour
SD80-37x2 3.37kw L8XW2.1XH2M 4500kg 7-8kg/h 37 135mm 3500-4000pcs/h
SD80-L37X2 3.37kw L8XW2.1XH2M 4500kg 7-8kg/h 37 135mm 3500-4000pcs/h
SD80-37A 3.37kw L6.6xW2.1xH2m 3800kg 5-6kg/h 37 165mm 1800-2000pcs/h
SD80-45x2 3.37kw L8.6XW2.1XH2M 5000kg 10-12kg/h 45 135mm 4500-5000pcs/h
SD80-L45X2 3.37kw L8.6XW2.1XH2M 5000kg 10-12kg/h 45 135mm 4500-5000pcs/h
SD80-45A 3.37kw L8xW2.1xH2m 4800kg 7-8kg/h 45 165mm 2200-2500pcs/h
SD80-53x2 3.37kw L10.3xW2.1xH1.8m 5800kg 10-12kg/h 53 135mm 5000-6000pcs/h
SD80-L53X2 4.07kw L11xW2.1xH2M 6300kg 14-16kg/h 53 135mm 5000-6000pcs/h
SD80-53A 3.37kw L8.5xW2.1xH2m 5300kg 8-10kg/h 53 165mm 2800-3200pcs/h
SD80-61x2 4.07kw L12.2xW2.1xH2M 7000kg 16-18kg/h 61 135mm 6000-7000pcs/h
SD80-L61X2 4.07kw L12.2xW2.1xH2M 7000kg 16-18kg/h 61 135mm 6000-7000pcs/h
SD80-61A 4.37kw L9.8xW2.1xH2m 6000kg 10-12kg/h 61 165mm 3400-3800pcs/h
SD80-69x2 4.37kw L13.5xW2.1xH2M 7800kg 18-20kg/h 69 135mm 7000-7500pcs/h
SD80-L69X2 4.37kw L13.5xW2.1xH2M 7800kg 18-20kg/h 69 135mm 7000-7500pcs/h
SD80-69A 4.37kw L11xW2.1xH2m 6800kg 14-16kg/h 69 165mm 3800-4200pcs/h





Voltage:380V

Total Power: 4.37kw

LPG consumption: 14-16kg/h

Capacity:3800-4200pcs/h

Dimension:L11xW2.1xH2m

Net weight:6800kg

Electrical accessories:French brand: Schneider

Controller:French brand : Schneider





Standard equipment:

1,conveyor

Commercial Ice Cream Cone Machine Tunnel Type With 3800-4200pcs/H Capacity 1

Voltage:220V

Power:0.75kw

Dimension: 5mx0.6mx0.7m



It is used to deliver the finished products to the assembly shop in a neat line.



2,optional equipment : automatic counting machine

Commercial Ice Cream Cone Machine Tunnel Type With 3800-4200pcs/H Capacity 2

Power: 0.75kw

Dimension: 2mx0.9mx0.7m



It is used to automatically stack the molded products of the paper sleeve into a string, and wait for the box according to the set number. The set value is 1-50/string.





Advantage of Sugar Cone Baking Machine

1. Easy Operation
2. Advanced heating system
3. Durable innoxious cone mould as per sanitation standard
4. Temperature adjustable
5. High-efficient heating element ensures ideal production ability.
6. Different types of moulds according to your choice.
7. A relay unit controls baking time.

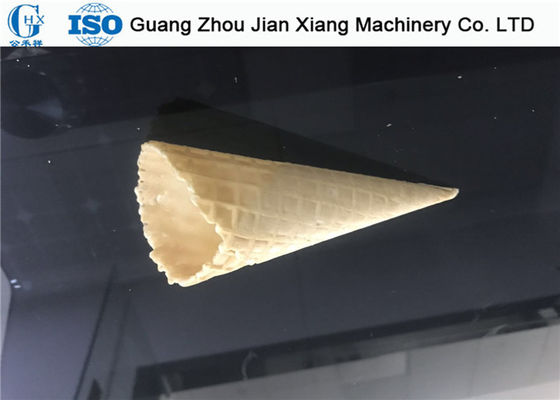

Final Products

Commercial Ice Cream Cone Machine Tunnel Type With 3800-4200pcs/H Capacity 3Commercial Ice Cream Cone Machine Tunnel Type With 3800-4200pcs/H Capacity 4



FAQ



1. Ask:What is your guarantee of machine ?

Answer:usually our guarantee is 1 years.

2. Can you arrange your technicians to install the machine for us?

Answer:Yes,We will assign our engineers to go abroad for installing machines for our users.

3. Ask:About the machine voltage or power of machine ?

Answer:Usually in our country is 220v,50hz, single phase,or 380v,50hz,3 phase.if you have the special requirement,pls tell us, we will vetify the voltage according to your requirement.

4. Ask:how to install the machine ?

Answer:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .



Company Profile

Commercial Ice Cream Cone Machine Tunnel Type With 3800-4200pcs/H Capacity 5

      Guangzhou Jianxiang Machinery Co., Ltd. has more than 20 years of experience in the production of mechanical products. Now the company has strong technical force, advanced equipment and normative management after many years of struggle and technology accumulation. Our business partner Guangzhou GongHeXiang Machinery Co., Ltd, is the most famous automatic sugar cone baking machine manufacturer in China. The sugar cone baking machine and batter mixer we produce for GongHeXiang had been sold to over 20 provinces in China and exported to many oversea countries like Russia, Kyrgyzstan, Uzbekistan, Turkey, Argentina, Vietnam, Syria, French Polynesia, Egypt, Peru, India etc.



In order to meet market needs and customer’s demand, besides the most regular TT25 sugar cone baking machine, we developed new model TT25-40, TT25-36 and TT25-30 of the TT25 series. TT26 series are electric baking machine which include model TT26-45, TT26-40, TT26-36 and TT26-30. SD80 series are the most advanced caterpillar track type baking machine, which include model SD80-37x2 and model SD80-53x2.



Different machine can meet your different requirement for sugar cone size and your demand for production capacity. After so many years of development, our company had truly become the most professional sugar cone baking machine manufacturer in China.



Customer first, quality first and user-oriented is key to our service. Our company always provide customer with high quality product and good service and we will constantly strive for excellence. We believe our reasonable offer and thoughtful after-sales service can allow users achieve a real “buy peace of mind was at ease with”. We warmly welcome both new and current customer to call for further inquiry or to come and discuss cooperation.
