Place of Origin: | China |
Brand Name: | 公禾祥 |
Certification: | ISO |
Model Number: | SD80-69A |
Minimum Order Quantity: | 1PS |
---|---|
Price: | Negotiable |
Packaging Details: | RAW PACK |
Delivery Time: | 30-45DAYS |
Payment Terms: | T/T |
Supply Ability: | Sufficient supply |
Capacity: | 3800-4200pcs/h | Net Weight: | 6800kg |
---|---|---|---|
VoltagE: | 380V | Total Power: | 4.37kw |
LPG Consumption: | 14-16kg/h | Dimension: | L11xW2.1xH2m |
Function: | Multifunctional | Raw Material: | Wheat, Wheat Flour |
Application Fields: | Snack Food Factory, Beverage Factory | Automatic: | Full-automatic |
Material: | Stainless Steel | Certification: | ISO9001 |
High Light: | automatic ice cream cone making machine,wafer cone production line |

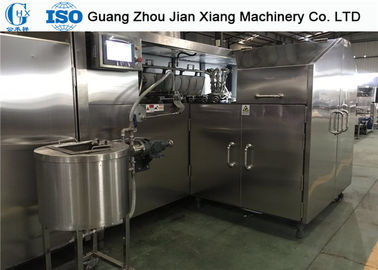

SD80-69A Automatic ice cream cone maker/ Ice cream cone wafermachine
Voltage:380V
Total Power: 4.37kw
LPG consumption: 14-16kg/h
Capacity:3800-4200pcs/h
Dimension:L11xW2.1xH2m
Net weight:6800kg
Electrical accessories:French brand: Schneider
Controller:French brand : Schneider
Standard equipment:
1,conveyor
Voltage:220V
Power:0.75kw
Dimension: 5mx0.6mx0.7m
It is used to deliver the finished products to the assembly shop in a neat line.
2,optional equipment : automatic counting machine
Power: 0.75kw
Dimension: 2mx0.9mx0.7m
It is used to automatically stack the molded products of the paper sleeve into a string, and wait for the box according to the set number. The set value is 1-50/string.
Model | Input power | Machine dimension | weight | LPG consumption | Baking plate quantity/machine | Product size(mm) | Output/hour |
SD80-37x2 | 3.37kw | L8XW2.1XH2M | 4500kg | 7-8kg/h | 37 | 135mm | 3500-4000pcs/h |
SD80-L37X2 | 3.37kw | L8XW2.1XH2M | 4500kg | 7-8kg/h | 37 | 135mm | 3500-4000pcs/h |
SD80-37A | 3.37kw | L6.6xW2.1xH2m | 3800kg | 5-6kg/h | 37 | 165mm | 1800-2000pcs/h |
SD80-45x2 | 3.37kw | L8.6XW2.1XH2M | 5000kg | 10-12kg/h | 45 | 135mm | 4500-5000pcs/h |
SD80-L45X2 | 3.37kw | L8.6XW2.1XH2M | 5000kg | 10-12kg/h | 45 | 135mm | 4500-5000pcs/h |
SD80-45A | 3.37kw | L8xW2.1xH2m | 4800kg | 7-8kg/h | 45 | 165mm | 2200-2500pcs/h |
SD80-53x2 | 3.37kw | L10.3xW2.1xH1.8m | 5800kg | 10-12kg/h | 53 | 135mm | 5000-6000pcs/h |
SD80-L53X2 | 4.07kw | L11xW2.1xH2M | 6300kg | 14-16kg/h | 53 | 135mm | 5000-6000pcs/h |
SD80-53A | 3.37kw | L8.5xW2.1xH2m | 5300kg | 8-10kg/h | 53 | 165mm | 2800-3200pcs/h |
SD80-61x2 | 4.07kw | L12.2xW2.1xH2M | 7000kg | 16-18kg/h | 61 | 135mm | 6000-7000pcs/h |
SD80-L61X2 | 4.07kw | L12.2xW2.1xH2M | 7000kg | 16-18kg/h | 61 | 135mm | 6000-7000pcs/h |
SD80-61A | 4.37kw | L9.8xW2.1xH2m | 6000kg | 10-12kg/h | 61 | 165mm | 3400-3800pcs/h |
SD80-69x2 | 4.37kw | L13.5xW2.1xH2M | 7800kg | 18-20kg/h | 69 | 135mm | 7000-7500pcs/h |
SD80-L69X2 | 4.37kw | L13.5xW2.1xH2M | 7800kg | 18-20kg/h | 69 | 135mm | 7000-7500pcs/h |
SD80-69A | 4.37kw | L11xW2.1xH2m | 6800kg | 14-16kg/h | 69 | 165mm | 3800-4200pcs/h |
Final Products |
Our Services
♥. Pre-sale-service:Design and manufacture machines for you as your special requirement, provide you with project, process design and pruchase program.
♥. On-sale-service: Accompany with you to look around our factory, explain the manufacture process of our machines and check the working performance of our machine.
♥. After-sale-service: Engineers are available to install debugging equipments of the whole production line, besides, commissioning and training operators on site.
After Sale Service
1. Warranty policy one year from shipment
2. We will send you the replacement after received the broken part
3. Evaluate the customs rish and choose safest shipping company before shipping.
4. Follow status up time by time until the goods arrived.
Packaging & Shipping
1. We always use standard export wooden packing,carton box.
2. You can choose express, by air,by train or by sea.Always we will give our best recommend based on our experience.
3. We cooperate with China best shipping company to get best price and fast delivery.
4. You will get full feedback when your machine is on the way.
Company Profile
Guangzhou Jianxiang Machinery Co., Ltd. has more than 20 years of experience in the production of mechanical products. Now the company has strong technical force, advanced equipment and normative management after many years of struggle and technology accumulation. Our business partner Guangzhou GongHeXiang Machinery Co., Ltd, is the most famous automatic sugar cone baking machine manufacturer in China. The sugar cone baking machine and batter mixer we produce for GongHeXiang had been sold to over 20 provinces in China and exported to many oversea countries like Russia, Kyrgyzstan, Uzbekistan, Turkey, Argentina, Vietnam, Syria, French Polynesia, Egypt, Peru, India etc.
In order to meet market needs and customer’s demand, besides the most regular TT25 sugar cone baking machine, we developed new model TT25-40, TT25-36 and TT25-30 of the TT25 series. TT26 series are electric baking machine which include model TT26-45, TT26-40, TT26-36 and TT26-30. SD80 series are the most advanced caterpillar track type baking machine, which include model SD80-37x2 and model SD80-53x2.
Different machine can meet your different requirement for sugar cone size and your demand for production capacity. After so many years of development, our company had truly become the most professional sugar cone baking machine manufacturer in China.
Customer first, quality first and user-oriented is key to our service. Our company always provide customer with high quality product and good service and we will constantly strive for excellence. We believe our reasonable offer and thoughtful after-sales service can allow users achieve a real “buy peace of mind was at ease with”. We warmly welcome both new and current customer to call for further inquiry or to come and discuss cooperation.
