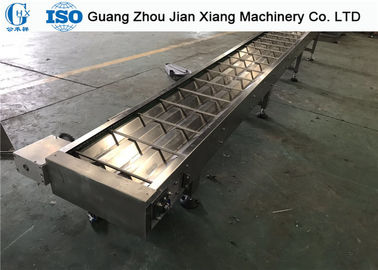

Fully Automatic Wafer Making Machine , 4.07kw Ice Cream Waffle Cone Machine

Fully Automatic Wafer Making Machine , 4.07kw Ice Cream Waffle Cone Machine

  • Fully Automatic Wafer Making Machine , 4.07kw Ice Cream Waffle Cone Machine
Fully Automatic Wafer Making Machine , 4.07kw Ice Cream Waffle Cone Machine
Product Details:
Place of Origin: China
Certification: ISO
Model Number: SD80-L53X2
Payment & Shipping Terms:
Minimum Order Quantity: 1PS
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Total Power: 4.07kw LPG Consumption: 14-16kg/h
VoltagE: 380V Capacity: 5000-6000pcs/h
Dimension: L11xW2.1xH2M Net Weight: 6300kg
Raw Material: Wheat, Wheat Flour Application Fields: Snack Food Factory, Beverage Factory
Material: Stainless Steel Product Size:: Length Below 135mm
High Light:

automatic ice cream cone baking machine


sugar cone baking machine

Best-selling Sugar Cone Making Machine/Machine To Make Ice Cream Cone Machine SD80-L53X2





Voltage: 380v Product size: length less than 135mm
Total power: 4.07kw Output/hour:


LPG consumption:


Electrical accessories Schneider
Machine dimension:


PLC controller: Schneider
Net weight:


Controller: Schneider



New generation rolled sugar cone machine for sale


1. Working Principle of the Sugar Cone Baking Machie

The whole machine is controlled by Schneider PLC, operated by the main motor, roller , solenoid valve and air fan, the baking plate of the machine is heated, after it shows about 180℃, the mixed batter will be pumped in a certain adjusted amount to the baking plate by the discharging pump, and automatically close the baking plate. The pastry is adjusted in a certain thickness, then the driving wheel drives baking plate into the oven from the upper and lower fire flame nozzle, after baking, the mixed batter has become a pastry, the machine hand accurately put the pastry into the roll mold to form finished product, after de-moulding, the finished product is sent out.

2. Advantage of Sugar Cone Baking Machine

1. Easy Operation
2. Advanced heating system
3. Durable innoxious cone mould as per sanitation standard
4. Temperature adjustable
5. High-efficient heating element ensures ideal production ability.
6. Different types of moulds according to your choice.
7. A relay unit controls baking time.


Model Input power Machine dimension weight LPG consumption Baking plate quantity/machine Product size(mm) Output/hour
SD80-37x2 3.37kw L8XW2.1XH2M 4500kg 7-8kg/h 37 135mm 3500-4000pcs/h
SD80-37A 3.37kw L6.6xW2.1xH2m 3800kg 5-6kg/h 37 165mm 1800-2000pcs/h
SD80-45x2 3.37kw L8.6XW2.1XH2M 5000kg 10-12kg/h 45 135mm 4500-5000pcs/h
SD80-45A 3.37kw L8xW2.1xH2m 4800kg 7-8kg/h 45 165mm 2200-2500pcs/h
SD80-53x2 3.37kw L10.3xW2.1xH1.8m 5800kg 10-12kg/h 53 135mm 5000-6000pcs/h
SD80-53A 3.37kw L8.5xW2.1xH2m 5300kg 8-10kg/h 53 165mm 2800-3200pcs/h
SD80-61x2 4.07kw L12.2xW2.1xH2M 7000kg 16-18kg/h 61 135mm 6000-7000pcs/h
SD80-61A 4.37kw L9.8xW2.1xH2m 6000kg 10-12kg/h 61 165mm 3400-3800pcs/h
SD80-69x2 4.37kw L13.5xW2.1xH2M 7800kg 18-20kg/h 69 135mm 7000-7500pcs/h
SD80-69A 4.37kw L11xW2.1xH2m 6800kg 14-16kg/h 69 165mm 3800-4200pcs/h


Final Products

Fully Automatic Wafer Making Machine , 4.07kw Ice Cream Waffle Cone Machine 0Fully Automatic Wafer Making Machine , 4.07kw Ice Cream Waffle Cone Machine 1




1. Ask:What is your guarantee of machine ?

Answer:usually our guarantee is 1 years.

2. Can you arrange your technicians to install the machine for us?

Answer:Yes,We will assign our engineers to go abroad for installing machines for our users.

3. Ask:About the machine voltage or power of machine ?

Answer:Usually in our country is 220v,50hz, single phase,or 380v,50hz,3 phase.if you have the special requirement,pls tell us, we will vetify the voltage according to your requirement.

4. Ask:how to install the machine ?

Answer:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .


Company Profile

Fully Automatic Wafer Making Machine , 4.07kw Ice Cream Waffle Cone Machine 2

      Guangzhou Jianxiang Machinery Co., Ltd. has more than 20 years of experience in the production of mechanical products. Now the company has strong technical force, advanced equipment and normative management after many years of struggle and technology accumulation. Our business partner Guangzhou GongHeXiang Machinery Co., Ltd, is the most famous automatic sugar cone baking machine manufacturer in China. The sugar cone baking machine and batter mixer we produce for GongHeXiang had been sold to over 20 provinces in China and exported to many oversea countries like Russia, Kyrgyzstan, Uzbekistan, Turkey, Argentina, Vietnam, Syria, French Polynesia, Egypt, Peru, India etc.


In order to meet market needs and customer’s demand, besides the most regular TT25 sugar cone baking machine, we developed new model TT25-40, TT25-36 and TT25-30 of the TT25 series. TT26 series are electric baking machine which include model TT26-45, TT26-40, TT26-36 and TT26-30. SD80 series are the most advanced caterpillar track type baking machine, which include model SD80-37x2 and model SD80-53x2.


Different machine can meet your different requirement for sugar cone size and your demand for production capacity. After so many years of development, our company had truly become the most professional sugar cone baking machine manufacturer in China.


Customer first, quality first and user-oriented is key to our service. Our company always provide customer with high quality product and good service and we will constantly strive for excellence. We believe our reasonable offer and thoughtful after-sales service can allow users achieve a real “buy peace of mind was at ease with”. We warmly welcome both new and current customer to call for further inquiry or to come and discuss cooperation.
