Continuous Operate Ice Cream Cone Baking Machine Temperature Control Freely

Continuous Operate Ice Cream Cone Baking Machine Temperature Control Freely

  • Continuous Operate Ice Cream Cone Baking Machine Temperature Control Freely
Continuous Operate Ice Cream Cone Baking Machine Temperature Control Freely
Product Details:
Place of Origin: China
Brand Name: GongHeXiang
Certification: ISO
Model Number: SD80-45x2
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Name: Ice Cream Cone Baking Machine Voltage: 380V
Input Power: 3.37kw Operate: Continuous Operate
Net Weight: 5000Kg Advantage: Temperature Control Freely
Automatic: Full-automatic Warranty: One Year
High Light:

sugar cone baking machine

,

auto cone machine

Continuous Operate Ice Cream Cone Baking Machine Temperature Control Freely



Ice Cream Cone Baking Machine Advantages:



1.Continuous automatic filling material.

2.Temperature control freely.

3.Eggs cone look beautiful, the entrance of crisp,

4.making simple investment, high returns.

5.semi-Automatic ice cream waffle cone is the most popular current food.

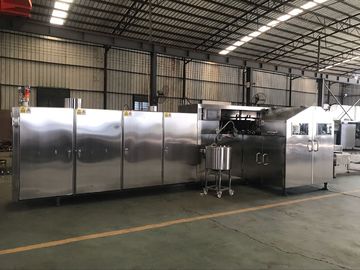

Ice Cream Cone Baking Machine Working Principle

The whole machine is controlled by Schneider PLC, operated by the main motor, roller , solenoid valve and air fan, the baking plate of the machine is heated, after it shows about 180℃, the mixed batter will be pumped in a certain adjusted amount to the baking plate by the discharging pump, and automatically close the baking plate. The pastry is adjusted in a certain thickness, then the driving wheel drives baking plate into the oven from the upper and lower fire flame nozzle, after baking, the mixed batter has become a pastry, the machine hand accurately put the pastry into the roll mold to form finished product, after de-moulding, the finished product is sent out.



Ice Cream Cone Baking Machine Parameters



Name SD80-45x2 Continuous Operate Ice Cream Cone Baking Machine Temperature Control Freely
Voltage 380v Product size 120mm
Total power 3.37kw Output/hour 4000-5000pcs/h
LPG consumption 8-10kg/h Electrical accessories Schneider
Machine dimension L8.7xW2.1xH2 M PLC controller Schneider





Our Services


♥. Pre-sale-service:Design and manufacture machines for you as your special requirement, provide you with project, process design and pruchase program.



♥. On-sale-service: Accompany with you to look around our factory, explain the manufacture process of our machines and check the working performance of our machine.



♥. After-sale-service: Engineers are available to install debugging equipments of the whole production line, besides, commissioning and training operators on site.



After Sale Service



1. Warranty policy one year from shipment

2. We will send you the replacement after received the broken part

3. Evaluate the customs rish and choose safest shipping company before shipping.



4. Follow status up time by time until the goods arrived.

Company Profile



      Guangzhou Jianxiang Machinery Co., Ltd. has more than 20 years of experience in the production of mechanical products. Now the company has strong technical force, advanced equipment and normative management after many years of struggle and technology accumulation. Our business partner Guangzhou GongHeXiang Machinery Co., Ltd, is the most famous automatic sugar cone baking machine manufacturer in China. The sugar cone baking machine and batter mixer we produce for GongHeXiang had been sold to over 20 provinces in China and exported to many oversea countries like Russia, Kyrgyzstan, Uzbekistan, Turkey, Argentina, Vietnam, Syria, French Polynesia, Egypt, Peru, India etc.



In order to meet market needs and customer’s demand, besides the most regular TT25 sugar cone baking machine, we developed new model TT25-40, TT25-36 and TT25-30 of the TT25 series. TT26 series are electric baking machine which include model TT26-45, TT26-40, TT26-36 and TT26-30. SD80 series are the most advanced caterpillar track type baking machine, which include model SD80-37x2 and model SD80-53x2.



Different machine can meet your different requirement for sugar cone size and your demand for production capacity. After so many years of development, our company had truly become the most professional sugar cone baking machine manufacturer in China.



Customer first, quality first and user-oriented is key to our service. Our company always provide customer with high quality product and good service and we will constantly strive for excellence. We believe our reasonable offer and thoughtful after-sales service can allow users achieve a real “buy peace of mind was at ease with”. We warmly welcome both new and current customer to call for further inquiry or to come and discuss cooperation.
