Practical Ice Cream Cone Sleeve Machine , Auto Cone Machine Convenient

Practical Ice Cream Cone Sleeve Machine , Auto Cone Machine Convenient

  • Practical Ice Cream Cone Sleeve Machine , Auto Cone Machine Convenient
Practical Ice Cream Cone Sleeve Machine , Auto Cone Machine Convenient
Product Details:
Place of Origin: China
Brand Name: GongHeXiang
Certification: ISO
Model Number: SD80-45x2
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Type: Ice Cream Cone Sleeve Machine Voltage: 380V
Input Power: 3.37kw LPG Consumption: 8-10kg/h
Capacity: 4000-5000pcs/h Net Weight: 5000Kg
Feature: Convenient Warranty: One Year
High Light:

sugar cone baking machine

,

auto cone machine

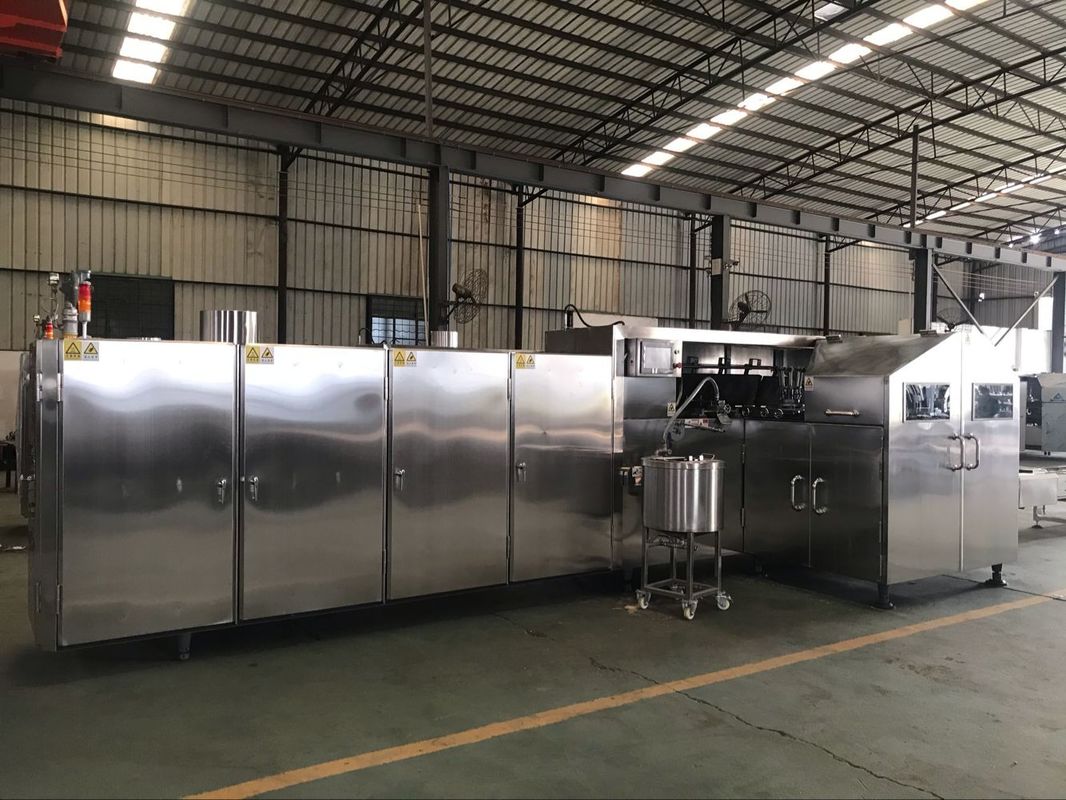

Practical Ice Cream Cone Sleeve Machine , Auto Cone Machine Convenient

Ice Cream Cone Sleeve Machine Structure

The semi automatic sugar cone making machine is composed of working table, rolling mould, transmission system and operating system.
1. Working Table: squareness shape with stainless steel protection. Welding frame component includes transmission system, bearing seat connecting with frame.
2. Rolling mould is composed of rolling head, shell, axle and bracket. Rolling power will be transmitted by gear system.
3. Transmission system includes motor, retarder, gemel , cam and so on.
4. Rolling parts controlled under rolling machine panel with the same controlling box as waffle maker.. One motor is controlled by switch. Temperature controlling can master preheating system.
Ice Cream Cone Sleeve Machine Advantage

  1. Durable innoxious cone mould as per sanitation standard
  2. Temperature adjustable
  3. High-efficient heating element ensures ideal production ability.
  4. Different types of moulds according to your choice.
  5. A relay unit controls baking time.

Ice Cream Cone Sleeve Machine Parameters


NameSD80-45x2 Ice Cream Cone Sleeve Machine
Voltage380vProduct size120mm
Total power3.37kwOutput/hour4000-5000pcs/h
LPG consumption8-10kg/hElectrical accessoriesSchneider
Machine dimensionL8.7xW2.1xH2 MPLC controllerSchneider
Net weight50000kgControllerSchneider



FAQ

1. Ask:What is your guarantee of machine ?
Answer:usually our guarantee is 1 years.
2. Can you arrange your technicians to install the machine for us?
Answer:Yes,We will assign our engineers to go abroad for installing machines for our users.
3. Ask:About the machine voltage or power of machine ?
Answer:Usually in our country is 220v,50hz, single phase,or 380v,50hz,3 phase.if you have the special requirement,pls tell us, we will vetify the voltage according to your requirement.
4. Ask:how to install the machine ?
Answer:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .

Company Profile

      Guangzhou Jianxiang Machinery Co., Ltd. has more than 20 years of experience in the production of mechanical products. Now the company has strong technical force, advanced equipment and normative management after many years of struggle and technology accumulation. Our business partner Guangzhou GongHeXiang Machinery Co., Ltd, is the most famous automatic sugar cone baking machine manufacturer in China. The sugar cone baking machine and batter mixer we produce for GongHeXiang had been sold to over 20 provinces in China and exported to many oversea countries like Russia, Kyrgyzstan, Uzbekistan, Turkey, Argentina, Vietnam, Syria, French Polynesia, Egypt, Peru, India etc.

In order to meet market needs and customer’s demand, besides the most regular TT25 sugar cone baking machine, we developed new model TT25-40, TT25-36 and TT25-30 of the TT25 series. TT26 series are electric baking machine which include model TT26-45, TT26-40, TT26-36 and TT26-30. SD80 series are the most advanced caterpillar track type baking machine, which include model SD80-37x2 and model SD80-53x2.
